| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | 2,82 kg |
| Dimensions (L x W x H) | not available |
| Country of origin** | CN🇨🇳 |
| Customs goods number | 84122180 |
| GTIN | On request |
| RoHS compliant | On request |
| Manufacturer | Enerpac |
| Dimension | Value |
|---|---|
| type | Hydraulic cylinders |
| Subtypes | Hollow piston cylinder |
| Series | RCH |
| Maximum operating pressure in bar | 700 |
| Maximum operating pressure in psi | 10,000 |
| Stroke range (inches) | 1.0 - 1.99 |
| Capacity class (inches tons) | 12 |
| Stroke range (mm) | 24 - 47 |
| Maximum operating pressure (psi) | 10,000 |
| Cylinder effective area Advance (inches3) | 2.76 |
| Oil Capacity Progress (inch3) | 4.49 |
| Maximum storage capacity (short tons) | 13.8 |
| Return type | Single-acting, spring return |
| Material | Steel |
| Piston Type | Hollow piston |
| Maximum cylinder force pressure (kN) | 125 |
| Effective piston area pressure (cm2) | 17,9 |
| Floor fastening screws thread V | - |
| Surface treatment | Paint |
| Oil capacity feed (cm3) | 75 |
| Coupler | AR630 Coupler |

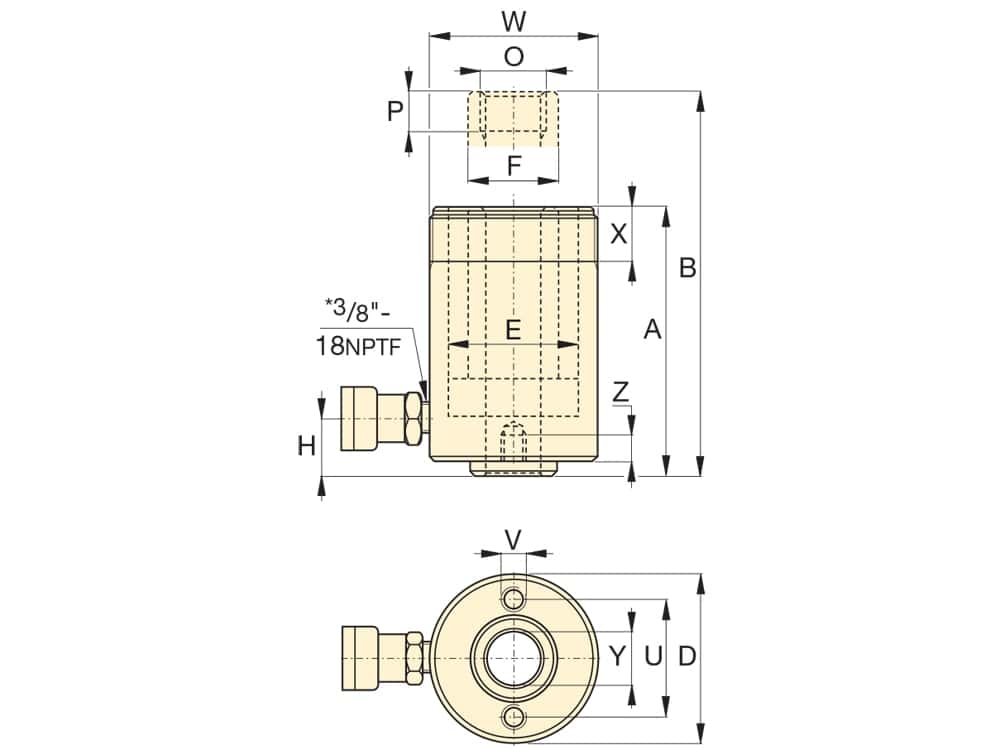

| Collar Thread Length X mm | 30 |
| Center hole diameter Y mm | 19,5 |
| Construction height extended B (mm) | 162 |
| Base mounting holes thread depth Z mm | - |
| Center hole diameter Y | 0.77 |
| Construction height extended B (inches) | 6.38 |
| Thread depth of base mounting holes Zin | - |
| Construction height retracted A (inches) | 4.75 |
| Outside diameter D (inches) | 2.75 |
| Plunger internal thread in O in | 3/4" - 16 un |
| Cylinder bore diameter E (mm) | 54,1 |
| Retracted height A (mm) | 120 |
| Base mounting holes thread | - |
| Collar Thread Wmm | 2 3/4" - 16 |
| Cylinder bore diameter E (inches) | 2.13 |
| CollarThreadWin | 2 3/4" - 16 |
| Plunger internal thread | 3/4" - 16 un |
| Base for feed connection H (inches) | 0.98 |
| Outside diameter D (mm) | 69 |
| Construction height retracted (inches) | 0 - 4.99 |
| Plunger thread length pin | 0.63 |
| Piston rod diameter F (inches) | 1.38 |
| Base mounting holes bolt circle Uin | - |
| Construction height retracted (mm) | 0 - 127 |
| Plunger thread length in mm | 16 |
| Collar Thread Length X in | 1.19 |
| Piston rod diameter F (mm) | 35,1 |
| Base mounting holes bolt circle Umm | - |
| Base for feed connection H (mm) | 25 |
excl. VAT
|will be calculated in cart
Product | Details | Base for feed connection H (inches) | Base for feed connection H (mm) | Base mounting holes bolt circle Uin | Base mounting holes bolt circle Umm | Base mounting holes thread | Base mounting holes thread depth Z mm | Capacity class (inches tons) | Center hole diameter Y | Center hole diameter Y mm | Collar Thread Length X in | Collar Thread Length X mm | Collar Thread Wmm | CollarThreadWin | Construction height extended B (inches) | Construction height extended B (mm) | Construction height retracted (inches) | Construction height retracted (mm) | Construction height retracted A (inches) | Coupler | Cylinder bore diameter E (inches) | Cylinder bore diameter E (mm) | Cylinder effective area Advance (inches3) | Effective piston area pressure (cm2) | Floor fastening screws thread V | Material | Maximum cylinder force pressure (kN) | Maximum operating pressure (psi) | Maximum operating pressure in bar | Maximum operating pressure in psi | Maximum storage capacity (short tons) | Oil capacity feed (cm3) | Oil Capacity Progress (inch3) | Outside diameter D (inches) | Outside diameter D (mm) | Piston rod diameter F (inches) | Piston rod diameter F (mm) | Piston Type | Plunger internal thread | Plunger internal thread in O in | Plunger thread length in mm | Plunger thread length pin | Retracted height A (mm) | Return type | Saddle diameter (mm) | Saddle Diameter J1 mm | Saddle Diameter Jin | Saddle overhang from piston K (inches) | Saddle overhang from piston K (mm) | Saddle overhang from piston K1 (mm) | Series | Stroke range (inches) | Stroke range (mm) | Subtypes | Surface treatment | Thread depth of base mounting holes Zin | type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RCH120 | Hollow piston cylinder | 0.38 | 9 | 2.00 | 50,8 | 5/16"-18 unc | 9,0 | 12 | 0.77 | 19,5 | 1.19 | 30 | 2 3/4" - 16 | 2 3/4" - 16 | 2.5 | 63 | 0 - 4.99 | 0 - 127 | 2.19 | AR630 Coupler | 2.13 | 54,1 | 2.76 | 17,9 | 5/16"-18 unc | Steel | 125 | 10,000 | 700 | 10,000 | 13.8 | 14 | 0.86 | 2.75 | 69 | 1.38 | 35,1 | Hollow piston | 3/4" - 16 un | 3/4" - 16 un | 16 | 0.63 | 55 | Single-acting, spring return | - | - | - | - | - | - | RCH | 0 - 0.99 | 0 - 23 | Hollow piston cylinder | Paint | 0.35 | Hydraulic cylinders |
| RCH121 | Hollow piston cylinder | 0.98 | 25 | - | - | - | - | 12 | 0.77 | 19,5 | 1.19 | 30 | 2 3/4" - 16 | 2 3/4" - 16 | 6.38 | 162 | 0 - 4.99 | 0 - 127 | 4.75 | AR630 Coupler | 2.13 | 54,1 | 2.76 | 17,9 | - | Steel | 125 | 10,000 | 700 | 10,000 | 13.8 | 75 | 4.49 | 2.75 | 69 | 1.38 | 35,1 | Hollow piston | - | - | - | - | 120 | Single-acting, spring return | - | - | - | - | - | - | RCH | 1.0 - 1.99 | 24 - 47 | Hollow piston cylinder | Paint | - | Hydraulic cylinders |
| RCH1211 | Hollow piston cylinder | 0.98 | 25 | - | - | - | - | 12 | 0.77 | 19,5 | 1.19 | 30 | 2 3/4" - 16 | 2 3/4" - 16 | 6.38 | 162 | 0 - 4.99 | 0 - 127 | 4.75 | AR630 Coupler | 2.13 | 54,1 | 2.76 | 17,9 | - | Steel | 125 | 10,000 | 700 | 10,000 | 13.8 | 75 | 4.49 | 2.75 | 69 | 1.38 | 35,1 | Hollow piston | 3/4" - 16 un | 3/4" - 16 un | 16 | 0.63 | 120 | Single-acting, spring return | - | - | - | - | - | - | RCH | 1.0 - 1.99 | 24 - 47 | Hollow piston cylinder | Paint | - | Hydraulic cylinders |
| RCH123 | Hollow piston cylinder | 0.98 | 25 | 2.00 | 50,8 | 5/16"-18 unc | 12,7 | 12 | 0.77 | 19,5 | 1.19 | 30 | 2 3/4" - 16 | 2 3/4" - 16 | 10.25 | 260 | 5.0 - 9.99 | 128 - 254 | 7.25 | CR400 Coupler | 2.13 | 54,1 | 2.76 | 17,9 | 5/16"-18 unc | Steel | 125 | 10,000 | 700 | 10,000 | 13.8 | 136 | 8.29 | 2.75 | 69 | 1.38 | 35,1 | Hollow piston | - | - | - | - | 184 | Single-acting, spring return | - | - | - | - | - | - | RCH | 3.0 - 4.49 | 48 - 94 | Hollow piston cylinder | Paint | 0.50 | Hydraulic cylinders |
| RCH202 | Hollow piston cylinder | 0.75 | 19 | 3.25 | 82,6 | 3/8"-16 unc | 9,4 | 20 | 1.06 | 26,9 | 1.5 | 38 | 2 7/8" - 12 | 3 7/8" - 12 un | 8.38 | 211 | 5.0 - 9.99 | 128 - 254 | 6.38 | CR400 Coupler | 2.88 | 73,1 | 4.72 | 30,7 | 3/8"-16 unc | Steel | 215 | 10,000 | 700 | 10,000 | 23.6 | 150 | 9.46 | 3.88 | 98 | 2.13 | 54,1 | Hollow piston | 1 9/16" - 16 un | 1 9/16" - 16 un | 19 | 0.75 | 162 | Single-acting, spring return | 54 | 54 | 2.13 | 0.27 | 9,7 | 9,7 | RCH | 2.0 - 2.99 | 48 - 94 | Hollow piston cylinder | Paint | 0.37 | Hydraulic cylinders |
| RCH206 | Hollow piston cylinder | 0.75 | 25 | 3.25 | 82,6 | 3/8"-16 unc | 9,4 | 20 | 1.06 | 26,9 | 1.5 | 38 | 2 7/8" - 12 | 3 7/8" - 12 un | 18.11 | 461 | 10.0 - 14.99 | 255 - 381 | 12.05 | CR400 Coupler | 2.88 | 73,1 | 4.72 | 30,7 | 3/8"-16 unc | Steel | 215 | 10,000 | 700 | 10,000 | 23.6 | 476 | 28.67 | 3.88 | 98 | 2.13 | 54,1 | Hollow piston | 1 9/16" - 16 un | 1 9/16" - 16 un | 19 | 0.75 | 306 | Single-acting, spring return | 54 | 54 | 2.13 | 0.27 | 9,7 | 9,7 | RCH | 4.5 - 6.99 | 120 - 174 | Hollow piston cylinder | Paint | 0.37 | Hydraulic cylinders |
| RCH302 | Hollow piston cylinder | 0.85 | 21 | 3.63 | 92,2 | 3/8"-16 unc | 14,0 | 30 | 1.31 | 33,3 | 1.66 | 42 | 4 1/2" - 12 | 4 1/2" - 12 | 9.53 | 242 | 5.0 - 9.99 | 128 - 254 | 7.03 | CR400 Coupler | 3.5 | 88,9 | 7.22 | 46,6 | 3/8"-16 unc | Steel | 326 | 10,000 | 700 | 10,000 | 36.1 | 298 | 18.05 | 4.5 | 114 | 2.5 | 63,5 | Hollow piston | 1 13/16" - 16 un | 1 13/16" - 16 un | 22 | 0.88 | 178 | Single-acting, spring return | 63 | 63 | 2.5 | 0.38 | 9,0 | 9,0 | RCH | 2.0 - 2.99 | 48 - 94 | Hollow piston cylinder | Paint | 0.55 | Hydraulic cylinders |
| RCH306 | Hollow piston cylinder | 1 | 25 | 3.63 | 92,2 | 3/8"-16 unc | 14,0 | 30 | 1.31 | 33,3 | 1.66 | 42 | 4 1/2" - 12 | 4 1/2" - 12 | 19.13 | 485 | 10.0 - 14.99 | 255 - 381 | 13 | CR400 Coupler | 3.5 | 88,9 | 7.22 | 46,6 | 3/8"-16 unc | Steel | 326 | 10,000 | 700 | 10,000 | 36.1 | 722 | 44.23 | 4.5 | 114 | 2.5 | 63,5 | Hollow piston | 1 13/16" - 16 un | 1 13/16" - 16 un | 22 | 0.88 | 330 | Single-acting, spring return | 63 | 63 | 2.5 | 0.38 | 9,0 | 9,0 | RCH | 4.5 - 6.99 | 120 - 174 | Hollow piston cylinder | Paint | 0.55 | Hydraulic cylinders |
| RCH603 | Hollow piston cylinder | 1.25 | 31 | 5.13 | 130,3 | 1/2"-13 unc | 14,0 | 60 | 2.12 | 53,8 | 1.91 | 48 | 6 1/4" - 12 | 6 1/4" - 12 | 12.75 | 323 | 5.0 - 9.99 | 128 - 254 | 9.75 | CR400 Coupler | 4.88 | 123,9 | 12.73 | 82,3 | 1/2"-13 unc | Steel | 576 | 10,000 | 700 | 10,000 | 63.6 | 626 | 38.2 | 6.25 | 159 | 3.63 | 91,9 | Hollow piston | 2 3/4" - 16 un | 2 3/4" - 16 un | 19 | 0.75 | 247 | Single-acting, spring return | 91 | 91 | 3.61 | 0.5 | 12,0 | 12,0 | RCH | 3.0 - 4.49 | 48 - 94 | Hollow piston cylinder | Paint | 0.55 | Hydraulic cylinders |
| RCH606 | Hollow piston cylinder | 1.25 | 31 | 5.13 | 130,3 | 1/2"-13 unc | 14,0 | 60 | 2.12 | 53,8 | 1.91 | 48 | 6 1/4" - 12 | 6 1/4" - 12 | 18.75 | 476 | 10.0 - 14.99 | 255 - 381 | 12.75 | CR400 Coupler | 4.88 | 123,9 | 12.73 | 82,3 | 1/2"-13 unc | Steel | 576 | 10,000 | 700 | 10,000 | 63.6 | 1259 | 76.41 | 6.25 | 159 | 3.63 | 91,9 | Hollow piston | 2 3/4" - 16 un | 2 3/4" - 16 un | 19 | 0.75 | 323 | Single-acting, spring return | 91 | 91 | 3.61 | 0.5 | 12,0 | 12,0 | RCH | 4.5 - 6.99 | 120 - 174 | Hollow piston cylinder | Paint | 0.55 | Hydraulic cylinders |
| RCH1003 | Hollow piston cylinder | 1.5 | 38 | 7.00 | 177,8 | 5/8"-11 unc | 19,0 | 100 | 3.11 | 79,0 | 2.38 | 60 | 8 3/8" - 12 | 8 3/8" - 12 | 13 | 330 | 10.0 - 14.99 | 255 - 381 | 10 | CR400 Coupler | 6.5 | 165,1 | 20.63 | 133,0 | 5/8"-11 unc | Steel | 931 | 10,000 | 700 | 10,000 | 103.1 | 1011 | 61.88 | 8.38 | 212 | 5 | 127,0 | Hollow piston | 4" - 16 un | 4" - 16 un | 25 | 1 | 254 | Single-acting, spring return | 126 | 126 | 4.97 | 0.5 | 12,0 | 12,0 | RCH | 3.0 - 4.49 | 48 - 94 | Hollow piston cylinder | Paint | 0.75 | Hydraulic cylinders |
