| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | not available |
| Dimensions (L x W x H) | 275 cm x 100 cm x 60 cm |
| Country of origin** | DE🇩🇪 |
| Customs goods number | 84811005 |
| GTIN | 3661475869508 |
| RoHS compliant | On request |
| Manufacturer | Aventics |
Access to the official manufacturer catalog for compatible spare parts and repair kits.
| Dimension | Value |
|---|---|

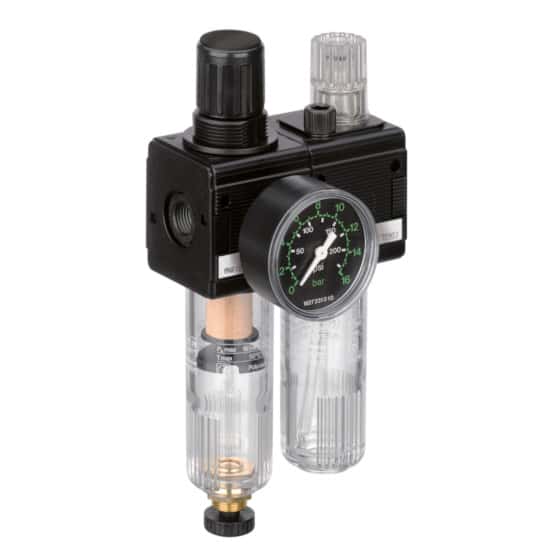

| Components | Maintenance units, Filter pressure control valve, Oiler |
| Container | Container PC with metal protective basket |
| Connection | G 1/4 |
| Rated flow Qn | 1100 l/min |
| Filter pore size | 5 µm |
| Condensate drain | Fully automatic, pressureless open |
| Pressure gauge | with pressure gauge |
| Operating pressure min. | 2 bar |
| Maximum operating pressure | 16 bar |
| Minimum ambient temperature | -10 °C |
| Maximum ambient temperature | 60 °C |
| Minimum pressure control range | 0.5 bar |
| Maximum pressure regulation range | 10 bar |
| Design | 2-part |
| Design | blockable |
| Pressure supply | one-sided |
| Installation position | Vertical |
| Controller type | Diaphragm pressure control valves |
| Control function | With secondary ventilation |
| Filter element | Interchangeable |
| Container volume filter | 25 cm³ |
| Max. achievable compressed air class according to ISO 8573-1:2010 | 6 : 7 : - |
| Oil container volume | 50 cm³ |
| Filling method | Manual oil filling |
| Oil dosing at 1000 l/min | 1-2 drops |
excl. VAT
|will be calculated in cart
Product | Details | Activation | Actuating element | Actuation | blockable | Components | Compressed air connection | Compressed air connection, venting | Condensate drain | Connection | Container | Container volume filter | Control function | Controller type | DC power consumption | Design | Druckluftanschluss | Duty cycle | Electrical connector Type 2 | Filling method | Filter element | Filter pore size | Fluss L M | Holding power AC 50 Hz | Housing material | Industrie | Installation position | Material actuating element | Material front cover | Material front panel | Material seals | Material threaded bushing | Max. achievable compressed air class according to ISO 8573-1:2010 | Max. Betriebsdruck | Max. particle size | Maximum ambient temperature | Maximum control pressure | Maximum medium temperature | Maximum operating pressure | Maximum pressure regulation range | Medium | Medium temperature min. | Minimum ambient temperature | Minimum control pressure | Minimum pressure control range | Nominal flow rate 1 ▶ 5 | Nominal flow rate 1 ▶ 6 | Oil container volume | Oil dosing at 1000 l/min | Operating pressure min. | Operating voltage AC at 50 Hz | Operating voltage AC at 60 Hz | Operating voltage DC | Pre-control | Pressure gauge | Pressure supply | Protection rating with connection | Rated flow 1 ▶ 3 | Rated flow Qn | Rated flow Qn 1 to 2 | Rated flow Qn 1 to 4 | Rated flow Qn 2 to 3 | Reverse polarity protection | Sealing principle | Standard electrical connection | Switching power AC 50 Hz | Type of closure | Type of connection | Version | Wartungseinheit Teile | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0821300400 | Maintenance unit 2-part Series NL2-ACD 0821300400 NL2-ACD-G014-GAU-100-PNB-HO-05,00 | - | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 50 cm³ | 1-2 drops | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1100 l/min | - | - | - | - | - | - | - | - | - | - | - | - |
| 0821300403 | Maintenance unit 2-part Series NL2-ACD 0821300403 NL2-ACD-G014-GAU-100-PNB-AO-05,00 | - | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 50 cm³ | 1-2 drops | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1100 l/min | - | - | - | - | - | - | - | - | - | - | - | - |
| 0821300401 | Maintenance unit 2-part Series NL2-ACD 0821300401 NL2-ACD-G014-GAU-100-PBS-HO-05,00 | - | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC with metal protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 50 cm³ | 1-2 drops | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1100 l/min | - | - | - | - | - | - | - | - | - | - | - | - |
| 0821300404 | Maintenance unit 2-part Series NL2-ACD 0821300404 NL2-ACD-G014-GAU-100-PBS-AO-05,00 | - | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Fully automatic, pressureless open | G 1/4 | Container PC with metal protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 50 cm³ | 1-2 drops | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1100 l/min | - | - | - | - | - | - | - | - | - | - | - | - |
| 0821300402 | Maintenance unit 2-part Series NL2-ACD 0821300402 NL2-ACD-G014-GAU-100-SSS-HO-05,00 | - | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 1/4 | Metal container with sight glass | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 50 cm³ | 1-2 drops | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1100 l/min | - | - | - | - | - | - | - | - | - | - | - | - |
| 0821300405 | Maintenance unit 2-part Series NL2-ACD 0821300405 NL2-ACD-G014-GAU-100-SSS-AO-05,00 | - | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Fully automatic, pressureless open | G 1/4 | Metal container with sight glass | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 50 cm³ | 1-2 drops | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1100 l/min | - | - | - | - | - | - | - | - | - | - | - | - |
| 0821300430 | Maintenance unit 2-part Series NL2-ACD 0821300430 NL2-ACD-G038-GAU-100-PNB-HO-05,00 | - | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 3/8 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 50 cm³ | 1-2 drops | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1100 l/min | - | - | - | - | - | - | - | - | - | - | - | - |
| 0821300433 | Maintenance unit 2-part Series NL2-ACD 0821300433 NL2-ACD-G038-GAU-100-PNB-AO-05,00 | - | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Fully automatic, pressureless open | G 3/8 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 50 cm³ | 1-2 drops | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1100 l/min | - | - | - | - | - | - | - | - | - | - | - | - |
| 0821300431 | Maintenance unit 2-part Series NL2-ACD 0821300431 NL2-ACD-G038-GAU-100-PBS-HO-05,00 | - | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 3/8 | Container PC with metal protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 50 cm³ | 1-2 drops | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1100 l/min | - | - | - | - | - | - | - | - | - | - | - | - |
| 0821300432 | Maintenance unit 2-part Series NL2-ACD 0821300432 NL2-ACD-G038-GAU-100-SSS-HO-05,00 | - | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 3/8 | Metal container with sight glass | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 50 cm³ | 1-2 drops | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1100 l/min | - | - | - | - | - | - | - | - | - | - | - | - |
| 0821300316 | Filter pressure regulating valve Series NL2-FRE 0821300316 NL2-FRE-G014-GAN-100-PNB-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | Without pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.542 kg |
| 0821300275 | Filter pressure regulating valve Series NL2-FRE 0821300275 NL2-FRE-G014-GAN-010-SSS-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Metal container with sight glass | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | Without pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.717 kg |
| 0821300347 | Filter pressure regulating valve Series NL2-FRE 0821300347 NL2-FRE-G014-GAN-100-PNB-AO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | Without pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.57 kg |
| 0821300343 | Filter pressure regulating valve Series NL2-FRE 0821300343 NL2-FRE-G038-GAN-100-PNB-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 3/8 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | Without pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.542 kg |
| 0821300300 | Filter pressure regulating valve Series NL2-FRE 0821300300 NL2-FRE-G014-GAU-100-PNB-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.542 kg |
| 0821300301 | Filter pressure regulating valve Series NL2-FRE 0821300301 NL2-FRE-G014-GAU-100-PBS-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC with metal protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.542 kg |
| 0821300302 | Filter pressure regulating valve Series NL2-FRE 0821300302 NL2-FRE-G014-GAU-100-SSS-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Metal container with sight glass | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.717 kg |
| 0821300303 | Filter pressure regulating valve Series NL2-FRE 0821300303 NL2-FRE-G014-GAU-100-PNB-AO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.57 kg |
| 0821300304 | Filter pressure regulating valve Series NL2-FRE 0821300304 NL2-FRE-G014-GAU-100-PBS-AO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC with metal protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.612 kg |
| 0821300305 | Filter pressure regulating valve Series NL2-FRE 0821300305 NL2-FRE-G014-GAU-100-SSS-AO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Metal container with sight glass | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.749 kg |
| 0821300307 | Filter pressure regulating valve Series NL2-FRE 0821300307 NL2-FRE-G014-GAU-030-PNB-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 3 bar | Compressed air, neutral gases | - | -10 °C | - | 0.1 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.542 kg |
| 0821300308 | Filter pressure regulating valve Series NL2-FRE 0821300308 NL2-FRE-G014-GAU-060-PNB-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 6 bar | Compressed air, neutral gases | - | -10 °C | - | 0.2 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.542 kg |
| 0821300330 | Filter pressure regulating valve Series NL2-FRE 0821300330 NL2-FRE-G038-GAU-100-PNB-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 3/8 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.542 kg |
| 0821300331 | Filter pressure regulating valve Series NL2-FRE 0821300331 NL2-FRE-G038-GAU-100-PBS-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 3/8 | Container PC with metal protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.583 kg |
| 0821300332 | Filter pressure regulating valve Series NL2-FRE 0821300332 NL2-FRE-G038-GAU-100-SSS-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 3/8 | Metal container with sight glass | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.717 kg |
| 0821300333 | Filter pressure regulating valve Series NL2-FRE 0821300333 NL2-FRE-G038-GAU-100-PNB-AO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 3/8 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.57 kg |
| 0821300334 | Filter pressure regulating valve Series NL2-FRE 0821300334 NL2-FRE-G038-GAU-100-PBS-AO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 3/8 | Container PC with metal protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.612 kg |
| 0821300335 | Filter pressure regulating valve Series NL2-FRE 0821300335 NL2-FRE-G038-GAU-100-SSS-AO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 3/8 | Metal container with sight glass | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | Zinc die casting | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | - | - | - | - | 0.749 kg |
| 0821300306 | Filter pressure regulating valve Series NL2-FRE 0821300306 NL2-FRE-G014-GAU-100-PNB-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | - | 0.6 kg |
| 0821300220 | Filter pressure regulating valve Series NL2-FRE 0821300220 NL2-FRE-G014-GAU-100-PBS-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC with metal protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | - | 0.641 kg |
| 0821300221 | Filter pressure regulating valve Series NL2-FRE 0821300221 NL2-FRE-G014-GAU-100-SSS-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Metal container with sight glass | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | - | 0.775 kg |
| 0821300312 | Filter pressure regulating valve Series NL2-FRE 0821300312 NL2-FRE-G014-GAU-100-PNB-AO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | - | 0.628 kg |
| 0821300222 | Filter pressure regulating valve Series NL2-FRE 0821300222 NL2-FRE-G014-GAU-100-PBS-AO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC with metal protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | - | 0.67 kg |
| 0821300336 | Filter pressure regulating valve Series NL2-FRE 0821300336 NL2-FRE-G038-GAU-100-PNB-HO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 3/8 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | - | 0.6 kg |
| 0821300226 | Filter pressure regulating valve Series NL2-FRE 0821300226 NL2-FRE-G038-GAU-010-PNB-AO-05,00 | - | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 3/8 | Container PC without protective basket | 25 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | - | Interchangeable | 5 µm | - | - | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | - | 2 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 1650 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | - | 0.628 kg |
| 0821300920 | Distributor Series NL2-DIL 0821300920 NL2-DIL-G014-NC4 | - | - | - | - | Distributor | - | - | - | G 1/4 | - | - | - | - | - | Distributor narrow | - | - | - | - | - | - | - | - | Zinc die casting | - | Arbitrary | - | - | Acrylonitrile butadiene styrene | - | - | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | 2000 l/min | 900 l/min | - | - | 0 bar | - | - | - | - | - | - | - | 2700 l/min | - | 2700 l/min | 900 l/min | - | - | - | - | - | - | - | Distributor 4-way | - | 0.25 kg |
| 0821300907 | Distributor Series NL2-DIS 0821300907 NL2-DIS-G014-NC4 | - | - | - | - | Distributor | - | - | - | G 1/4 | - | - | - | - | - | Distributor | - | - | - | - | - | - | - | - | Zinc die casting | - | Arbitrary | - | - | Acrylonitrile butadiene styrene | - | - | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | 2000 l/min | 900 l/min | - | - | 0 bar | - | - | - | - | - | - | - | 2000 l/min | - | 2500 l/min | 900 l/min | - | - | - | - | - | - | - | Distributor 4-way | - | 0.33 kg |
| 0821300909 | Distributor Series NL2-DIS 0821300909 NL2-DIS-G038-NC4 | - | - | - | - | Distributor | - | - | - | G 3/8 | - | - | - | - | - | Distributor | - | - | - | - | - | - | - | - | Zinc die casting | - | Arbitrary | - | - | Acrylonitrile butadiene styrene | - | - | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | 2000 l/min | 900 l/min | - | - | 0 bar | - | - | - | - | - | - | - | 2000 l/min | - | 2500 l/min | 900 l/min | - | - | - | - | - | - | - | Distributor 4-way | - | 0.33 kg |
| 0821300904 | Distributor Series NL2-DIN 0821300904 NL2-DIN-G014-NC4 | - | - | - | - | Distributor | - | - | - | G 1/4 | - | - | - | - | - | Check valve | - | - | - | - | - | - | - | - | Zinc die casting | - | Arbitrary | - | - | Acrylonitrile butadiene styrene | Acrylonitrile butadiene rubber | - | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | 675 l/min | 450 l/min | - | - | 0.1 bar | - | - | - | - | - | - | - | 675 l/min | - | 700 l/min | 450 l/min | - | - | - | - | - | - | - | Distributor 4-way | - | 0.33 kg |
| 0821300906 | Distributor Series NL2-DIN 0821300906 NL2-DIN-G038-NC4 | - | - | - | - | Distributor | - | - | - | G 3/8 | - | - | - | - | - | Check valve | - | - | - | - | - | - | - | - | Zinc die casting | - | Arbitrary | - | - | Acrylonitrile butadiene styrene | Acrylonitrile butadiene rubber | - | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | 675 l/min | 450 l/min | - | - | 0.1 bar | - | - | - | - | - | - | - | 675 l/min | - | 700 l/min | 450 l/min | - | - | - | - | - | - | - | Distributor 4-way | - | 0.33 kg |
| 0821300264 | Distributor Series NL2-DIC 0821300264 NL2-DIC-G014-NC2 | - | - | - | - | Distributor | - | - | - | G 1/4 | - | - | - | - | - | Center feed | - | - | - | - | - | - | - | - | Zinc die casting | - | Arbitrary | - | - | Acrylonitrile butadiene styrene | - | - | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | - | - | - | - | 0 bar | - | - | - | - | - | - | - | 2700 l/min | - | 2700 l/min | - | - | - | - | - | - | - | - | Distributor single | - | 0.593 kg |
| 0821300901 | 3/2 shut-off valve Mechanical Activated Series NL2-BAV 0821300901 NL2-BAV-G014-SOM-MAN-SS | - | Lever | Mechanical | - | Shut-off valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Ball valve | - | - | - | - | - | - | - | - | Zinc die casting | - | - | Polyoxymethylene | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | - | - | - | - | 60 °C | - | 60 °C | 16 bar | - | Compressed air, neutral gases | -10 °C | -10 °C | - | - | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 3000 l/min | 2800 l/min | - | 70 l/min | - | Metallically sealing | - | - | Lockable | - | - | - | 0.36 kg |
| 0821300903 | 3/2 shut-off valve Mechanical Activated Series NL2-BAV 0821300903 NL2-BAV-G038-SOM-MAN-SS | - | Lever | Mechanical | - | Shut-off valve | G 3/8 | G 1/4 | - | - | - | - | - | - | - | Ball valve | - | - | - | - | - | - | - | - | Zinc die casting | - | - | Polyoxymethylene | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | - | - | - | - | 60 °C | - | 60 °C | 16 bar | - | Compressed air, neutral gases | -10 °C | -10 °C | - | - | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 3000 l/min | 2800 l/min | - | 70 l/min | - | Metallically sealing | - | - | Lockable | - | - | - | 0.36 kg |
| 0821300921 | 3/2-way valve pneumatic Activated Series NL2-SOV 0821300921 NL2-SOV-G014-SOP-PNE-DS | pneumatic | - | - | - | - | - | - | - | - | - | - | - | - | - | - | G 1/4 | - | - | - | - | - | 1100 l/min | - | - | Industrie | - | - | - | - | - | - | - | 10 bar | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3/2-Wegeventil | - |
| 0821300922 | 3/2-way valve electric Activated Series NL2-SOV 0821300922 NL2-SOV-G014-SOE-024-DS | - | - | electric | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | 4.8 W | Seat valve | - | 100 % | Plug | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 5 µm | 60 °C | - | - | 10 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | - | - | - | - | 2.5 bar | - | - | 24 V | internal | - | - | IP65 | - | 1100 l/min | 1100 l/min | - | 450 l/min | Polarity safe | soft sealing | ISO 6952 | - | - | Pipe connection | - | - | - |
| 0821300923 | 3/2-way valve electric Activated Series NL2-SOV 0821300923 NL2-SOV-G014-SOE-230-DS | - | - | electric | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | 100 % | - | - | - | - | - | 8.5 VA | - | - | - | - | - | - | - | - | - | - | 5 µm | 60 °C | - | - | 10 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | - | - | - | - | 2.5 bar | 230 V | 230 V | - | internal | - | - | IP65 | - | 1100 l/min | 1100 l/min | - | 450 l/min | - | soft sealing | ISO 6952 | 11.8 VA | - | Pipe connection | - | - | - |
| 0821300926 | Filling valve pneumatic Activated Series NL2-SSV 0821300926 NL2-SSV-G014-FIA-MAN-SS | - | - | pneumatic | blockable | 3/2-way valve, filling valve | G 1/4 | - | - | - | - | - | - | - | - | Seat valve | - | - | - | - | - | - | - | - | Zinc die casting | - | - | - | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | Zinc die casting | - | - | 5 µm | 60 °C | 16 bar | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | 3 bar | - | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 1000 l/min | - | - | - | - | soft sealing | - | - | - | Pipe connection | - | - | 0.325 kg |
| 0821300925 | Filling valve pneumatic Activated Series NL2-SSV 0821300925 NL2-SSV-G014-FIR-MAN-SS | - | - | pneumatic | blockable | 3/2-way valve, filling valve | G 1/4 | - | - | - | - | - | - | - | - | Seat valve | - | - | - | - | - | - | - | - | Zinc die casting | - | - | - | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | Zinc die casting | - | - | 5 µm | 60 °C | 16 bar | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | 3 bar | - | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 1000 l/min | - | - | - | - | soft sealing | - | - | - | Pipe connection | - | - | 0.31 kg |
| 0821300941 | Filling unit electric Activated Series NL2-SSU 0821300941 NL2-SSU-G014-SOE-024-SS | - | - | electric | blockable | 3/2-way valve, filling valve | G 1/4 | G 1/4 | - | - | - | - | - | - | 4.8 W | Seat valve | - | 100 % | Plug | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 5 µm | 60 °C | - | - | 10 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | - | - | - | - | 3 bar | - | - | 24 V | internal | - | - | IP65 | - | 900 l/min | 900 l/min | - | 450 l/min | Polarity safe | soft sealing | ISO 6952 | - | - | Pipe connection | - | - | - |
| 0821300946 | Filling unit electric Activated Series NL2-SSU 0821300946 NL2-SSU-G014-SOE-024-SS | - | - | electric | blockable | 3/2-way valve, filling valve | G 1/4 | G 1/4 | - | - | - | - | - | - | 4.8 W | Seat valve | - | 100 % | Plug | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 5 µm | 60 °C | - | - | 10 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | - | - | - | - | 3 bar | - | - | 24 V | internal | - | - | IP65 | - | 900 l/min | 900 l/min | - | 450 l/min | Polarity safe | soft sealing | ISO 6952 | - | - | Pipe connection | - | - | - |
