| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | not available |
| Dimensions (L x W x H) | not available |
| Country of origin** | HU🇭🇺 |
| Customs goods number | 84812090 |
| GTIN | On request |
| RoHS compliant | On request |
| Manufacturer | Aventics |
Access to the official manufacturer catalog for compatible spare parts and repair kits.
| Dimension | Value |
|---|---|
| Actuation | electric |
| Rated flow Qn | 5000 l/min |

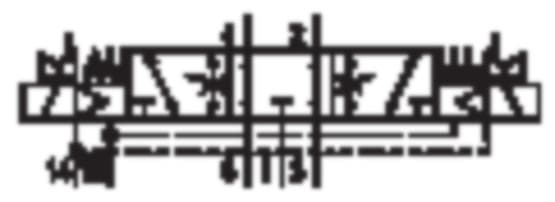

| Switching principle | 5/3, vented center position |
| Execution | Ventilated center position |
| Compressed air outlet | Base plate ISO 5599-1 |
| Operating pressure min. | -0.95 bar |
| Maximum operating pressure | 10 bar |
| Operating voltage DC | 24 V |
| Voltage tolerance DC | -10% / +10% |
| Manual auxiliary operation | Notched |
| Electrical connection type | Plug |
| Electrical connection size | M12 |
| Number of poles in electrical connection | 4-pole |
| Sealing principle | soft sealing |
| Pre-control | External |
| Standards | ISO 5599-1 |
| Pilot valve | 22 mm |
| Valve type | Slide valve |
| Blocking principle | Base plate principle single |
| Type of connection | Plate connection |
| Compressed air connection inlet | Base plate ISO 5599-1 |
| Compressed air connection, venting | Base plate ISO 5599-1 |
| Compressed air connection, pre-control, venting | M5 |
| DC power consumption | 0.35 W |
| Flow conductance C | 15.5 l/(s*bar) |
Product | Details | Actuation | Actuation function | Basic valve equipment | Blocking principle | Compressed air connection inlet | Compressed air connection, pre-control, venting | Compressed air connection, venting | Compressed air outlet | DC power consumption | Electrical connection size | Electrical connection type | Flow conductance C | Holding power AC 50 Hz | Holding power AC 60 Hz | Manual auxiliary operation | Maximum control pressure | Maximum operating pressure | Minimum control pressure | Operating pressure min. | Operating voltage AC at 50 Hz | Operating voltage AC at 60 Hz | Operating voltage DC | Pilot valve | Pre-control | Provision | Rated flow Qn | Sealing principle | Size | Standards | Switching power AC 50 Hz | Switching power AC 60 Hz | Switching principle | Throttle | Type of connection | Valve type | Voltage tolerance AC 50 Hz | Voltage tolerance AC 60 Hz | Voltage tolerance DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5814110500 | 5/2-way valve Series 581, Size 4 5814110500 V581-5/2SR-012DC-I4-1P22-HBX-AA-X-C-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 3 bar | - | - | 12 V | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814110200 | 5/2-way valve Series 581, Size 4 5814110200 V581-5/2SR-024AC-I4-1P22-HBX-AA-X-C-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | 8 VA | - | Notched | - | 10 bar | - | 3 bar | 24 V | - | - | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814110100 | 5/2-way valve Series 581, Size 4 5814110100 V581-5/2SR-024DC-I4-1P22-HBX-AA-X-C-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 3 bar | - | - | 24 V | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814110600 | 5/2-way valve Series 581, Size 4 5814110600 V581-5/2SR-048DC-I4-1P22-HBX-AA-X-C-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 3 bar | - | - | 48 V | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814110300 | 5/2-way valve Series 581, Size 4 5814110300 V581-5/2SR-110AC-I4-1P22-HBX-AA-X-C-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | - | 8 VA | Notched | - | 10 bar | - | 3 bar | - | 110 V | - | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | 10 VA | 5/2, with spring return | - | Plate connection | Slide valve | - | -10% / +10% | - |
| 5814110400 | 5/2-way valve Series 581, Size 4 5814110400 V581-5/2SR-230AC-I4-1P22-HBX-AA-X-C-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | 8 VA | - | Notched | - | 10 bar | - | 3 bar | 230 V | - | - | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814110000 | 5/2-way valve Series 581, Size 4 5814110000 V581-5/2SR-NONE-I4-1P22-HBX-AA-X-C-T0 | electric | Single-sided actuated | Base valve without coil | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | 3 bar | 3 bar | - | - | - | 22 mm | internal | With spring return | 6000 l/min | soft sealing | ISO 4 | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | - |
| 5814111500 | 5/2-way valve Series 581, Size 4 5814111500 V581-5/2SR-012DC-I4-1P22-HBX-AA-X-C-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 3 bar | - | - | 12 V | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814111200 | 5/2-way valve Series 581, Size 4 5814111200 V581-5/2SR-024AC-I4-1P22-HBX-AA-X-C-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | 8 VA | - | Notched | - | 10 bar | - | 3 bar | 24 V | - | - | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814111100 | 5/2-way valve Series 581, Size 4 5814111100 V581-5/2SR-024DC-I4-1P22-HBX-AA-X-C-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 3 bar | - | - | 24 V | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814111600 | 5/2-way valve Series 581, Size 4 5814111600 V581-5/2SR-048DC-I4-1P22-HBX-AA-X-C-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 3 bar | - | - | 48 V | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814111300 | 5/2-way valve Series 581, Size 4 5814111300 V581-5/2SR-110AC-I4-1P22-HBX-AA-X-C-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | - | 8 VA | Notched | - | 10 bar | - | 3 bar | - | 110 V | - | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | 10 VA | 5/2, with spring return | - | Plate connection | Slide valve | - | -10% / +10% | - |
| 5814111400 | 5/2-way valve Series 581, Size 4 5814111400 V581-5/2SR-230AC-I4-1P22-HBX-AA-X-C-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | 8 VA | - | Notched | - | 10 bar | - | 3 bar | 230 V | - | - | 22 mm | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814111000 | 5/2-way valve Series 581, Size 4 5814111000 V581-5/2SR-NONE-I4-1P22-HBX-AA-X-C-T1 | electric | Single-sided actuated | Base valve without coil | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 3 bar | - | - | - | 22 mm | internal | With spring return | 6000 l/min | soft sealing | ISO 4 | ISO 5599-1 | - | - | 5/2, with spring return | with throttle | Plate connection | Slide valve | - | - | - |
| 5814112500 | 5/2-way valve Series 581, Size 4 5814112500 V581-5/2SR-012DC-I4-1P22-HBX-AA-X-S-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | -0.95 bar | - | - | 12 V | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814112200 | 5/2-way valve Series 581, Size 4 5814112200 V581-5/2SR-024AC-I4-1P22-HBX-AA-X-S-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | 8 VA | - | Notched | - | 10 bar | - | -0.95 bar | 24 V | - | - | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814112100 | 5/2-way valve Series 581, Size 4 5814112100 V581-5/2SR-024DC-I4-1P22-HBX-AA-X-S-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | -0.95 bar | - | - | 24 V | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814112600 | 5/2-way valve Series 581, Size 4 5814112600 V581-5/2SR-048DC-I4-1P22-HBX-AA-X-S-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | -0.95 bar | - | - | 48 V | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814112300 | 5/2-way valve Series 581, Size 4 5814112300 V581-5/2SR-110AC-I4-1P22-HBX-AA-X-S-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | - | 8 VA | Notched | - | 10 bar | - | -0.95 bar | - | 110 V | - | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | 10 VA | 5/2, with spring return | - | Plate connection | Slide valve | - | -10% / +10% | - |
| 5814112400 | 5/2-way valve Series 581, Size 4 5814112400 V581-5/2SR-230AC-I4-1P22-HBX-AA-X-S-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | 8 VA | - | Notched | - | 10 bar | - | -0.95 bar | 230 V | - | - | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814112000 | 5/2-way valve Series 581, Size 4 5814112000 V581-5/2SR-NONE-I4-1P22-HBX-AA-X-S-T0 | electric | Single-sided actuated | Base valve without coil | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | 3 bar | -0.95 bar | - | - | - | 22 mm | External | With spring return | 6000 l/min | soft sealing | ISO 4 | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | - |
| 5814113500 | 5/2-way valve Series 581, Size 4 5814113500 V581-5/2SR-012DC-I4-1P22-HBX-AA-X-S-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | -0.95 bar | - | - | 12 V | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814113200 | 5/2-way valve Series 581, Size 4 5814113200 V581-5/2SR-024AC-I4-1P22-HBX-AA-X-S-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | 8 VA | - | Notched | - | 10 bar | - | -0.95 bar | 24 V | - | - | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814113100 | 5/2-way valve Series 581, Size 4 5814113100 V581-5/2SR-024DC-I4-1P22-HBX-AA-X-S-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | -0.95 bar | - | - | 24 V | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814113600 | 5/2-way valve Series 581, Size 4 5814113600 V581-5/2SR-048DC-I4-1P22-HBX-AA-X-S-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | -0.95 bar | - | - | 48 V | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814113300 | 5/2-way valve Series 581, Size 4 5814113300 V581-5/2SR-110AC-I4-1P22-HBX-AA-X-S-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | - | 8 VA | Notched | - | 10 bar | - | -0.95 bar | - | 110 V | - | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | 10 VA | 5/2, with spring return | - | Plate connection | Slide valve | - | -10% / +10% | - |
| 5814113400 | 5/2-way valve Series 581, Size 4 5814113400 V581-5/2SR-230AC-I4-1P22-HBX-AA-X-S-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | - | 8 VA | - | Notched | - | 10 bar | - | -0.95 bar | 230 V | - | - | 22 mm | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814113000 | 5/2-way valve Series 581, Size 4 5814113000 V581-5/2SR-NONE-I4-1P22-HBX-AA-X-S-T1 | electric | Single-sided actuated | Base valve without coil | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | -0.95 bar | - | - | - | 22 mm | External | With spring return | 6000 l/min | soft sealing | ISO 4 | ISO 5599-1 | - | - | 5/2, with spring return | with throttle | Plate connection | Slide valve | - | - | - |
| 5814170540 | 5/2-way valve Series 581, Size 4 5814170540 V581-5/2SR-24/42-I4-1CNO-HUX-AA-X-C-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | EN 175301-803, Form A | Plug | - | - | - | Not latching | - | 16 bar | - | 3 bar | 42 V | - | 24 V | 30x22 mm CNOMO | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | -10% / +10% |
| 5814170440 | 5/2-way valve Series 581, Size 4 5814170440 V581-5/2SR-230AC-I4-1CNO-HUX-AA-X-C-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | EN 175301-803, Form A | Plug | - | 10.8 VA | - | Not latching | - | 16 bar | - | 3 bar | 230 V | - | - | 30x22 mm CNOMO | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 15.2 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814171540 | 5/2-way valve Series 581, Size 4 5814171540 V581-5/2SR-24/42-I4-1CNO-HUX-AA-X-C-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | EN 175301-803, Form A | Plug | - | - | - | Not latching | - | 16 bar | - | 3 bar | 42 V | - | 24 V | 30x22 mm CNOMO | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | -10% / +10% |
| 5814171440 | 5/2-way valve Series 581, Size 4 5814171440 V581-5/2SR-230AC-I4-1CNO-HUX-AA-X-C-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | EN 175301-803, Form A | Plug | - | 10.8 VA | - | Not latching | - | 16 bar | - | 3 bar | 230 V | - | - | 30x22 mm CNOMO | internal | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 15.2 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814172540 | 5/2-way valve Series 581, Size 4 5814172540 V581-5/2SR-24/42-I4-1CNO-HUX-AA-X-S-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | EN 175301-803, Form A | Plug | - | - | - | Not latching | - | 16 bar | - | -0.95 bar | 42 V | - | 24 V | 30x22 mm CNOMO | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | -10% / +10% |
| 5814172440 | 5/2-way valve Series 581, Size 4 5814172440 V581-5/2SR-230AC-I4-1CNO-HUX-AA-X-S-T0 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | EN 175301-803, Form A | Plug | - | 10.8 VA | - | Not latching | - | 16 bar | - | -0.95 bar | 230 V | - | - | 30x22 mm CNOMO | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 15.2 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814173540 | 5/2-way valve Series 581, Size 4 5814173540 V581-5/2SR-24/42-I4-1CNO-HUX-AA-X-S-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | EN 175301-803, Form A | Plug | - | - | - | Not latching | - | 16 bar | - | -0.95 bar | 42 V | - | 24 V | 30x22 mm CNOMO | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | -10% / +10% |
| 5814173440 | 5/2-way valve Series 581, Size 4 5814173440 V581-5/2SR-230AC-I4-1CNO-HUX-AA-X-S-T1 | electric | Single-sided actuated | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | EN 175301-803, Form A | Plug | - | 10.8 VA | - | Not latching | - | 16 bar | - | -0.95 bar | 230 V | - | - | 30x22 mm CNOMO | External | With spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 15.2 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814610500 | 5/2-way valve Series 581, Size 4 5814610500 V581-5/2AR-012DC-I4-AP22-HBX-AA-D-C-T0 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 1.5 bar | - | - | 12 V | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | ISO 4 | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814610200 | 5/2-way valve Series 581, Size 4 5814610200 V581-5/2AR-024AC-I4-AP22-HBX-AA-D-C-T0 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | 8 VA | - | Notched | - | 10 bar | - | 1.5 bar | 24 V | - | - | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814610100 | 5/2-way valve Series 581, Size 4 5814610100 V581-5/2AR-024DC-I4-AP22-HBX-AA-D-C-T0 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 1.5 bar | - | - | 24 V | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | ISO 4 | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814610600 | 5/2-way valve Series 581, Size 4 5814610600 V581-5/2AR-048DC-I4-AP22-HBX-AA-D-C-T0 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 1.5 bar | - | - | 48 V | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | ISO 4 | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814610300 | 5/2-way valve Series 581, Size 4 5814610300 V581-5/2AR-110AC-I4-AP22-HBX-AA-D-C-T0 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | - | 8 VA | Notched | - | 10 bar | - | 1.5 bar | - | 110 V | - | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | 10 VA | 5/2, with spring return | - | Plate connection | Slide valve | - | -10% / +10% | - |
| 5814610400 | 5/2-way valve Series 581, Size 4 5814610400 V581-5/2AR-230AC-I4-AP22-HBX-AA-D-C-T0 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | 8 VA | - | Notched | - | 10 bar | - | 1.5 bar | 230 V | - | - | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814610000 | 5/2-way valve Series 581, Size 4 5814610000 V581-5/2AR-NONE-I4-AP22-HBX-AA-D-C-T0 | electric | - | Base valve without coil | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | 10 bar | 10 bar | 1.5 bar | 1.5 bar | - | - | - | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | ISO 4 | ISO 5599-1 | - | - | 5/2, with spring return | - | Plate connection | Slide valve | - | - | - |
| 5814611500 | 5/2-way valve Series 581, Size 4 5814611500 V581-5/2AR-012DC-I4-AP22-HBX-AA-D-C-T1 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 1.5 bar | - | - | 12 V | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | with throttle | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814611200 | 5/2-way valve Series 581, Size 4 5814611200 V581-5/2AR-024AC-I4-AP22-HBX-AA-D-C-T1 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | 8 VA | - | Notched | - | 10 bar | - | 1.5 bar | 24 V | - | - | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814611100 | 5/2-way valve Series 581, Size 4 5814611100 V581-5/2AR-024DC-I4-AP22-HBX-AA-D-C-T1 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 1.5 bar | - | - | 24 V | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | with throttle | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814611600 | 5/2-way valve Series 581, Size 4 5814611600 V581-5/2AR-048DC-I4-AP22-HBX-AA-D-C-T1 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | 5 W | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | - | 1.5 bar | - | - | 48 V | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | - | 5/2, with spring return | with throttle | Plate connection | Slide valve | - | - | -10% / +10% |
| 5814611300 | 5/2-way valve Series 581, Size 4 5814611300 V581-5/2AR-110AC-I4-AP22-HBX-AA-D-C-T1 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | - | 8 VA | Notched | - | 10 bar | - | 1.5 bar | - | 110 V | - | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | - | 10 VA | 5/2, with spring return | - | Plate connection | Slide valve | - | -10% / +10% | - |
| 5814611400 | 5/2-way valve Series 581, Size 4 5814611400 V581-5/2AR-230AC-I4-AP22-HBX-AA-D-C-T1 | electric | - | - | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | 8 VA | - | Notched | - | 10 bar | - | 1.5 bar | 230 V | - | - | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | - | ISO 5599-1 | 10 VA | - | 5/2, with spring return | - | Plate connection | Slide valve | -10% / +10% | - | - |
| 5814611000 | 5/2-way valve Series 581, Size 4 5814611000 V581-5/2AR-NONE-I4-AP22-HBX-AA-D-C-T1 | electric | - | Base valve without coil | Base plate principle single | Base plate ISO 5599-1 | M5 | Base plate ISO 5599-1 | Base plate ISO 5599-1 | - | Form B Industry | Plug | 24.5 l/(s*bar) | - | - | Notched | - | 10 bar | 1.5 bar | 1.5 bar | - | - | - | 22 mm | internal | With air spring return | 6000 l/min | soft sealing | ISO 4 | ISO 5599-1 | - | - | 5/2, with spring return | with throttle | Plate connection | Slide valve | - | - | - |
