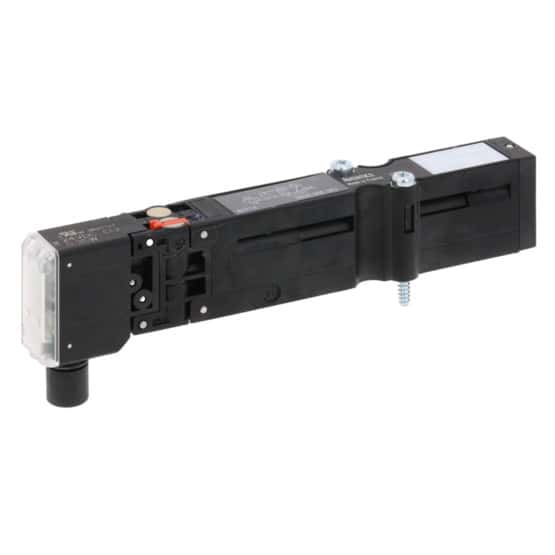

| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | 78 g |
| Dimensions (L x W x H) | 180 cm x 73 cm x 70 cm |
| Country of origin** | FR🇫🇷 |
| Customs goods number | 84812090 |
| GTIN | 3661475863667 |
| RoHS compliant | On request |
| Manufacturer | Aventics |
Access to the official manufacturer catalog for compatible spare parts and repair kits.
| Dimension | Value |
|---|---|
| Actuation | electric |
| Switching principle | 5/2, double-acting |
| Actuation function | Double-acting |
| Manual auxiliary operation | Not latching |
| Pre-control | External |
| Rated flow Qn | 850 l/min |
| Operating pressure min. | -0.9 bar |
| Maximum operating pressure | 10 bar |
| Operating voltage | 24 V DC |
| Voltage tolerance DC | -15% / +20% |
| Protection rating with connection | IP65 |
| Reverse polarity protection | Polarity safe |
| Pilot valve | 16 mm, soft sealing |
| DC power consumption | 0.35 W |
| Duty cycle | 100 % |
| Typ. switch-on time | 13 ms |
| Typ. switch-off time | 15 ms |
| Certificates | UL (Underwriters Laboratories) ‒ only pilot valves |
| Minimum ambient temperature | 0 °C |
| Maximum ambient temperature | 50 °C |
| Weight | 0.082 kg |
| Housing material | Glass fiber reinforced polyamide |
Product | Details | Actuation | Actuation function | Certificates | DC power consumption | Duty cycle | Housing material | Manual auxiliary operation | Maximum ambient temperature | Maximum operating pressure | Minimum ambient temperature | Operating pressure min. | Operating voltage | Pilot valve | Pre-control | Protection rating with connection | Rated flow Qn | Reverse polarity protection | Switching principle | Typ. switch-off time | Typ. switch-on time | Valve function | Voltage tolerance DC | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0820055101 | 2x3/2-way valve Series HF03-LG 0820055101 HF03 - 3/2CC - 024DC | electric | - | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Notched | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 2x 3/2 NC/NC, with spring return | 25 ms | 20 ms | NC/NC | -15% / +20% | 0.082 kg |
| 0820055201 | 2x3/2-way valve Series HF03-LG 0820055201 HF03 - 3/2OO - 024DC | electric | - | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Notched | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 2x 3/2 NO/NO, with spring return | 25 ms | 20 ms | NO/NO | -15% / +20% | 0.082 kg |
| 0820055301 | 2x3/2-way valve Series HF03-LG 0820055301 HF03 - 3/2OC - 024DC | electric | - | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Notched | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 2x 3/2 NC/NO, with spring return | 25 ms | 20 ms | NC/NO | -15% / +20% | 0.082 kg |
| 0820055311 | 2x3/2-way valve Series HF03-LG 0820055311 HF03 - 3/2OC - 024DC | electric | - | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Notched | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 2x 3/2 NO/NC, with spring return | 25 ms | 20 ms | NO/NC | -15% / +20% | 0.082 kg |
| 0820055102 | 2x3/2-way valve Series HF03-LG 0820055102 HF03 - 3/2CC - 024DC | electric | - | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Not latching | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 2x 3/2 NC/NC, with spring return | 25 ms | 16 ms | NC/NC | -15% / +20% | 0.082 kg |
| 0820055202 | 2x3/2-way valve Series HF03-LG 0820055202 HF03 - 3/2OO - 024DC | electric | - | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Not latching | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 2x 3/2 NO/NO, with spring return | 25 ms | 16 ms | NO/NO | -15% / +20% | 0.082 kg |
| 0820055302 | 2x3/2-way valve Series HF03-LG 0820055302 HF03 - 3/2OC - 024DC | electric | - | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Not latching | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 2x 3/2 NC/NO, with spring return | 25 ms | 16 ms | NC/NO | -15% / +20% | 0.082 kg |
| 0820055312 | 2x3/2-way valve Series HF03-LG 0820055312 HF03 - 3/2OC - 024DC | electric | - | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Not latching | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 2x 3/2 NO/NC, with spring return | 25 ms | 16 ms | NO/NC | -15% / +20% | 0.082 kg |
| 0820055051 | 5/2-way valve Series HF03-LG 0820055051 HF03 - 5/2SR - 024DC | electric | Single-sided actuated | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Notched | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 5/2, with spring return | 23 ms | 16 ms | - | -15% / +20% | 0.082 kg |
| 0820055501 | 5/2-way valve Series HF03-LG 0820055501 HF03 - 5/2DS - 024DC | electric | Double-acting | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Notched | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 5/2, double-acting | 15 ms | 13 ms | - | -15% / +20% | 0.082 kg |
| 0820055001 | 5/2-way valve Series HF03-LG 0820055001 HF03 - 5/2AR - 024DC | electric | Double-acting | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Notched | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 5/2, with spring return | 23 ms | 15 ms | - | -15% / +20% | 0.082 kg |
| 0820055052 | 5/2-way valve Series HF03-LG 0820055052 HF03 - 5/2SR - 024DC | electric | Single-sided actuated | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Not latching | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 5/2, with spring return | 23 ms | 16 ms | - | -15% / +20% | 0.082 kg |
| 0820055502 | 5/2-way valve Series HF03-LG 0820055502 HF03 - 5/2DS - 024DC | electric | Double-acting | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Not latching | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 5/2, double-acting | 15 ms | 13 ms | - | -15% / +20% | 0.082 kg |
| 0820055002 | 5/2-way valve Series HF03-LG 0820055002 HF03 - 5/2AR - 024DC | electric | Single-sided actuated | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Not latching | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 5/2, with spring return | 23 ms | 15 ms | - | -15% / +20% | 0.082 kg |
| 0820055601 | 5/3-way valve Series HF03-LG 0820055601 HF03 - 5/3CC - 024DC | electric | - | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Notched | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 5/3, closed center position | 15 ms | 14 ms | Closed center position | -15% / +20% | 0.082 kg |
| 0820055602 | 5/3-way valve Series HF03-LG 0820055602 HF03 - 5/3CC - 024DC | electric | - | UL (Underwriters Laboratories) ‒ only pilot valves | 0.35 W | 100 % | Glass fiber reinforced polyamide | Not latching | 50 °C | 10 bar | 0 °C | -0.9 bar | 24 V DC | 16 mm, soft sealing | External | IP65 | 850 l/min | Polarity safe | 5/3, closed center position | 15 ms | 14 ms | Closed center position | -15% / +20% | 0.082 kg |
