| Dimension | Value |
|---|---|
| type | Hydraulic Pump |
| Subtypes | Electric pump - Synchronous hub systems |
| Series | EVO |
| Maximum operating pressure in bar | 700 |
| Maximum operating pressure in psi | 10,000 |
| Maximum delivery volume at nominal pressure | 1.12 l/min |
| Maximum delivery volume at nominal pressure | 128 in³/min |
| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | 920,00 kg |
| Dimensions (L x W x H) | not available |
| Country of origin** | NL🇳🇱 |
| Customs goods number | 84135061 |
| GTIN | On request |
| RoHS compliant |
| On request |
| Manufacturer | Enerpac |
| Tank content (cm3) |
| 250000 |
| Duty Cycle | Extended |
| Usable oil volume (liters) | 250 |
| Maximum Flow at Rated Pressure (in3) | 128 |
| Maximum Flow at Rated Pressure (litres) | 2,1 |
| Number of lifting points | 8 |
| Motor voltage | 380-415 V |
| Motor phases | 3 phase |
| Motor hertz | 50/60 Hz |
| Areas of maximum operating pressure (psi) | 10,000 |
| Reservoir size ranges (in gallons) | > 10 |
| Areas of maximum operating pressure (bar) | 700 |
| Maximum delivery volume at nominal pressure | 2.1 l/min |
| Valve operation | Electromagnet |
| Valve type | 4-way, 3-position |
| Accuracy over full stroke | 1 mm |
| Motor Technical Data | 380-415 V, 3 Ph, 50-60 Hz |
| Reservoir Capacity (inches3) | 15,246 |
| Reservoir capacity (gallon) | 66 |
| Number of outputs | 8 |
| Motor power (Hp) | 4 |
| Type of drive | Electric |
| Cylinder compatibility | Single-acting, Double-acting |
| Variable output flow high pressure greater than 125 bar per minute | 0,6-2,1 |

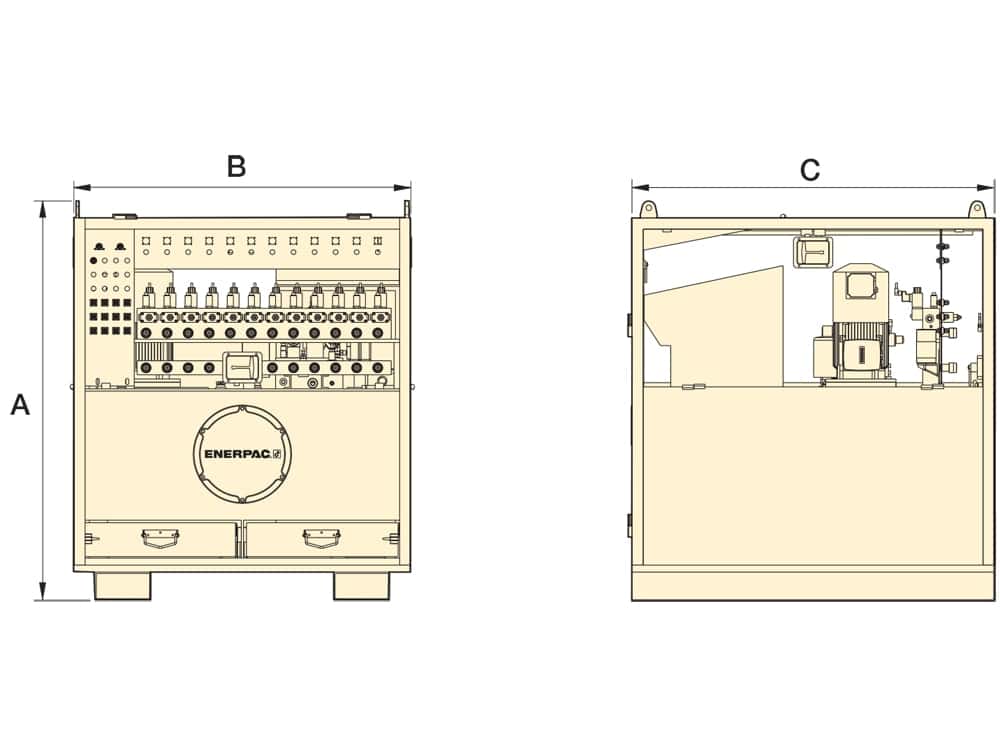

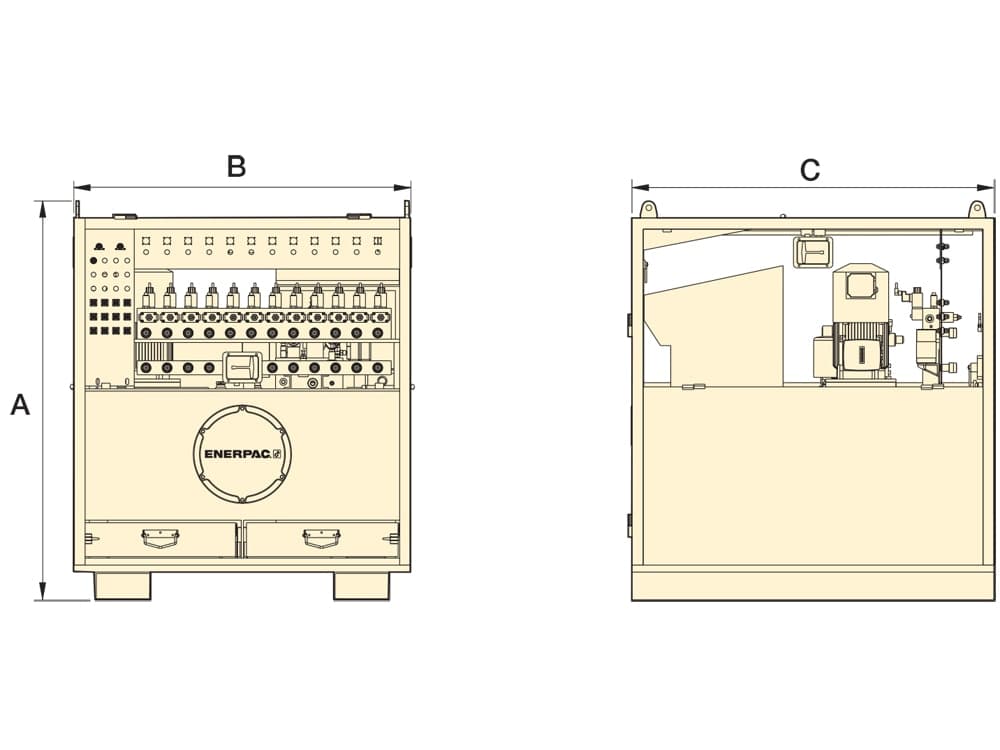

| Dimension C (inches) | 47.25 |
| Dimension B (inches) | 50.75 |
| Output flow rate at 100 psi in 3 minutes | 677 |
| Output Flow Rate 10000 Psi In3/min | 128 |
| Variable output flow low pressure less than 1800 psi in 3 min | 201-677 |
| Variable output flow low pressure less than 125 bar per minute | 3,3-11,1 |
| Maximum flow rate ranges at rated pressure in 3 min | 120 - 200 |
| Dimension A (inches) | 56 |
| Maximum flow rate ranges at rated pressure (l/min) | 1,96 - 3,27 |
| Dimension C (mm) | 1200 |
| Dimension B (mm) | 1290 |
| Dimension A (mm) | 1422 |
| Variable output flow high pressure greater than 1800 psi in 3 minutes | 38-128 |
Product | Details | Accuracy over full stroke | Areas of maximum operating pressure (bar) | Areas of maximum operating pressure (psi) | Cylinder compatibility | Dimension A (inches) | Dimension A (mm) | Dimension B (inches) | Dimension B (mm) | Dimension C (inches) | Dimension C (mm) | Duty Cycle | Maximum delivery volume at nominal pressure | Maximum Flow at Rated Pressure (in3) | Maximum Flow at Rated Pressure (litres) | Maximum flow rate ranges at rated pressure (l/min) | Maximum flow rate ranges at rated pressure in 3 min | Maximum operating pressure in bar | Maximum operating pressure in psi | Motor hertz | Motor phases | Motor power (Hp) | Motor Technical Data | Motor voltage | Number of lifting points | Number of outputs | Output Flow Rate 10000 Psi In3/min | Output flow rate at 100 psi in 3 minutes | Reservoir capacity (gallon) | Reservoir Capacity (inches3) | Reservoir size ranges (in gallons) | Series | Subtypes | Tank content (cm3) | type | Type of drive | Usable oil volume (liters) | Valve operation | Valve type | Variable output flow high pressure greater than 125 bar per minute | Variable output flow high pressure greater than 1800 psi in 3 minutes | Variable output flow low pressure less than 125 bar per minute | Variable output flow low pressure less than 1800 psi in 3 min |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EVO421380 | Electric pump - Synchronous hub systems | 1 mm | 700 | 10,000 | Single-acting, Double-acting | 56 | 1422 | 50.75 | 1290 | 47.25 | 1200 | Extended | 1.12 l/min | 128 | 2,1 | 1,96 - 3,27 | 120 - 200 | 700 | 10,000 | 50/60 Hz | 3 phase | 4 | 380-415 V, 3 Ph, 50-60 Hz | 380-415 V | 4 | 4 | 128 | 677 | 66 | 15,246 | > 10 | EVO | Electric pump - Synchronous hub systems | 250000 | Hydraulic Pump | Electric | 250 | Electromagnet | 4-way, 3-position | 0,6-2,1 | 38-128 | 3,3-11,1 | 201-677 |
| EVO440380 | Electric pump - Synchronous hub systems | 1 mm | 700 | 10,000 | Single-acting, Double-acting | 56 | 1422 | 50.75 | 1290 | 47.25 | 1200 | Extended | 2.24 l/min | 244 | 4,0 | > 3,27 | > 200 | 700 | 10,000 | 50/60 Hz | 3 phase | 10 | 380-415 V, 3 Ph, 50-60 Hz | 380-415 V | 4 | 4 | 244 | 793 | 66 | 15,246 | > 10 | EVO | Electric pump - Synchronous hub systems | 250000 | Hydraulic Pump | Electric | 250 | Electromagnet | 4-way, 3-position | 1,2-4,0 | 73-244 | 3,9-13,0 | 238-793 |
| EVO821380 | Electric pump - Synchronous hub systems | 1 mm | 700 | 10,000 | Single-acting, Double-acting | 56 | 1422 | 50.75 | 1290 | 47.25 | 1200 | Extended | 1.12 l/min | 128 | 2,1 | 1,96 - 3,27 | 120 - 200 | 700 | 10,000 | 50/60 Hz | 3 phase | 4 | 380-415 V, 3 Ph, 50-60 Hz | 380-415 V | 8 | 8 | 128 | 677 | 66 | 15,246 | > 10 | EVO | Electric pump - Synchronous hub systems | 250000 | Hydraulic Pump | Electric | 250 | Electromagnet | 4-way, 3-position | 0,6-2,1 | 38-128 | 3,3-11,1 | 201-677 |
| EVO840380 | Electric pump - Synchronous hub systems | 1 mm | 700 | 10,000 | Single-acting, Double-acting | 56 | 1422 | 50.75 | 1290 | 47.25 | 1200 | Extended | 2.24 l/min | 244 | 4,0 | > 3,27 | > 200 | 700 | 10,000 | 50/60 Hz | 3 phase | 10 | 380-415 V, 3 Ph, 50-60 Hz | 380-415 V | 8 | 8 | 244 | 793 | 66 | 15,246 | > 10 | EVO | Electric pump - Synchronous hub systems | 250000 | Hydraulic Pump | Electric | 250 | Electromagnet | 4-way, 3-position | 1,2-4,0 | 73-244 | 3,9-13,0 | 238-793 |
| EVO1221380 | Electric pump - Synchronous hub systems | 1 mm | 700 | 10,000 | Single-acting, Double-acting | 56 | 1422 | 50.75 | 1290 | 47.25 | 1200 | Extended | 2.51 l/min | 128 | 2,1 | 1,96 - 3,27 | 120 - 200 | 700 | 10,000 | 50/60 Hz | 3 phase | 4 | 380-415 V, 3 Ph, 50-60 Hz | 380-415 V | 12 | 12 | 128 | 677 | 66 | 15,246 | > 10 | EVO | Electric pump - Synchronous hub systems | 250000 | Hydraulic Pump | Electric | 250 | Electromagnet | 4-way, 3-position | 0,6-2,1 | 38-128 | 3,3-11,1 | 201-677 |
| EVO1240380 | Electric pump - Synchronous hub systems | 1 mm | 700 | 10,000 | Single-acting, Double-acting | 56 | 1422 | 50.75 | 1290 | 47.25 | 1200 | Extended | 4.80 l/min | 244 | 4,0 | > 3,27 | > 200 | 700 | 10,000 | 50/60 Hz | 3 phase | 10 | 460-480 V, 3 Ph, 50-60 Hz | 380-415 V | 12 | 12 | 244 | 793 | 66 | 15,246 | > 10 | EVO | Electric pump - Synchronous hub systems | 250000 | Hydraulic Pump | Electric | 250 | Electromagnet | 4-way, 3-position | 1,2-4,0 | 73-244 | 3,9-13,0 | 238-793 |
