| Dimension | Value |
|---|---|
| Actuation | electric |
| Rated flow Qn | 2000 l/min |
| Execution | NC |
| Compressed air connection | G 1/4 |
| Operating pressure min. | 2 bar |
| Maximum operating pressure | 12 bar |
| Sealing principle | soft sealing |
| Pre-control |
| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | not available |
| Dimensions (L x W x H) | 230 cm x 60 cm x 70 cm |
| Country of origin** | IT🇮🇹 |
| Customs goods number | 84812090 |
| GTIN | On request |
| RoHS compliant |
Access to the official manufacturer catalog for compatible spare parts and repair kits.
| On request |

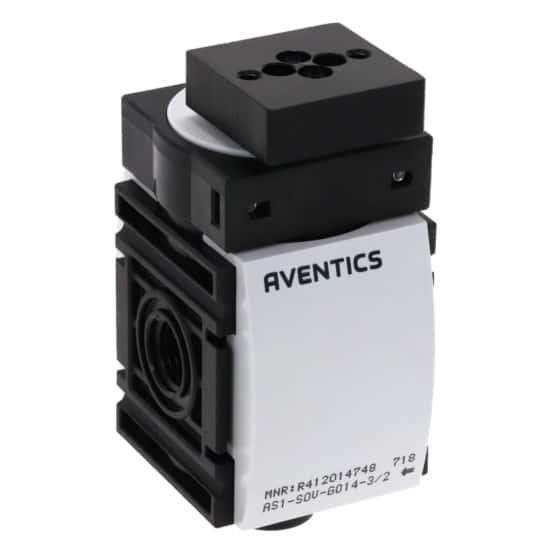

| Manufacturer | Aventics |
| internal |
| Type of connection | Pipe connection |

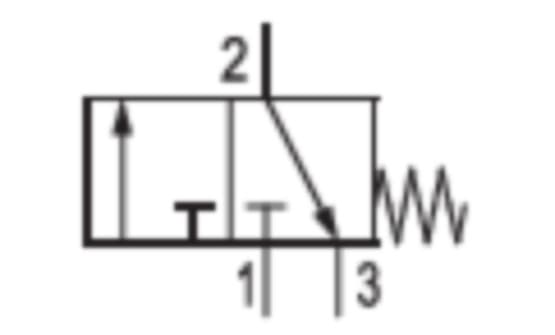

| Components | 3/2-way valve |
| blockable | blockable |
| Basic valve equipment | Base valve without pilot valve, with CNOMO connection plate |
| Design | Seat valve |
| Minimum ambient temperature | -10 °C |
| Maximum ambient temperature | 50 °C |
| Medium | Compressed air, neutral gases |
| Max. particle size | 25 µm |
| Minimum oil content in compressed air | 0 mg/m³ |
| Maximum oil content in compressed air | 5 mg/m³ |
| Compressed air connection, venting | G 1/4 |
| Air injection | right |
| Rated flow Qn 1 to 2 | 2000 l/min |
| Rated flow Qn 2 to 3 | 380 l/min |
| Protection rating with connection | IP65 |
| Weight | 0.2096 kg |
excl. VAT
|will be calculated in cart
excl. VAT
|will be calculated in cart
Product | Details | Actuation | Air injection | Basic valve equipment | blockable | Components | Compressed air connection | Compressed air connection, venting | Condensate drain | Connection | Container | Container volume filter | Control function | Controller type | DC power consumption | Design | Duty cycle | Execution | Filter element | Filter pore size | Housing material | Installation position | Material front cover | Material seals | Material threaded bushing | Max. achievable compressed air class according to ISO 8573-1:2010 | Max. gauge diameter in blocked state | Max. particle size | Maximum ambient temperature | Maximum control pressure | Maximum oil content in compressed air | Maximum operating pressure | Maximum pressure regulation range | Medium | Minimum ambient temperature | Minimum control pressure | Minimum oil content in compressed air | Minimum pressure control range | Note | Operating pressure min. | Operating voltage | Operating voltage AC at 50 Hz | Operating voltage AC at 60 Hz | Operating voltage DC | Pre-control | Pressure gauge | Pressure supply | Protection rating with connection | Rated flow Qn | Rated flow Qn 1 to 2 | Rated flow Qn 2 to 3 | Sealing principle | Type of closure | Type of connection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R412014672 | Maintenance unit 2-part Series AS1-ACD R412014672 AS1-ACD-G014-GAI-080-PNB-HO-05.00-PNB | - | left | - | - | Maintenance units | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | - | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 700 l/min | - | - | - | Not lockable | - | - |
| R412014673 | Maintenance unit 2-part Series AS1-ACD R412014673 AS1-ACD-G014-GAI-080-PNB-AO-05.00-PNB | - | left | - | - | Maintenance units | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | - | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 700 l/min | - | - | - | Not lockable | - | - |
| R412014645 | Filter pressure regulating valve Series AS1-FRE R412014645 AS1-FRE-G014-GAI-080-PNB-HO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014646 | Filter pressure regulating valve Series AS1-FRE R412014646 AS1-FRE-G014-GAI-080-PNB-AO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014647 | Filter pressure regulating valve Series AS1-FRE R412014647 AS1-FRE-G014-GAI-080-PNB-AC-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014648 | Filter pressure regulating valve Series AS1-FRE R412014648 AS1-FRE-G014-GAI-080-PBS-HO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC with metal protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014649 | Filter pressure regulating valve Series AS1-FRE R412014649 AS1-FRE-G014-GAI-080-SSN-HO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014650 | Filter pressure regulating valve Series AS1-FRE R412014650 AS1-FRE-G014-GAI-080-SSN-AO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014651 | Filter pressure regulating valve Series AS1-FRE R412014651 AS1-FRE-G014-GAI-080-SSN-AC-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014652 | Filter pressure regulating valve Series AS1-FRE R412014652 AS1-FRE-G014-GAN-080-PNB-HO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | 40 mm | - | 50 °C | - | - | 12 bar | 8 bar | - | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | Without pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014653 | Filter pressure regulating valve Series AS1-FRE R412014653 AS1-FRE-G014-GAN-080-PNB-AO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | 40 mm | - | 50 °C | - | - | 12 bar | 8 bar | - | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | Without pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014654 | Filter pressure regulating valve Series AS1-FRE R412014654 AS1-FRE-G014-GAN-080-PNB-AC-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | 40 mm | - | 50 °C | - | - | 12 bar | 8 bar | - | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | Without pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014655 | Filter pressure regulating valve Series AS1-FRE R412014655 AS1-FRE-G014-GAI-100-PNB-HO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014656 | Filter pressure regulating valve Series AS1-FRE R412014656 AS1-FRE-G014-GAI-100-PNB-AO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014657 | Filter pressure regulating valve Series AS1-FRE R412014657 AS1-FRE-G014-GAI-100-PNB-AC-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014658 | Filter pressure regulating valve Series AS1-FRE R412014658 AS1-FRE-G014-GAI-100-PBS-HO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC with metal protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014659 | Filter pressure regulating valve Series AS1-FRE R412014659 AS1-FRE-G014-GAI-100-SSN-HO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014660 | Filter pressure regulating valve Series AS1-FRE R412014660 AS1-FRE-G014-GAI-100-SSN-AO-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014661 | Filter pressure regulating valve Series AS1-FRE R412014661 AS1-FRE-G014-GAI-100-SSN-AC-05.00 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412010650 | Filter pressure regulating valve Series AS1-FRE-...-E11 R412010650 AS1-FRE-G014-GAN-080-PNB-AC-05.00-E11 | - | left | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | - | 40 mm | - | 50 °C | - | - | 12 bar | 8 bar | - | -10 °C | - | - | 0.5 bar | The closure E11 is delivered without a key (key R961403407, see accessories). The rear pressure gauge connection of the pressure control valve is closed with a plug, the front one is open. Depending on the customer application, a second plug may be required. Please order separately (see accessories). | 1.5 bar | - | - | - | - | - | Without pressure gauge | one-sided | - | 1000 l/min | - | - | - | E11-Closure, without key | - | - |
| R412014723 | Filter pressure regulating valve Series AS1-FRE R412014723 AS1-FRE-G014-GAI-080-PNB-HO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014724 | Filter pressure regulating valve Series AS1-FRE R412014724 AS1-FRE-G014-GAI-080-PNB-AO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014725 | Filter pressure regulating valve Series AS1-FRE R412014725 AS1-FRE-G014-GAI-080-PNB-AC-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014726 | Filter pressure regulating valve Series AS1-FRE R412014726 AS1-FRE-G014-GAI-080-PBS-HO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC with metal protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014727 | Filter pressure regulating valve Series AS1-FRE R412014727 AS1-FRE-G014-GAI-080-SSN-HO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014728 | Filter pressure regulating valve Series AS1-FRE R412014728 AS1-FRE-G014-GAI-080-SSN-AO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014729 | Filter pressure regulating valve Series AS1-FRE R412014729 AS1-FRE-G014-GAI-080-SSN-AC-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 8 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014730 | Filter pressure regulating valve Series AS1-FRE R412014730 AS1-FRE-G014-GAN-080-PNB-HO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | 40 mm | - | 50 °C | - | - | 12 bar | 8 bar | - | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | Without pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014731 | Filter pressure regulating valve Series AS1-FRE R412014731 AS1-FRE-G014-GAN-080-PNB-AO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | 40 mm | - | 50 °C | - | - | 12 bar | 8 bar | - | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | Without pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014732 | Filter pressure regulating valve Series AS1-FRE R412014732 AS1-FRE-G014-GAN-080-PNB-AC-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | 40 mm | - | 50 °C | - | - | 12 bar | 8 bar | - | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | Without pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014733 | Filter pressure regulating valve Series AS1-FRE R412014733 AS1-FRE-G014-GAI-100-PNB-HO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014734 | Filter pressure regulating valve Series AS1-FRE R412014734 AS1-FRE-G014-GAI-100-PNB-AO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014735 | Filter pressure regulating valve Series AS1-FRE R412014735 AS1-FRE-G014-GAI-100-PNB-AC-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Container PC without protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014736 | Filter pressure regulating valve Series AS1-FRE R412014736 AS1-FRE-G014-GAI-100-PBS-HO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Container PC with metal protective basket | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014737 | Filter pressure regulating valve Series AS1-FRE R412014737 AS1-FRE-G014-GAI-100-SSN-HO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014738 | Filter pressure regulating valve Series AS1-FRE R412014738 AS1-FRE-G014-GAI-100-SSN-AO-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412014739 | Filter pressure regulating valve Series AS1-FRE R412014739 AS1-FRE-G014-GAI-100-SSN-AC-05.00 R-->L | - | right | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless closed | G 1/4 | Metal container without sight glass | 16 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | Interchangeable | 5 µm | - | Vertical | - | - | - | 6 : 7 : - | - | - | 50 °C | - | - | 12 bar | 10 bar | Compressed air, neutral gases | -10 °C | - | - | 0.5 bar | - | 1.5 bar | - | - | - | - | - | With integrated pressure gauge | one-sided | - | 1000 l/min | - | - | - | Not lockable | - | - |
| R412010484 | Filling unit electric Activated Series AS1-SSU R412010484 AS1-SSU-G014-024-FORM C | electric | left | Base valve with pilot valve | blockable | 3/2-way valve, filling valve | G 1/4 | G 1/4 | - | - | - | - | - | - | 2 W | Seat valve | 100 % | - | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | - | 10 bar | - | Compressed air, neutral gases | -10 °C | - | - | - | - | 2.5 bar | 24 V DC | - | - | 24 V | internal | - | - | IP65 | 1300 l/min | 1300 l/min | 380 l/min | soft sealing | - | Pipe connection | - |
| R412010682 | Filling unit electric Activated Series AS1-SSU R412010682 AS1-SSU-G014-024-M12 | electric | left | Base valve with pilot valve | blockable | 3/2-way valve, filling valve | G 1/4 | G 1/4 | - | - | - | - | - | - | 2 W | Seat valve | 100 % | - | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | - | 10 bar | - | Compressed air, neutral gases | -10 °C | - | - | - | - | 2.5 bar | 24 V DC | - | - | 24 V | internal | - | - | IP65 | 1300 l/min | 1300 l/min | 380 l/min | soft sealing | - | Pipe connection | - |
| R412014669 | 3/2-way valve electric Activated Series AS1-SOV R412014669 AS1-SOV-G014-3/2-PVN | electric | left | Base valve without pilot valve | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | NC | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | 5 mg/m³ | 12 bar | - | Compressed air, neutral gases | -10 °C | - | 0 mg/m³ | - | - | 2 bar | - | - | - | - | internal | - | - | IP65 | 2000 l/min | 2000 l/min | 380 l/min | soft sealing | - | Pipe connection | 0.1964 kg |
| R412014670 | 3/2-way valve electric Activated Series AS1-SOV R412014670 AS1-SOV-G014-3/2-PVC | electric | left | Base valve without pilot valve, with CNOMO connection plate | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | NC | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | 5 mg/m³ | 12 bar | - | Compressed air, neutral gases | -10 °C | - | 0 mg/m³ | - | - | 2 bar | - | - | - | - | internal | - | - | IP65 | 2000 l/min | 2000 l/min | 380 l/min | soft sealing | - | Pipe connection | 0.2096 kg |
| R412014666 | 3/2-way valve electric Activated Series AS1-SOV R412014666 AS1-SOV-G014-3/2-024-FORM C | electric | left | Base valve with pilot valve | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | NC | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | 5 mg/m³ | 10 bar | - | Compressed air, neutral gases | -10 °C | - | 0 mg/m³ | - | - | 2 bar | 24 V DC | - | - | 24 V | internal | - | - | - | 2000 l/min | 2000 l/min | 380 l/min | soft sealing | - | Pipe connection | - |
| R412014668 | 3/2-way valve electric Activated Series AS1-SOV R412014668 AS1-SOV-G014-3/2-230-FORM C | electric | left | Base valve with pilot valve | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | NC | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | 5 mg/m³ | 10 bar | - | Compressed air, neutral gases | -10 °C | - | 0 mg/m³ | - | - | 2 bar | - | 230 V | 230 V | - | internal | - | - | - | 2000 l/min | 2000 l/min | 380 l/min | soft sealing | - | Pipe connection | - |
| R412010680 | 3/2-way valve electric Activated Series AS1-SOV R412010680 AS1-SOV-G014-3/2-024-M12 | electric | left | Base valve with pilot valve | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | NC | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | 5 mg/m³ | 10 bar | - | Compressed air, neutral gases | -10 °C | - | 0 mg/m³ | - | - | 2 bar | 24 V DC | - | - | 24 V | internal | - | - | - | 2000 l/min | 2000 l/min | 380 l/min | soft sealing | - | Pipe connection | - |
| R412014747 | 3/2-way valve electric Activated Series AS1-SOV R412014747 AS1-SOV-G014-3/2-PVN R-->L | electric | right | Base valve without pilot valve | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | NC | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | 5 mg/m³ | 12 bar | - | Compressed air, neutral gases | -10 °C | - | 0 mg/m³ | - | - | 2 bar | - | - | - | - | internal | - | - | IP65 | 2000 l/min | 2000 l/min | 380 l/min | soft sealing | - | Pipe connection | 0.1964 kg |
| R412014748 | 3/2-way valve electric Activated Series AS1-SOV R412014748 AS1-SOV-G014-3/2-PVC R-->L | electric | right | Base valve without pilot valve, with CNOMO connection plate | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | NC | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | 5 mg/m³ | 12 bar | - | Compressed air, neutral gases | -10 °C | - | 0 mg/m³ | - | - | 2 bar | - | - | - | - | internal | - | - | IP65 | 2000 l/min | 2000 l/min | 380 l/min | soft sealing | - | Pipe connection | 0.2096 kg |
| R412014744 | 3/2-way valve electric Activated Series AS1-SOV R412014744 AS1-SOV-G014-3/2-024-FORM C R-->L | electric | right | Base valve with pilot valve | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | NC | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | 5 mg/m³ | 10 bar | - | Compressed air, neutral gases | -10 °C | - | 0 mg/m³ | - | - | 2 bar | 24 V DC | - | - | 24 V | internal | - | - | - | 2000 l/min | 2000 l/min | 380 l/min | soft sealing | - | Pipe connection | - |
| R412014746 | 3/2-way valve electric Activated Series AS1-SOV R412014746 AS1-SOV-G014-3/2-230-FORM C R-->L | electric | right | Base valve with pilot valve | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | NC | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | 5 mg/m³ | 10 bar | - | Compressed air, neutral gases | -10 °C | - | 0 mg/m³ | - | - | 2 bar | - | 230 V | 230 V | - | internal | - | - | - | 2000 l/min | 2000 l/min | 380 l/min | soft sealing | - | Pipe connection | - |
| R412010681 | 3/2-way valve electric Activated Series AS1-SOV R412010681 AS1-SOV-G014-3/2-024-M12 R-->L | electric | right | Base valve with pilot valve | blockable | 3/2-way valve | G 1/4 | G 1/4 | - | - | - | - | - | - | - | Seat valve | - | NC | - | - | - | - | - | - | - | - | - | 25 µm | 50 °C | - | 5 mg/m³ | 10 bar | - | Compressed air, neutral gases | -10 °C | - | 0 mg/m³ | - | - | 2 bar | 24 V DC | - | - | 24 V | internal | - | - | - | 2000 l/min | 2000 l/min | 380 l/min | soft sealing | - | Pipe connection | - |
| R412014671 | Filling valve Series AS1-SSV R412014671 AS1-SSV-G014-FIA-INT | pneumatic | left | - | blockable | Filling valve | G 1/4 | - | - | - | - | - | - | - | - | Seat valve | - | - | - | - | Polyamide | - | Acrylonitrile butadiene styrene | Acrylonitrile butadiene rubber | Zinc die casting | - | - | 40 µm | 50 °C | 12 bar | - | 12 bar | - | Compressed air, neutral gases | -10 °C | 2.5 bar | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 2000 l/min | 2000 l/min | - | soft sealing | - | Pipe connection | 0.1336 kg |
