| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | not available |
| Dimensions (L x W x H) | 245 cm x 150 cm x 100 cm |
| Country of origin** | DE🇩🇪 |
| Customs goods number | 84811005 |
| GTIN | On request |
| RoHS compliant | On request |
| Manufacturer | Aventics |
Access to the official manufacturer catalog for compatible spare parts and repair kits.
| Dimension | Value |
|---|---|
| Actuation | pneumatic |

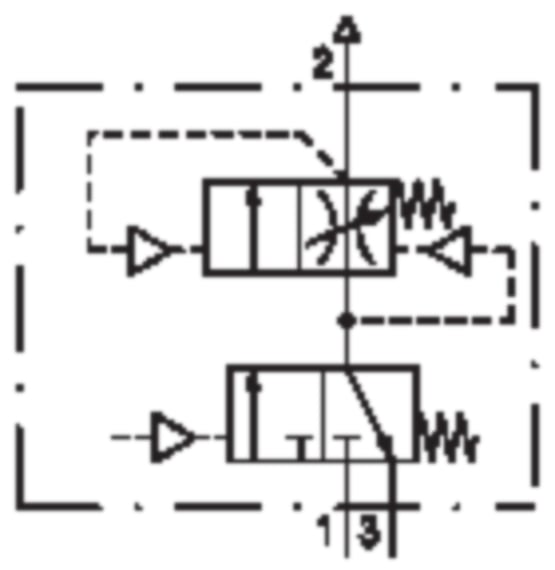

| Components | 3/2-way valve, filling valve |
| Rated flow Qn | 2500 l/min |
| Compressed air connection | G 1/2 |
| Operating pressure min. | 0 bar |
| Maximum operating pressure | 16 bar |
| Type of connection | Pipe connection |
| Sealing principle | soft sealing |
| Design | Seat valve |
| Pre-control | internal |
| blockable | blockable |
| Minimum control pressure | 2.5 bar |
| Maximum control pressure | 16 bar |
| Minimum ambient temperature | -10 °C |
| Maximum ambient temperature | 60 °C |
| Medium | Compressed air, neutral gases |
| Max. particle size | 5 µm |
| Compressed air connection, venting | G 1/2 |
| Rated flow Qn 1 to 2 | 2500 l/min |
| Rated flow Qn 2 to 3 | 1600 l/min |
| Weight | 1.69 kg |
| Housing material | Zinc die casting |
| Material seals | Acrylonitrile butadiene rubber |
| Material front cover | Acrylonitrile butadiene styrene |
| Material threaded bushing | Zinc die casting |
Product | Details | Actuating element | Actuation | blockable | Components | Compressed air connection | Compressed air connection, venting | Condensate drain | Connection | Container | Container volume filter | Control function | Controller type | DC power consumption | Design | Duty cycle | Electrical connector Type 2 | Filling method | Filter element | Filter pore size | Holding power AC 50 Hz | Housing material | Installation position | Material actuating element | Material front cover | Material front panel | Material seals | Material threaded bushing | Max. achievable compressed air class according to ISO 8573-1:2010 | Max. particle size | Maximum ambient temperature | Maximum control pressure | Maximum medium temperature | Maximum operating pressure | Maximum pressure regulation range | Medium | Medium temperature min. | Minimum ambient temperature | Minimum control pressure | Minimum pressure control range | Nominal flow rate 1 ▶ 5 | Nominal flow rate 1 ▶ 6 | Oil container volume | Operating pressure min. | Operating voltage AC at 50 Hz | Operating voltage AC at 60 Hz | Operating voltage DC | Pre-control | Pressure gauge | Pressure supply | Protection rating with connection | Rated flow 1 ▶ 3 | Rated flow Qn | Rated flow Qn 1 to 2 | Rated flow Qn 1 to 4 | Rated flow Qn 2 to 3 | Reverse polarity protection | Sealing principle | Standard electrical connection | Switching power AC 50 Hz | Type of closure | Type of connection | Version | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0821300500 | Maintenance unit 2-part Series NL4-ACD 0821300500 NL4-ACD-G012-GAU-100-PNB-HO-05,00-ON | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 1/2 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 125 cm³ | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 5000 l/min | - | - | - | - | - | - | - | Not lockable | - | - | - |
| 0821300503 | Maintenance unit 2-part Series NL4-ACD 0821300503 NL4-ACD-G012-GAU-100-PNB-AO-05,00-ON | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Fully automatic, pressureless open | G 1/2 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 125 cm³ | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 5000 l/min | - | - | - | - | - | - | - | Not lockable | - | - | - |
| 0821300501 | Maintenance unit 2-part Series NL4-ACD 0821300501 NL4-ACD-G012-GAU-100-PBS-HO-05,00-ON | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 1/2 | Container PC with metal protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 125 cm³ | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 5000 l/min | - | - | - | - | - | - | - | Not lockable | - | - | - |
| 0821300504 | Maintenance unit 2-part Series NL4-ACD 0821300504 NL4-ACD-G012-GAU-100-PBS-AO-05,00-ON | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Fully automatic, pressureless open | G 1/2 | Container PC with metal protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 125 cm³ | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 5000 l/min | - | - | - | - | - | - | - | Not lockable | - | - | - |
| 0821300502 | Maintenance unit 2-part Series NL4-ACD 0821300502 NL4-ACD-G012-GAU-100-SSS-HO-05,00-ON | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 1/2 | Metal container with sight glass | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 125 cm³ | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 5000 l/min | - | - | - | - | - | - | - | Not lockable | - | - | - |
| 0821300505 | Maintenance unit 2-part Series NL4-ACD 0821300505 NL4-ACD-G012-GAU-100-SSS-AO-05,00-ON | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Fully automatic, pressureless open | G 1/2 | Metal container with sight glass | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 125 cm³ | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 5000 l/min | - | - | - | - | - | - | - | Not lockable | - | - | - |
| 0821300530 | Maintenance unit 2-part Series NL4-ACD 0821300530 NL4-ACD-G034-GAU-100-PNB-HO-05,00-ON | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 3/4 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 125 cm³ | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 5000 l/min | - | - | - | - | - | - | - | Not lockable | - | - | - |
| 0821300533 | Maintenance unit 2-part Series NL4-ACD 0821300533 NL4-ACD-G034-GAU-100-PNB-AO-05,00-ON | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Fully automatic, pressureless open | G 3/4 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 125 cm³ | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 5000 l/min | - | - | - | - | - | - | - | Not lockable | - | - | - |
| 0821300531 | Maintenance unit 2-part Series NL4-ACD 0821300531 NL4-ACD-G034-GAU-100-PBS-HO-05,00-ON | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Semi-automatic, pressureless open | G 3/4 | Container PC with metal protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 125 cm³ | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 5000 l/min | - | - | - | - | - | - | - | Not lockable | - | - | - |
| 0821300535 | Maintenance unit 2-part Series NL4-ACD 0821300535 NL4-ACD-G034-GAU-100-SSS-AO-05,00-ON | - | - | - | Maintenance units, Filter pressure control valve, Oiler | - | - | Fully automatic, pressureless open | G 3/4 | Metal container with sight glass | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 2-part | - | - | Manual oil filling | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | - | - | -10 °C | - | 0.5 bar | - | - | 125 cm³ | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 5000 l/min | - | - | - | - | - | - | - | Not lockable | - | - | - |
| 0821300364 | Filter pressure regulating valve Series NL4-FRE 0821300364 NL4-FRE-G012-GAN-100-PNB-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/2 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | Without pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.19 kg |
| 0821300367 | Filter pressure regulating valve Series NL4-FRE 0821300367 NL4-FRE-G012-GAN-100-PNB-AO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/2 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | Without pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.26 kg |
| 0821300281 | Filter pressure regulating valve Series NL4-FRE 0821300281 NL4-FRE-G012-GAN 40MU-SSS-AO | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/2 | Metal container with sight glass | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | Without pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.47 kg |
| 0821300350 | Filter pressure regulating valve Series NL4-FRE 0821300350 NL4-FRE-G012-GAU-100-PNB-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/2 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.19 kg |
| 0821300351 | Filter pressure regulating valve Series NL4-FRE 0821300351 NL4-FRE-G012-GAU-100-PBS-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/2 | Container PC with metal protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.28 kg |
| 0821300352 | Filter pressure regulating valve Series NL4-FRE 0821300352 NL4-FRE-G012-GAU-100-SSS-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/2 | Metal container with sight glass | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.41 kg |
| 0821300353 | Filter pressure regulating valve Series NL4-FRE 0821300353 NL4-FRE-G012-GAU-100-PNB-AO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/2 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.26 kg |
| 0821300354 | Filter pressure regulating valve Series NL4-FRE 0821300354 NL4-FRE-G012-GAU-100-PBS-AO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/2 | Container PC with metal protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.35 kg |
| 0821300355 | Filter pressure regulating valve Series NL4-FRE 0821300355 NL4-FRE-G012-GAU-100-SSS-AO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/2 | Metal container with sight glass | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.47 kg |
| 0821300380 | Filter pressure regulating valve Series NL4-FRE 0821300380 NL4-FRE-G034-GAU-100-PNB-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 3/4 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.19 kg |
| 0821300381 | Filter pressure regulating valve Series NL4-FRE 0821300381 NL4-FRE-G034-GAU-100-PBS-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 3/4 | Container PC with metal protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.28 kg |
| 0821300382 | Filter pressure regulating valve Series NL4-FRE 0821300382 NL4-FRE-G034-GAU-100-SSS-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 3/4 | Metal container with sight glass | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.41 kg |
| 0821300383 | Filter pressure regulating valve Series NL4-FRE 0821300383 NL4-FRE-G034-GAU-100-PNB-AO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 3/4 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.26 kg |
| 0821300384 | Filter pressure regulating valve Series NL4-FRE 0821300384 NL4-FRE-G034-GAU-100-PBS-AO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 3/4 | Container PC with metal protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.35 kg |
| 0821300385 | Filter pressure regulating valve Series NL4-FRE 0821300385 NL4-FRE-G034-GAU-100-SSS-AO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 3/4 | Metal container with sight glass | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Not lockable | - | - | 1.47 kg |
| 0821300356 | Filter pressure regulating valve Series NL4-FRE 0821300356 NL4-FRE-G012-GAU-100-PNB-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/2 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | 2.01 kg |
| 0821300236 | Filter pressure regulating valve Series NL4-FRE 0821300236 NL4-FRE-G012-GAU-100-PBS-AO-05,00-2 | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/2 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | 2.08 kg |
| 0821300234 | Filter pressure regulating valve Series NL4-FRE 0821300234 NL4-FRE-G012-GAU-100-PBS-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 1/2 | Container PC with metal protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | 2.1 kg |
| 0821300237 | Filter pressure regulating valve Series NL4-FRE 0821300237 NL4-FRE-G012-GAU-100-PBS-AO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/2 | Container PC with metal protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | 2.17 kg |
| 0821300238 | Filter pressure regulating valve Series NL4-FRE 0821300238 NL4-FRE-G012-GAU-100-SSS-AO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Fully automatic, pressureless open | G 1/2 | Metal container with sight glass | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | 2.29 kg |
| 0821300386 | Filter pressure regulating valve Series NL4-FRE 0821300386 NL4-FRE-G034-GAU-100-PNB-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 3/4 | Container PC without protective basket | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | 2.01 kg |
| 0821300240 | Filter pressure regulating valve Series NL4-FRE 0821300240 NL4-FRE-G034-GAU-100-SSS-HO-05,00 | - | - | - | Filter pressure regulating valve | - | - | Semi-automatic, pressureless open | G 3/4 | Metal container with sight glass | 50 cm³ | With secondary ventilation | Diaphragm pressure control valves | - | 1-part | - | - | - | Interchangeable | 5 µm | - | - | Vertical | - | - | - | - | - | 6 : 7 : - | - | 60 °C | - | - | 16 bar | 10 bar | Compressed air, neutral gases | - | -10 °C | - | 0.5 bar | - | - | - | 1.5 bar | - | - | - | - | with pressure gauge | one-sided | - | - | 6900 l/min | - | - | - | - | - | - | - | Standard closure, with key | - | - | 2.23 kg |
| 0821300930 | Distributor Series NL4-DIL 0821300930 NL4-DIL-G012-NC4 | - | - | - | Distributor | - | - | - | G 1/2 | - | - | - | - | - | Distributor narrow | - | - | - | - | - | - | Zinc die casting | Arbitrary | - | - | Acrylonitrile butadiene styrene | - | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | 8750 l/min | 1340 l/min | - | 0 bar | - | - | - | - | - | - | - | 8750 l/min | - | 11000 l/min | 1340 l/min | - | - | - | - | - | - | - | Distributor 4-way | 0.4 kg |
| 0821300917 | Distributor Series NL4-DIS 0821300917 NL4-DIS-G012-NC4 | - | - | - | Distributor | - | - | - | G 1/2 | - | - | - | - | - | Distributor | - | - | - | - | - | - | Zinc die casting | Arbitrary | - | - | Acrylonitrile butadiene styrene | - | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | 8750 l/min | 1340 l/min | - | 0 bar | - | - | - | - | - | - | - | 8750 l/min | - | 11000 l/min | 1340 l/min | - | - | - | - | - | - | - | Distributor 4-way | 0.682 kg |
| 0821300919 | Distributor Series NL4-DIS 0821300919 NL4-DIS-G034-NC4 | - | - | - | Distributor | - | - | - | G 3/4 | - | - | - | - | - | Distributor | - | - | - | - | - | - | Zinc die casting | Arbitrary | - | - | Acrylonitrile butadiene styrene | - | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | 8750 l/min | 1340 l/min | - | 0 bar | - | - | - | - | - | - | - | 8750 l/min | - | 11000 l/min | 1340 l/min | - | - | - | - | - | - | - | Distributor 4-way | 0.682 kg |
| 0821300914 | Distributor Series NL4-DIN 0821300914 NL4-DIN-G012-NC4 | - | - | - | Distributor | - | - | - | G 1/2 | - | - | - | - | - | Check valve | - | - | - | - | - | - | Zinc die casting | Arbitrary | - | - | Acrylonitrile butadiene styrene | Acrylonitrile butadiene rubber | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | 2400 l/min | 1020 l/min | - | 0.1 bar | - | - | - | - | - | - | - | 2400 l/min | - | 2400 l/min | 1020 l/min | - | - | - | - | - | - | - | Distributor 4-way | 0.682 kg |
| 0821300916 | Distributor Series NL4-DIN 0821300916 NL4-DIN-G034-NC4 | - | - | - | Distributor | - | - | - | G 3/4 | - | - | - | - | - | Check valve | - | - | - | - | - | - | Zinc die casting | Arbitrary | - | - | Acrylonitrile butadiene styrene | Acrylonitrile butadiene rubber | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | 2400 l/min | 1020 l/min | - | 0.1 bar | - | - | - | - | - | - | - | 2400 l/min | - | 2400 l/min | 1020 l/min | - | - | - | - | - | - | - | Distributor 4-way | 0.682 kg |
| 0821300928 | Distributor Series NL4-DIC 0821300928 NL4-DIC-G012-NC2 | - | - | - | Distributor | - | - | - | G 3/4 | - | - | - | - | - | Center feed | - | - | - | - | - | - | Zinc die casting | Arbitrary | - | - | Acrylonitrile butadiene styrene | - | - | - | - | 60 °C | - | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | - | - | - | 0 bar | - | - | - | - | - | - | - | 11000 l/min | - | 11000 l/min | - | - | - | - | - | - | - | - | Distributor single | 0.593 kg |
| 0821300911 | 3/2 shut-off valve Mechanical Activated Series NL4-BAV 0821300911 NL4-SOV-G012-SOM-MAN-SS | Lever | Mechanical | - | Shut-off valve | G 1/2 | G 1/2 | - | - | - | - | - | - | - | Ball valve | - | - | - | - | - | - | Zinc die casting | - | Polyoxymethylene | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | - | - | - | 60 °C | - | 60 °C | 16 bar | - | Compressed air, neutral gases | -10 °C | -10 °C | - | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 11000 l/min | 11000 l/min | - | 110 l/min | - | Metallically sealing | - | - | Lockable | - | - | 0.82 kg |
| 0821300913 | 3/2 shut-off valve Mechanical Activated Series NL4-BAV 0821300913 NL4-SOV-G034-SOM-MAN-SS | Lever | Mechanical | - | Shut-off valve | G 3/4 | G 1/2 | - | - | - | - | - | - | - | Ball valve | - | - | - | - | - | - | Zinc die casting | - | Polyoxymethylene | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | - | - | - | 60 °C | - | 60 °C | 16 bar | - | Compressed air, neutral gases | -10 °C | -10 °C | - | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 11000 l/min | 11000 l/min | - | 110 l/min | - | Metallically sealing | - | - | Lockable | - | - | 0.82 kg |
| 0821300982 | 3/2 shut-off valve Mechanical Activated Series NL4-BAV 0821300982 NL4-BAV-G012-3/2NO-MAN-SS-2 | Rotary knob | Mechanical | - | Shut-off valve | G 1/2 | G 1/2 | - | - | - | - | - | - | - | Ball valve | - | - | - | - | - | - | Zinc die casting | - | Polyoxymethylene | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | - | - | - | 60 °C | - | 60 °C | 16 bar | - | Compressed air, neutral gases | -10 °C | -10 °C | - | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 11000 l/min | 11000 l/min | - | 110 l/min | - | Metallically sealing | - | - | Lockable | - | - | 0.82 kg |
| 0821300983 | 3/2 shut-off valve Mechanical Activated Series NL4-BAV 0821300983 NL4-SOV-G012-SOM-MAN-SS | Rotary knob | Mechanical | - | Shut-off valve | G 3/4 | G 1/2 | - | - | - | - | - | - | - | Ball valve | - | - | - | - | - | - | Zinc die casting | - | Polyoxymethylene | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | - | - | - | 60 °C | - | 60 °C | 16 bar | - | Compressed air, neutral gases | -10 °C | -10 °C | - | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 11000 l/min | 11000 l/min | - | 110 l/min | - | Metallically sealing | - | - | Lockable | - | - | 0.82 kg |
| 0821300931 | 3/2-way valve pneumatic Activated Series NL4-SOV 0821300931 NL4-SOV-G012-SOP-PNE-SS | - | pneumatic | blockable | 3/2-way valve | G 1/2 | G 1/2 | - | - | - | - | - | - | - | Seat valve | - | - | - | - | - | - | Zinc die casting | - | - | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | - | - | - | 60 °C | 16 bar | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | 2.5 bar | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 4000 l/min | 4000 l/min | - | 1600 l/min | - | soft sealing | - | - | - | Pipe connection | - | 1 kg |
| 0821300932 | 3/2-way valve electric Activated Series NL4-SOV 0821300932 NL4-SOV-G012-SOE-024-SS | - | electric | blockable | 3/2-way valve | G 1/2 | G 1/2 | - | - | - | - | - | - | 4.8 W | Seat valve | 100 % | Plug | - | - | - | - | - | - | - | - | - | - | - | - | 5 µm | 60 °C | - | - | 10 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | - | - | - | 2.5 bar | - | - | 24 V | internal | - | - | IP65 | - | 4000 l/min | 4000 l/min | - | 1600 l/min | Polarity safe | soft sealing | ISO 6952 | - | - | Pipe connection | - | - |
| 0821300933 | 3/2-way valve electric Activated Series NL4-SOV 0821300933 NL4-SOV-G012-SOE-230-SS | - | electric | blockable | 3/2-way valve | G 1/2 | G 1/2 | - | - | - | - | - | - | - | Seat valve | 100 % | - | - | - | - | 8.5 VA | - | - | - | - | - | - | - | - | 5 µm | 60 °C | - | - | 10 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | - | - | - | 2.5 bar | 230 V | 230 V | - | internal | - | - | IP65 | - | 4000 l/min | 4000 l/min | - | 1600 l/min | - | soft sealing | ISO 6952 | 11.8 VA | - | Pipe connection | - | - |
| 0821300936 | Filling valve pneumatic Activated Series NL4-SSV 0821300936 NL4-SSV-G012-FIA | - | pneumatic | blockable | Filling valve | G 1/2 | - | - | - | - | - | - | - | - | Seat valve | - | - | - | - | - | - | Zinc die casting | - | - | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | Zinc die casting | - | 5 µm | 60 °C | 16 bar | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | 2.5 bar | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 4000 l/min | - | - | - | - | soft sealing | - | - | - | Pipe connection | - | 0.76 kg |
| 0821300935 | Filling valve pneumatic Activated Series NL4-SSV 0821300935 NL4-SSV-G012-FIR | - | pneumatic | blockable | Filling valve | G 1/2 | - | - | - | - | - | - | - | - | Seat valve | - | - | - | - | - | - | Zinc die casting | - | - | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | Zinc die casting | - | 5 µm | 60 °C | 16 bar | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | 2.5 bar | - | - | - | - | 0 bar | - | - | - | - | - | - | - | - | 4000 l/min | - | - | - | - | soft sealing | - | - | - | Pipe connection | - | 0.685 kg |
| 0821300949 | Filling unit pneumatic Activated Series NL4-SSU 0821300949 NL4-SSU-G012-SOP-PNE-SS | - | pneumatic | blockable | 3/2-way valve, filling valve | G 1/2 | G 1/2 | - | - | - | - | - | - | - | Seat valve | - | - | - | - | - | - | Zinc die casting | - | - | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | Zinc die casting | - | 5 µm | 60 °C | 16 bar | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | 2.5 bar | - | - | - | - | 0 bar | - | - | - | internal | - | - | - | - | 2500 l/min | 2500 l/min | - | 1600 l/min | - | soft sealing | - | - | - | Pipe connection | - | 1.69 kg |
| 0821300954 | Filling unit pneumatic Activated Series NL4-SSU 0821300954 NL4-SSU-G012-SOP-PNE-SS | - | pneumatic | blockable | 3/2-way valve, filling valve | G 1/2 | G 1/2 | - | - | - | - | - | - | - | Seat valve | - | - | - | - | - | - | Zinc die casting | - | - | Acrylonitrile butadiene styrene | - | Acrylonitrile butadiene rubber | Zinc die casting | - | 5 µm | 60 °C | 16 bar | - | 16 bar | - | Compressed air, neutral gases | - | -10 °C | 2.5 bar | - | - | - | - | 0 bar | - | - | - | internal | - | - | - | - | 2500 l/min | 2500 l/min | - | 1600 l/min | - | soft sealing | - | - | - | Pipe connection | - | 1.69 kg |
| 0821300950 | Filling unit electric Activated Series NL4-SSU 0821300950 NL4-SSU-G012-SOE-024-SS | - | electric | blockable | 3/2-way valve, filling valve | G 1/2 | G 1/2 | - | - | - | - | - | - | 4.8 W | Seat valve | 100 % | Plug | - | - | - | - | - | - | - | - | - | - | - | - | 5 µm | 60 °C | - | - | 10 bar | - | Compressed air, neutral gases | - | -10 °C | - | - | - | - | - | 2.5 bar | - | - | 24 V | internal | - | - | IP65 | - | 2500 l/min | 2500 l/min | - | 1600 l/min | Polarity safe | soft sealing | ISO 6952 | - | - | Pipe connection | - | - |
