| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | not available |
| Dimensions (L x W x H) | 160 cm x 80 cm x 80 cm |
| Country of origin** | CH🇨🇭 |
| Customs goods number | 84811099 |
| GTIN | 3661475995078 |
| RoHS compliant | On request |
| Manufacturer | Aventics |
Access to the official manufacturer catalog for compatible spare parts and repair kits.
| Dimension | Value |
|---|---|

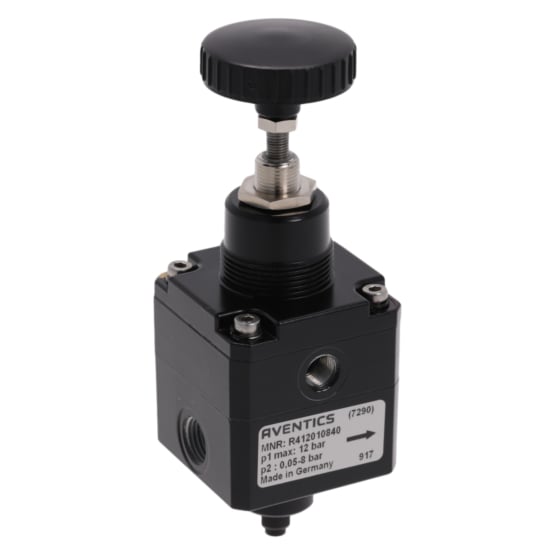

| Function | Precision pressure regulator |
| Components | Precision pressure control valve |
| Connection | G 1/4 |
| Qn = | 2000 l/min |
| Installation position | Arbitrary |
| Controller type | Diaphragm pressure control valves |
| Minimum pressure control range | 0.05 bar |
| Maximum pressure regulation range | 8 bar |
| Operating pressure min. | 0.5 bar |
| Maximum operating pressure | 16 bar |
| Minimum ambient temperature | 0 °C |
| Maximum ambient temperature | 60 °C |
| Actuation | Mechanical |
| Control function | With secondary ventilation |
| Pressure supply | one-sided |
| Internal air consumption qv max. | 1.5 l/min |
| Medium | Compressed air |
| Recommended pre-filtration | 5 µm |
| Weight | 0.24 kg |
| Housing material | Aluminum |
| Material seals | Acrylonitrile butadiene rubber |
excl. VAT
|will be calculated in cart
Product | Details | Actuation | Components | Connection | Control function | Controller type | Function | Housing material | Installation position | Internal air consumption qv max. | Material seals | Maximum ambient temperature | Maximum operating pressure | Maximum pressure regulation range | Medium | Minimum ambient temperature | Minimum pressure control range | Operating pressure min. | Pressure supply | Qn = | Recommended pre-filtration | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R412010840 | Precision pressure control valve Series PR2-RGP R412010840 PR2-RGP-G1/4-GAN-SS-P(0,05-8) | Mechanical | Precision pressure control valve | G 1/4 | With secondary ventilation | Diaphragm pressure control valves | Precision pressure regulator | Aluminum | Arbitrary | 1.5 l/min | Acrylonitrile butadiene rubber | 60 °C | 16 bar | 8 bar | Compressed air | 0 °C | 0.05 bar | 0.5 bar | one-sided | 2000 l/min | 5 µm | 0.24 kg |
| R412010480 | Precision pressure control valve Series PR2-RGP R412010480 PR2-RGP-G014-GAN-SS P(0,1-4,00) | Mechanical | Precision pressure control valve | G 1/4 | With secondary ventilation | Diaphragm pressure control valves | Precision pressure regulator | Polyamide | Arbitrary | 2.5 l/min | Acrylonitrile butadiene rubber | 60 °C | 12 bar | 4 bar | Compressed air | -10 °C | 0.1 bar | 0.5 bar | one-sided | 380 l/min | 5 µm | 0.24 kg |
| R412010481 | Precision pressure control valve Series PR2-RGP R412010481 PR2-RGP-G014-GAN-SS P(0,1-8,00) | Mechanical | Precision pressure control valve | G 1/4 | With secondary ventilation | Diaphragm pressure control valves | Precision pressure regulator | Polyamide | Arbitrary | 2.5 l/min | Acrylonitrile butadiene rubber | 60 °C | 12 bar | 8 bar | Compressed air | -10 °C | 0.1 bar | 0.5 bar | one-sided | 380 l/min | 5 µm | 0.24 kg |
