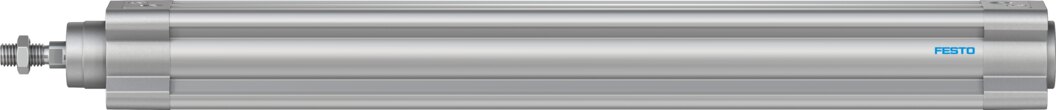

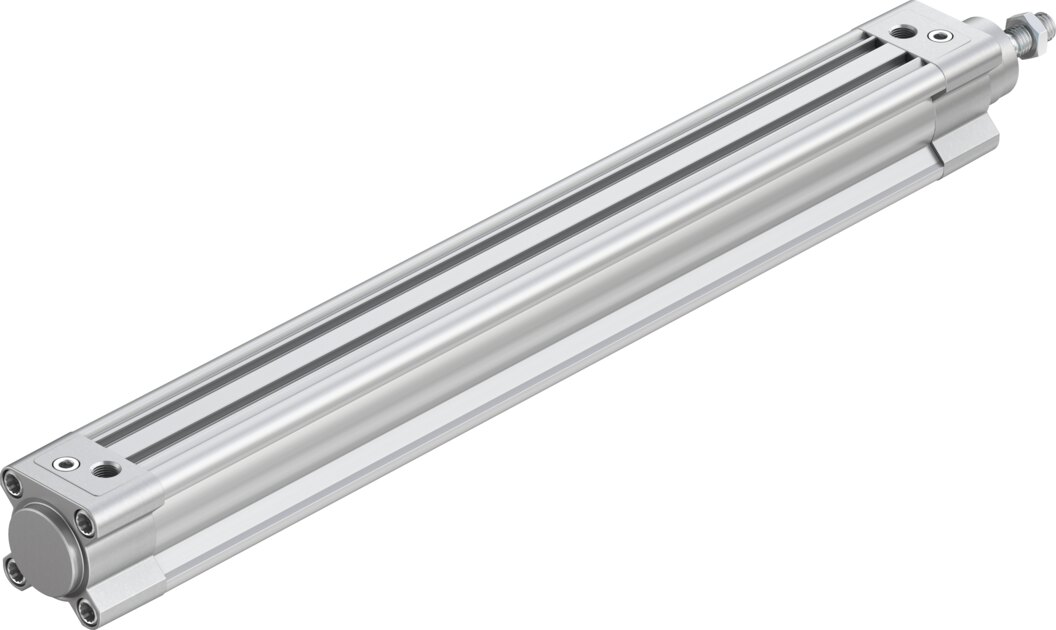

Festo Standard cylinderManufacturer type key:

Price & Availability

Availability:
Shipping:
Free shipping·No minimum order value|

Found it cheaper elsewhere? Send us the offer as a link or PDF, we usually match it.

Packaging Unit:
1 piece
or pay directly
We accept
Invoice
Prepayment
Visa
Mastercard
American Express
PayPal
Eps
Ideal
Przelewy24
We also supplyView range

Fittings & hoses

Threaded fittings, couplings, valves and hoses in brass, stainless steel and plastic.

Support

Advice on selection, alternatives and availability

Partbase Support, SupportFranz Bewerunge, SupportOle Dening, Support
Mon - Fri from 8:00 AM - 6:00 PM
+49 39203 863988 (German & English)sales@partbase.com (all languages)
Featured in
  • konstruktionspraxis
  • O+P Fluidtechnik
  • e-commerce magazin
  • Industrieanzeiger
Also via
  • Conrad Marketplace
  • SAP Ariba
  • Simple System

Features for 1376431 from Festo

Stroke
320 mm
Piston diameter
32 mm
Piston rod thread
M10x1,25
Cushioning
pneumatic cushioning, adjustable at both ends
Mounting position
any
Conforms to standard
ISO 15552
Piston rod end
External thread
Construction
PistonPiston rodProfile tube
Position sensing
for proximity switches
Symbol
00991235
Variants
single-ended piston rod
Operating pressure
0.06 MPa ... 1.2 MPa
Operating pressure
0.6 bar ... 12 bar
Mode of operation
double-acting
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating/pilot medium
Lubricated operation possible (subsequently required for further operation)
Corrosion resistance class CRC
2 - moderate corrosion stress
LABS conformity
VDMA24364-B1/B2-L
Cleanroom suitability, measured to ISO 14644-14
Class 5 to ISO 14644-1
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.4 J
Cushioning length
17 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting
415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advancing
483 N
Moving mass
398 g
Moving mass at 0 mm stroke
110 g
Additional moving mass per 10 mm stroke
9 g
Basic weight at 0 mm stroke
465 g
Additional weight per 10 mm stroke
27 g
Mounting type
with female threadwith accessories
Pneumatic connection
G1/8
Materials note
RoHS-compliant
Cover material
Die-cast aluminium, coated
Piston seal material
TPE-U(PU)
Piston material
Wrought aluminium alloy
Piston rod material
High-alloy steel
Piston rod wiper seal material
TPE-U(PU)
Cushioning seal material
TPE-U(PU)
Buffer piston material
POM
Cylinder barrel material
Wrought aluminium alloy, hard-anodised
Nut material
Steel, galvanised
Bearing material
POM
Collar screw material
Steel, galvanised
Documents

Manufacturer article description

Standards-based profile cylinder to ISO 15552 with a wide variety of mounting options.

Further information for 1376431 from Festo

Article authenticity
Original article
Article condition
New
Single weight
1,33 kg
Dimensions (L x W x H)
not available
Country of origin**
On request
Customs goods number
84123100
GTIN
4052568016630
RoHS compliant
Yes
Manufacturer
Festo
