| Dimension | Value |
|---|---|
| Actuation | electric |
| Rated flow Qn | 300 l/min |

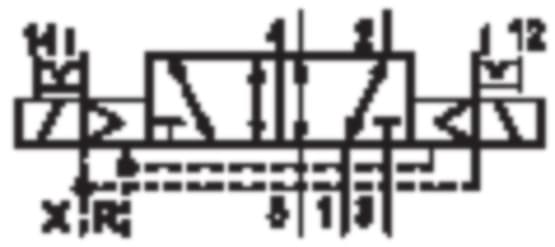

| Switching principle | 5/2 |
| Operating pressure min. | -0.9 bar |
| Maximum operating pressure | 10 bar |
| Operating voltage DC | 24 V |
| Voltage tolerance DC | -10% / +10% |
| Manual auxiliary operation |
| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | not available |
| Dimensions (L x W x H) | 80 cm x 40 cm x 10 cm |
| Country of origin** | FR🇫🇷 |
| Customs goods number | 90328100 |
| GTIN | 3666750020629 |
| RoHS compliant |
Access to the official manufacturer catalog for compatible spare parts and repair kits.
| On request |

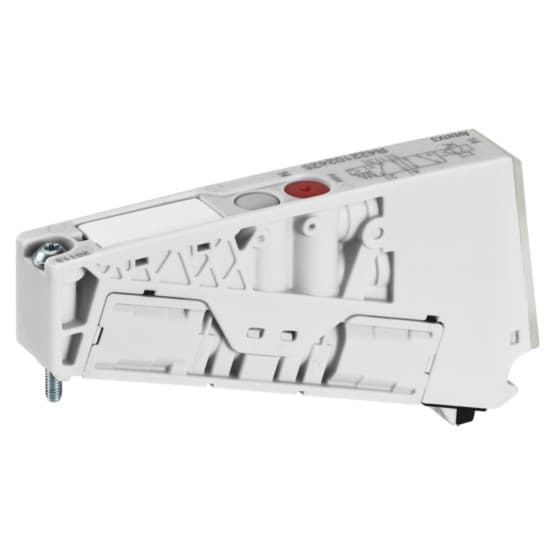

| Manufacturer | Aventics |
| Notched |
| Actuation function | Double-acting |
| Sealing principle | soft sealing |
| Pre-control | External |
| Valve type | Slide valve, without overlap |
| Type of connection | Plate connection |
| Blocking principle | Base plate principle multiple |
| Minimum control pressure | 3 bar |
| Maximum control pressure | 8 bar |
| Minimum ambient temperature | -10 °C |
| Maximum ambient temperature | 60 °C |
| Medium temperature min. | -10 °C |
| Maximum medium temperature | 60 °C |
| Medium | Compressed air |
| Max. particle size | 40 µm |
| Minimum oil content in compressed air | 0 mg/m³ |
| Maximum oil content in compressed air | 5 mg/m³ |
| Control air venting | With vented control air |
excl. VAT
|will be calculated in cart
excl. VAT
|will be calculated in cart
Product | Details | Actuation | Actuation function | Blocking principle | Control air venting | Execution | Flow conductance b | Function | Manual auxiliary operation | Max. particle size | Maximum ambient temperature | Maximum control pressure | Maximum medium temperature | Maximum oil content in compressed air | Maximum operating pressure | Medium | Medium temperature min. | Minimum ambient temperature | Minimum control pressure | Minimum oil content in compressed air | Operating pressure min. | Operating voltage DC | Pre-control | Provision | Rated flow Qn | Sealing principle | Switching principle | Type of connection | Valve type | Voltage tolerance DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R422102436 | 2x2/2-way valve Series AV03 R422102436 AV03-2/2CC-VT00-024VDC-LOC | electric | Double-acting | Base plate principle multiple | - | NC/NC | - | - | Notched | 40 µm | 60 °C | 8 bar | 60 °C | - | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 280 l/min | soft sealing | 2x2/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102437 | 2x2/2-way valve Series AV03 R422102437 AV03-2/2CC-VT00-024VDC-NLC | electric | Double-acting | Base plate principle multiple | - | NC/NC | - | - | Notched | 40 µm | 60 °C | 8 bar | 60 °C | - | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 280 l/min | soft sealing | 2x2/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102430 | 2x3/2-way valve Series AV03 R422102430 AV03-3/2CC-VT00-024VDC-LOC | electric | Double-acting | Base plate principle multiple | - | NC/NC | - | - | Notched | 40 µm | 60 °C | 8 bar | 60 °C | - | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 300 l/min | soft sealing | 2x3/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102432 | 2x3/2-way valve Series AV03 R422102432 AV03-3/2OO-VT00-024VDC-LOC | electric | Double-acting | Base plate principle multiple | - | NO/NO | - | - | Notched | 40 µm | 60 °C | 8 bar | 60 °C | - | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 250 l/min | soft sealing | 2x3/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102434 | 2x3/2-way valve Series AV03 R422102434 AV03-3/2CO-VT00-024VDC-LOC | electric | Double-acting | Base plate principle multiple | - | NC/NO | - | - | Notched | 40 µm | 60 °C | 8 bar | 60 °C | - | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 250 l/min | soft sealing | 2x3/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102431 | 2x3/2-way valve Series AV03 R422102431 AV03-3/2CC-VT00-024VDC-NLC | electric | Double-acting | Base plate principle multiple | - | NC/NC | - | - | Not latching | 40 µm | 60 °C | 8 bar | 60 °C | - | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 300 l/min | soft sealing | 2x3/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102433 | 2x3/2-way valve Series AV03 R422102433 AV03-3/2OO-VT00-024VDC-NLC | electric | Double-acting | Base plate principle multiple | - | NO/NO | - | - | Not latching | 40 µm | 60 °C | 8 bar | 60 °C | - | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 250 l/min | soft sealing | 2x3/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102435 | 2x3/2-way valve Series AV03 R422102435 AV03-3/2CO-VT00-024VDC-NLC | electric | Double-acting | Base plate principle multiple | - | NC/NO | - | - | Not latching | 40 µm | 60 °C | 8 bar | 60 °C | - | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 250 l/min | soft sealing | 2x3/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102503 | 5/2-way valve Series AV03 R422102503 AV03-5/2AR-VT00-024VDC-LOC | electric | Single-sided actuated | Base plate principle multiple | - | - | - | - | Notched | 40 µm | 60 °C | 8 bar | 60 °C | 5 mg/m³ | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With air spring return | 300 l/min | soft sealing | 5/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102504 | 5/2-way valve Series AV03 R422102504 AV03-5/2AR-VT00-024VDC-NLC | electric | Single-sided actuated | Base plate principle multiple | - | - | - | - | Not latching | 40 µm | 60 °C | 8 bar | 60 °C | 5 mg/m³ | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With air spring return | 300 l/min | soft sealing | 5/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102426 | 5/2-way valve Series AV03 R422102426 AV03-5/2DS-VT00-024VDC-LOC | electric | Double-acting | Base plate principle multiple | With vented control air | - | - | - | Notched | 40 µm | 60 °C | 8 bar | 60 °C | 5 mg/m³ | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | - | 300 l/min | soft sealing | 5/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102424 | 5/2-way valve Series AV03 R422102424 AV03-5/2AS-VT00-024VDC-LOC | electric | Single-sided actuated | Base plate principle multiple | - | - | - | - | Notched | 40 µm | 60 °C | 8 bar | 60 °C | 5 mg/m³ | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring/air spring return | 300 l/min | soft sealing | 5/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102427 | 5/2-way valve Series AV03 R422102427 AV03-5/2DS-VT00-024VDC-NLC | electric | Double-acting | Base plate principle multiple | With vented control air | - | - | - | Not latching | 40 µm | 60 °C | 8 bar | 60 °C | 5 mg/m³ | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | - | 300 l/min | soft sealing | 5/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102425 | 5/2-way valve Series AV03 R422102425 AV03-5/2AS-VT00-024VDC-NLC | electric | Single-sided actuated | Base plate principle multiple | - | - | - | - | Not latching | 40 µm | 60 °C | 8 bar | 60 °C | 5 mg/m³ | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring/air spring return | 300 l/min | soft sealing | 5/2 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102428 | 5/3-way valve Series AV03 R422102428 AV03-5/3CC-VT00-024VDC-LOC | electric | Double-acting | Base plate principle multiple | - | Closed center position | - | - | Notched | 40 µm | 60 °C | 8 bar | 60 °C | - | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 240 l/min | soft sealing | 5/3 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102429 | 5/3-way valve Series AV03 R422102429 AV03-5/3CC-VT00-024VDC-NLC | electric | Double-acting | Base plate principle multiple | - | Closed center position | - | - | Not latching | 40 µm | 60 °C | 8 bar | 60 °C | - | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 240 l/min | soft sealing | 5/3 | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102856 | 2x3/2-way valve Series AV03 R422102856 AV03-2X3/2CC-NLC-TRANSITORY OPEN | electric | Double-acting | Base plate principle multiple | - | - | - | - | Not latching | 40 µm | 60 °C | 8 bar | 60 °C | 5 mg/m³ | 10 bar | Compressed air | -10 °C | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | With spring return | 300 l/min | soft sealing | 2x3/2 | Plate connection | Slide valve, non-overlapping | -10% / +10% |
| R422102875 | 5/3-way valve Series AV03 R422102875 AV03-5/3EC-VT00-024VDC-NLC | electric | Double-acting | Base plate principle multiple | With vented control air | - | 0.32 | Ventilated center position | Not latching | 40 µm | -10 °C, 60 °C | 8 bar | - | 5 mg/m³ | 10 bar | Compressed air | - | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | - | 240 l/min | soft sealing | 5/3, vented center position | Plate connection | Slide valve, without overlap | -10% / +10% |
| R422102876 | 5/3-way valve Series AV03 R422102876 AV03-5/3EC-VT00-024VDC-LOC | electric | Double-acting | Base plate principle multiple | With vented control air | - | 0.32 | Ventilated center position | Notched | 40 µm | 60 °C, -10 °C | 8 bar | - | 5 mg/m³ | 10 bar | Compressed air | - | -10 °C | 3 bar | 0 mg/m³ | -0.9 bar | 24 V | External | - | 240 l/min | soft sealing | 5/3, vented center position | Plate connection | Slide valve, without overlap | -10% / +10% |
