| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | 576,00 kg |
| Dimensions (L x W x H) | not available |
| Country of origin** | NL🇳🇱 |
| Customs goods number | 84254200 |
| GTIN | On request |
| RoHS compliant | On request |
| Manufacturer | Enerpac |
| Dimension | Value |
|---|---|
| type | JackUpSystem |
| Subtypes | Self-locking cube jack |
| Series | SCJ |
| Compatible products | SFP404SJ SFP409SJ SFP604SJ SFP613SJ SFP813SJ SFP404SW SFP409SW SFP604SW SFP613SW SFP813SW |
| Maximum operating pressure in bar | 700 |
| Maximum operating pressure in psi | 10,000 |
| Minimum pump flow rate (gal) | 2.6 |
| Adjustable stroke swivel saddle (mm) | 50 |
| Lifting stroke (mm) | 156 |
| Lifting capacity per base unit (kN) | 500 |
| Lift capacity per base unit (metric ton) | 50 |
| Base block weight (lbs) | 35 |
| End block weight (lbs) | 88 |
| Basic unit weight (lbs) | 794 |
| Oil quantity per base unit, running in (inches3) | 38 |
| Oil quantity per base unit, extension (inches3) | 75 |
| Maximum side load (m) | 1,5% @ 2m |
| Adjustable stroke swivel saddle | 2 |
| Lifting stroke | 6.14 |
| Hub capacity per base unit (imperial ton) | 56 |
| Oil quantity per base unit, traveling (cm3) | 624 |
| Basic unit weight (kg) | 360 |
| Minimum pump flow rate (l) | 10 |
| Oil quantity per base unit, extension (cm3) | 1225 |
| End block weight (kg) | 40 |
| Base block weight (kg) | 16 |
| Maximum side load (ft) | 1,5% @ 6.5 |

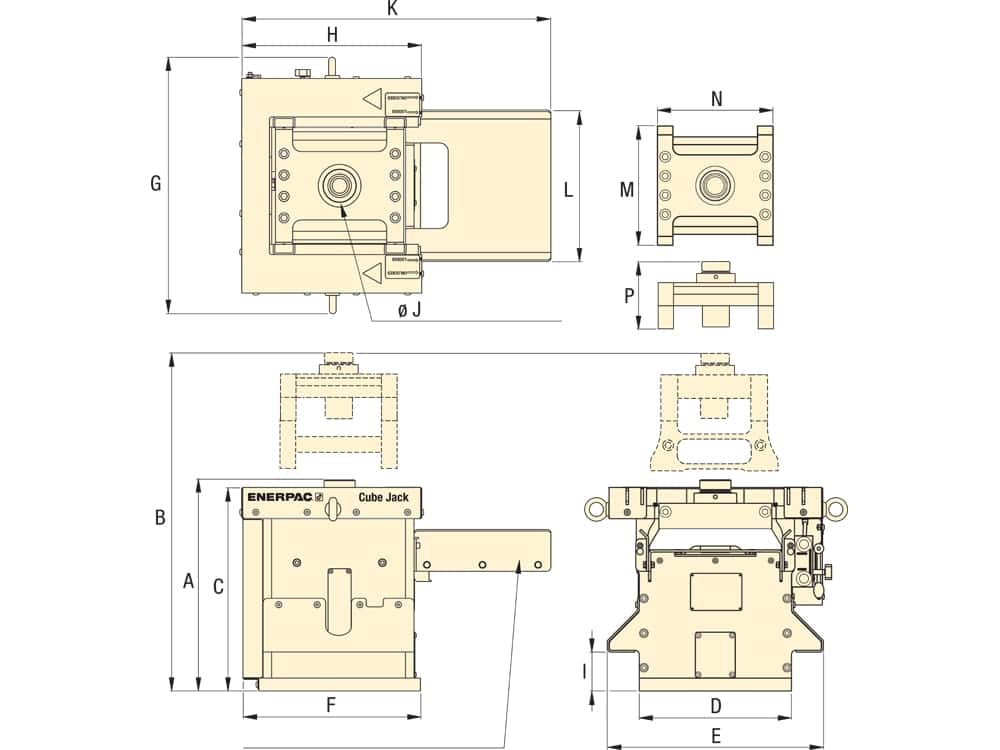

| Dimension G (mm) | 556 |
| Dimension E (inches) | 19.9 |
| Maximum allowed oil flow (l/min) | 0,90 |
| Dimension L (mm) | 351 |
| DimensionPmax_in | 8.9 |
| Dimension F (mm) | 443 |
| DimensionM_in | 11.8 |
| Dimension D (inches) | 14 |
| Dimension Pm (inches) | 175 |
| Dimension C (inches) | 18.7 |
| Dimension K (inches) | 28.6 |
| dimensionL_in | 13.8 |
| DimensionPmax_mm | 225 |
| Dimension E (mm) | 505 |
| Dimension B (inches) | 81.4 |
| Dimension J (inches) | 4.92 |
| MinimumHeightIncludingEndBlockIn | 19.4 |
| Dimension Pm (inches) | 6.9 |
| Dimension D (mm) | 356 |
| Dimension A (inches) | 19.4 |
| Dimension K (mm) | 726 |
| DimensionQ_in | 4.9 |
| Maximum lifting height with 11cb and 50mm swivel saddle screw_mm | 2067 |
| Dimension C (mm) | 476 |
| Dimension I (mm) | 91 |
| Dimension J (mm) | 125 |
| Dimension H (inches) | 16.9 |
| DimensionN_mm | 310 |
| Minimum height including end block (mm) | 494 |
| Maximum lifting height with 11cb and swivel saddle screw | 81.4 |
| Dimension B (mm) | 2067 |
| Dimension G (inches) | 21.9 |
| Maximum allowed oil flow in 3 minutes | 65 |
| DimensionQ_mm | 125 |
| Dimension A (mm) | 494 |
| DimensionI_in | 3.6 |
| Dimension H (mm) | 428 |
| Dimension F (inches) | 17.4 |
| Dimension M mm | 300 |
| DimensionN_in | 12.2 |
Product | Details | Adjustable stroke swivel saddle | Adjustable stroke swivel saddle (mm) | Base block weight (kg) | Base block weight (lbs) | Basic unit weight (kg) | Basic unit weight (lbs) | Compatible products | Dimension A (inches) | Dimension A (mm) | Dimension B (inches) | Dimension B (mm) | Dimension C (inches) | Dimension C (mm) | Dimension D (inches) | Dimension D (mm) | Dimension E (inches) | Dimension E (mm) | Dimension F (inches) | Dimension F (mm) | Dimension G (inches) | Dimension G (mm) | Dimension H (inches) | Dimension H (mm) | Dimension I (mm) | Dimension J (inches) | Dimension J (mm) | Dimension K (inches) | Dimension K (mm) | Dimension L (mm) | Dimension M mm | Dimension Pm (inches) | DimensionI_in | dimensionL_in | DimensionM_in | DimensionN_in | DimensionN_mm | DimensionPmax_in | DimensionPmax_mm | DimensionQ_in | DimensionQ_mm | End block weight (kg) | End block weight (lbs) | Hub capacity per base unit (imperial ton) | Lift capacity per base unit (metric ton) | Lifting capacity per base unit (kN) | Lifting stroke | Lifting stroke (mm) | Maximum allowed oil flow (l/min) | Maximum allowed oil flow in 3 minutes | Maximum lifting height with 11cb and 50mm swivel saddle screw_mm | Maximum lifting height with 11cb and swivel saddle screw | Maximum operating pressure in bar | Maximum operating pressure in psi | Maximum side load (ft) | Maximum side load (m) | Minimum height including end block (mm) | Minimum pump flow rate (gal) | Minimum pump flow rate (l) | MinimumHeightIncludingEndBlockIn | Oil quantity per base unit, extension (cm3) | Oil quantity per base unit, extension (inches3) | Oil quantity per base unit, running in (inches3) | Oil quantity per base unit, traveling (cm3) | Series | Subtypes | type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCJ-50 | Self-locking cube jack | 2 | 50 | 16 | 35 | 360 | 794 | SFP404SJ, SFP409SJ, SFP604SJ, SFP613SJ, SFP813SJ, SFP404SW, SFP409SW, SFP604SW, SFP613SW, SFP813SW | 19.4 | 494 | 81.4 | 2067 | 18.7 | 476 | 14 | 356 | 19.9 | 505 | 17.4 | 443 | 21.9 | 556 | 16.9 | 428 | 91 | 4.92 | 125 | 28.6 | 726 | 351 | 300 | 175 | 3.6 | 13.8 | 11.8 | 12.2 | 310 | 8.9 | 225 | 4.9 | 125 | 40 | 88 | 56 | 50 | 500 | 6.14 | 156 | 0,90 | 65 | 2067 | 81.4 | 700 | 10,000 | 1,5% @ 6.5 | 1,5% @ 2m | 494 | 2.6 | 10 | 19.4 | 1225 | 75 | 38 | 624 | SCJ | Self-locking cube jack | JackUpSystem |
| SCJ-100 | Self-locking cube jack | 2 | 50 | 23,5 | 51.7 | 820 | 1804 | SFP404SJ, SFP409SJ, SFP604SJ, SFP613SJ, SFP813SJ, SFP404SW, SFP409SW, SFP604SW, SFP613SW, SFP813SW | 22 | 558 | 118.3 | 3006 | 20.7 | 526 | 19.9 | 506 | 25.8 | 655 | 25 | 636 | 30.4 | 772 | 23.5 | 598 | 101 | 6.69 | 170 | 41.2 | 1046 | 504 | 450 | 189 | 4 | 19.8 | 17.7 | 18.1 | 460 | 9.4 | 239 | 4.9 | 125 | 100 | 220 | 110 | 100 | 1000 | 6.14 | 156 | - | - | 3006 | 118.3 | 700 | 10,000 | 1.5% @ 9.8 | 1,5% @ 3m | 558 | - | - | 21.97 | 2500 | 152 | 85 | 1400 | SCJ | Self-locking cube jack | JackUpSystem |
