| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | not available |
| Dimensions (L x W x H) | not available |
| Country of origin** | On request |
| Customs goods number | On request |
| GTIN | On request |
| RoHS compliant | On request |
| Manufacturer | Aventics |
Access to the official manufacturer catalog for compatible spare parts and repair kits.
| Dimension | Value |
|---|---|
| Actuation | electric |

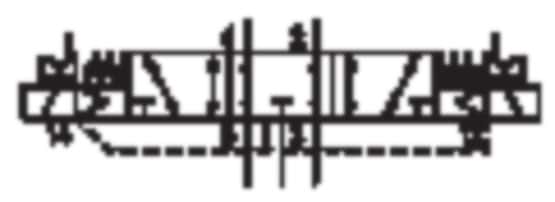

| Valve function | Ventilated center position |
| Actuation function | Double-acting |
| Pre-control | External |
| Rated flow Qn | 600 l/min |
| Operating pressure min. | 2 bar |
| Maximum operating pressure | 8 bar |
| Operating voltage | 24 V DC |
| Voltage tolerance DC | -15% / +10% |
| Protection rating with connection | IP65 |
| Reverse polarity protection | Polarity safe |
| Sealing principle | soft sealing |
| DC power consumption | 1.4 W |
| Duty cycle | 100 % |
| Typ. switch-on time | 18 ms |
| Typ. switch-off time | 45 ms |
| Minimum ambient temperature | -10 °C |
| Maximum ambient temperature | 50 °C |
| Weight | 0.236 kg |
| Housing material | Zinc die casting |
| Medium | Compressed air |
| Max. particle size | 50 µm |
| Minimum oil content in compressed air | 0 mg/m³ |
| Maximum oil content in compressed air | 5 mg/m³ |
| Control air venting | With vented control air |
excl. VAT
|will be calculated in cart
Product | Details | Actuation | Actuation function | Control air venting | DC power consumption | Duty cycle | Housing material | Max. particle size | Maximum ambient temperature | Maximum medium temperature | Maximum oil content in compressed air | Maximum operating pressure | Medium | Minimum ambient temperature | Minimum oil content in compressed air | Operating pressure min. | Operating voltage | Pre-control | Protection rating with connection | Rated flow Qn | Reverse polarity protection | Sealing principle | Typ. switch-off time | Typ. switch-on time | Valve function | Voltage tolerance DC | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R503A1B10MA00F1 | 5/2-way valve Series 503 R503A1B10MA00F1 DIST. 503 (26MM) 5/2, SPRING RETURN SPOO | electric | Single-sided actuated | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1200 l/min | Polarity safe | Metallically sealing | 60 ms | 20 ms | - | -15% / +10% | 0.236 kg |
| R503A1B10M11BF1 | 5/2-way valve Series 503 R503A1B10M11BF1 DIST. 503 (26MM) 5/2, SPRING RETURN SPOO | electric | Single-sided actuated | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1200 l/min | Polarity safe | Metallically sealing | 60 ms | 20 ms | - | -15% / +10% | 0.236 kg |
| R503A2B10MA00F1 | 5/2-way valve Series 503 R503A2B10MA00F1 SPOOL VALVE ISO15704-2 5/2 SOLENOID SPRI | electric | Single-sided actuated | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1400 l/min | Polarity safe | soft sealing | 60 ms | 20 ms | - | -15% / +10% | 0.236 kg |
| R503A2B10M11BF1 | 5/2-way valve Series 503 R503A2B10M11BF1 DIST. 503 (26MM) 5/2, SPRING RETURN RUBB | electric | Single-sided actuated | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1400 l/min | Polarity safe | soft sealing | 60 ms | 20 ms | - | -15% / +10% | 0.236 kg |
| R503A2BN0MA00F1 | 5/2-way valve Series 503 R503A2BN0MA00F1 DIST. 503 (26MM) 5/2 DIFFERENTIAL AIR RE | electric | Single-sided actuated | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1400 l/min | Polarity safe | soft sealing | 40 ms | 28 ms | - | -15% / +10% | 0.236 kg |
| R503A2BN0M11BF1 | 5/2-way valve Series 503 R503A2BN0M11BF1 DIST. 503 (26MM) 5/2 DIFFERENTIAL AIR RE | electric | Single-sided actuated | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1400 l/min | Polarity safe | soft sealing | 40 ms | 28 ms | - | -15% / +10% | 0.236 kg |
| R503A1B40MA00F1 | 5/2-way valve Series 503 R503A1B40MA00F1 DIST. 503 (26MM) 5/2, SOLENOID AIR RETUR | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | - | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1200 l/min | Polarity safe | Metallically sealing | 15 ms | 15 ms | - | -15% / +10% | 0.236 kg |
| R503A1B40M11BF1 | 5/2-way valve Series 503 R503A1B40M11BF1 DIST. 503 (26MM) 5/2, SOLENOID AIR RETUR | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | - | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1200 l/min | Polarity safe | Metallically sealing | 15 ms | 15 ms | - | -15% / +10% | 0.236 kg |
| R503A2B40M11BF1 | 5/2-way valve Series 503 R503A2B40M11BF1 DIST. 503 (26MM) 5/2, SOLENOID AIR RETUR | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | - | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1400 l/min | Polarity safe | soft sealing | 20 ms | 20 ms | - | -15% / +10% | 0.236 kg |
| R503A2B40MA00F1 | 5/2-way valve Series 503 R503A2B40MA00F1 DIST. 503 (26MM) 5/2, SOLENOID AIR RETUR | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1400 l/min | Polarity safe | soft sealing | 20 ms | 20 ms | - | -15% / +10% | 0.236 kg |
| R503A1B50MA00F1 | 5/3-way valve Series 503 R503A1B50MA00F1 DOUBLE SOL 5/3 W3 OPEN CENTER SPOOL AND | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1000 l/min | Polarity safe | Metallically sealing | 60 ms | 20 ms | Ventilated center position | -15% / +10% | 0.236 kg |
| R503A1B70MA00F1 | 5/3-way valve Series 503 R503A1B70MA00F1 DOUBLE SOL 5/3 W2 SPOOL AND SLEEVE IMPUL | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1000 l/min | Polarity safe | Metallically sealing | 60 ms | 20 ms | Ventilated center position | -15% / +10% | 0.236 kg |
| R503A1B50M11BF1 | 5/3-way valve Series 503 R503A1B50M11BF1 VALVE SPOOL AND SLEEVE 5/3 DUAL PRESSURE | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1000 l/min | Polarity safe | Metallically sealing | 60 ms | 20 ms | Ventilated center position | -15% / +10% | 0.236 kg |
| R503A1B70M11BF1 | 5/3-way valve Series 503 R503A1B70M11BF1 SPOOL VALVE 5/3 COIL 24/DC SPOOL AND SLE | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1000 l/min | Polarity safe | Metallically sealing | 60 ms | 20 ms | Ventilated center position | -15% / +10% | 0.236 kg |
| R503A2B60MA00F1 | 5/3-way valve Series 503 R503A2B60MA00F1 DIST. 503 (26MM) 5/3 W1, CENTER CLOSED R | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1400 l/min | Polarity safe | soft sealing | 20 ms | 15 ms | Closed center position | -15% / +10% | 0.236 kg |
| R503A2B70MA00F1 | 5/3-way valve Series 503 R503A2B70MA00F1 DIST. 503 (26MM) 5/3 W2, OPEN TO ADMISSI | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1300 l/min | Polarity safe | soft sealing | 45 ms | 18 ms | Ventilated center position | -15% / +10% | 0.236 kg |
| R503A2B50M11BF1 | 5/3-way valve Series 503 R503A2B50M11BF1 DIST. 503 (26MM) 5/3 W3, OPEN TO RELEASE | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 600 l/min | Polarity safe | soft sealing | 45 ms | 18 ms | Ventilated center position | -15% / +10% | 0.236 kg |
| R503A2B60M11BF1 | 5/3-way valve Series 503 R503A2B60M11BF1 DIST. 503 (26MM) 5/3 W1, CENTER CLOSED R | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1400 l/min | Polarity safe | soft sealing | 20 ms | 15 ms | Closed center position | -15% / +10% | 0.236 kg |
| R503A2B70M11BF1 | 5/3-way valve Series 503 R503A2B70M11BF1 DIST. 503 (26MM) 5/3 W2, OPEN TO ADMISSI | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1300 l/min | Polarity safe | soft sealing | 45 ms | 18 ms | Ventilated center position | -15% / +10% | 0.236 kg |
| R503A2B50MA00F1 | 5/3-way valve Series 503 R503A2B50MA00F1 DIST. 503 (26MM) 5/3 W3, OPEN TO RELEASE | electric | Double-acting | With vented control air | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | - | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 600 l/min | Polarity safe | soft sealing | 45 ms | 18 ms | Ventilated center position | -15% / +10% | 0.236 kg |
| R503A2BD0MA00F1 | 2x3/2-way valve Series 503 R503A2BD0MA00F1 DIST. 503 (26MM) DUAL 3/2, A NC - B NC R | electric | Double-acting | - | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | 50 °C | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 1000 l/min | Polarity safe | soft sealing | 20 ms | 15 ms | NC/NC | -15% / +10% | 0.236 kg |
| R503A2BA0MA00F1 | 2x3/2-way valve Series 503 R503A2BA0MA00F1 DIST. 503 2X3/2 A&B NO ETANCH. JOINTS PL | electric | Double-acting | - | 1.4 W | 100 % | Zinc die casting | 50 µm | 50 °C | 50 °C | 5 mg/m³ | 8 bar | Compressed air | -10 °C | 0 mg/m³ | 2 bar | 24 V DC | External | IP65 | 950 l/min | Polarity safe | soft sealing | 20 ms | 15 ms | NO/NO | -15% / +10% | 0.236 kg |
