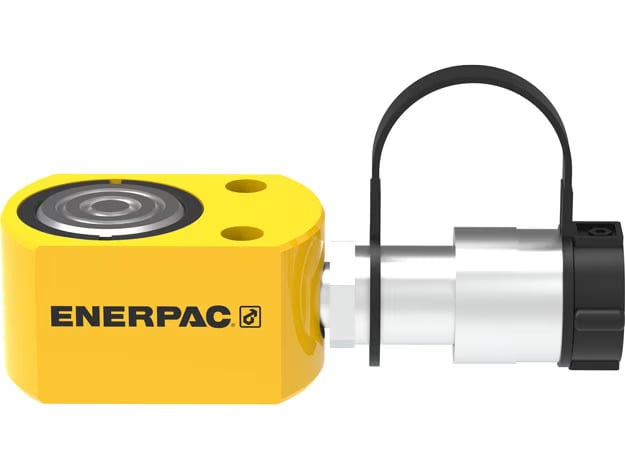

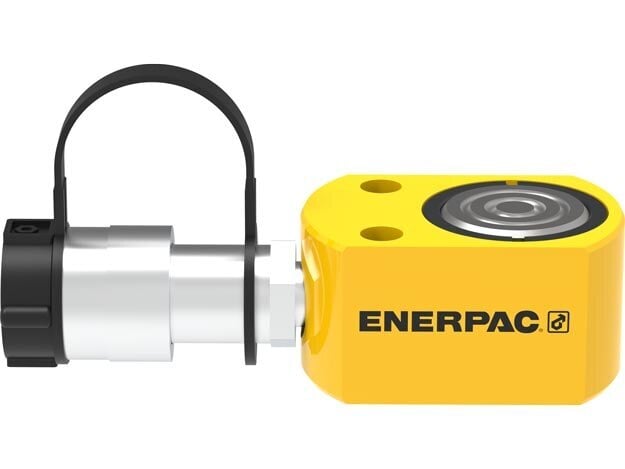

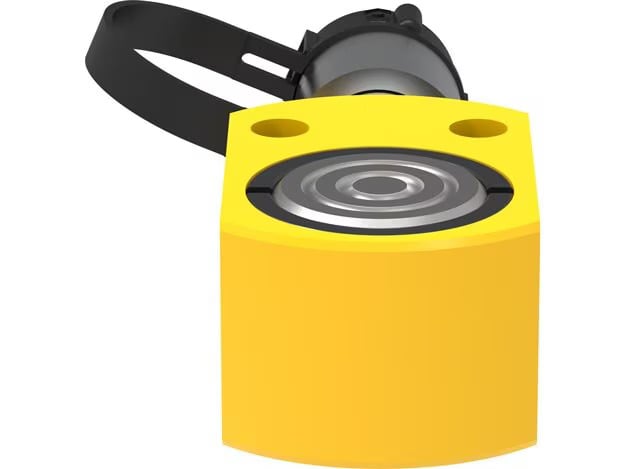

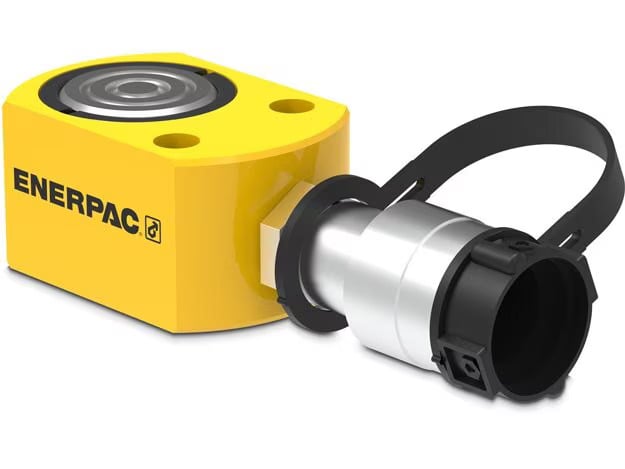

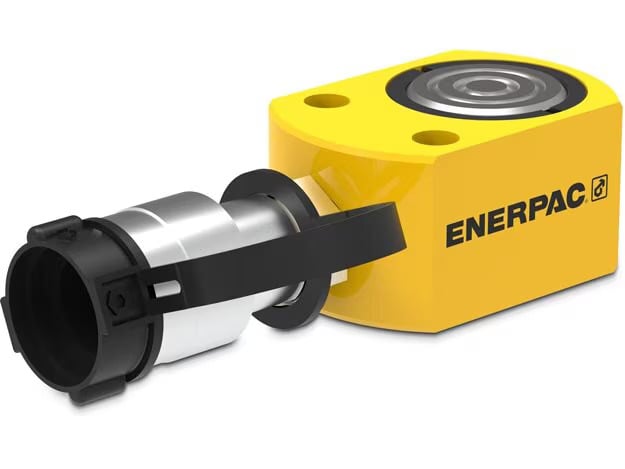

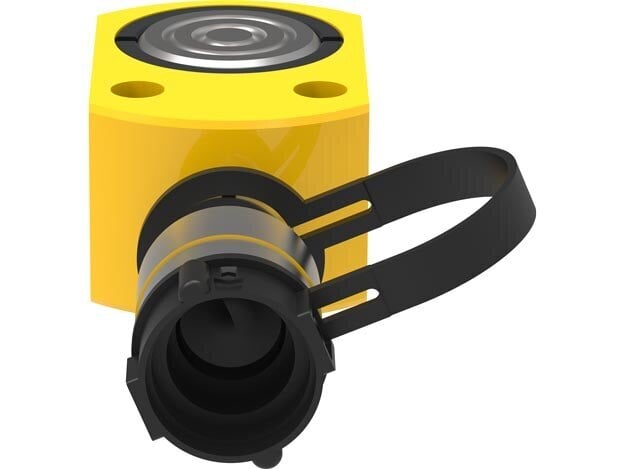

| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | 1,62 kg |
| Dimensions (L x W x H) | not available |
| Country of origin** | CN🇨🇳 |
| Customs goods number | 84122180 |
| GTIN | On request |
| RoHS compliant | On request |
| Manufacturer | Enerpac |
| Dimension | Value |
|---|---|
| type | Hydraulic cylinders |
| Subtypes | Short stroke cylinder |
| Series | RSM |
| Maximum operating pressure in bar | 700 |
| Maximum operating pressure in psi | 10,000 |
| Stroke range (inches) | 0 - 0.99 |
| Capacity class (inches tons) | 10 |
| Stroke range (mm) | 0 - 23 |
| Maximum operating pressure (psi) | 10,000 |
| Cylinder effective area Advance (inches3) | 2.24 |
| Oil Capacity Progress (inch3) | 0.98 |
| Maximum storage capacity (short tons) | 11.2 |
| Return type | Single-acting, spring return |
| Material | Steel |
| Piston Type | Full piston |
| Maximum cylinder force pressure (kN) | 101 |
| Effective piston area pressure (cm2) | 14,5 |
| Surface treatment | Paint |
| Oil capacity feed (cm3) | 18 |
| Coupler | CR400 Coupler |
| Piston for mounting hole M (mm) | 34 |
| Mounting hole distance U (mm) | 36,6 |
| Construction height extended B (mm) | 54 |
| Piston according to base L (mm) | 27 |
| Piston for mounting hole M (inch) | 1.34 |
| Construction height extended B (inches) | 2.13 |
| Piston to base L (inches) | 1.09 |
| Construction height retracted A (inches) | 1.69 |
| Outside diameter D (inches) | 3.25 x 2.19 |
| Mounting hole diameter V (inches) | 0.28 |
| Mounting hole diameter V (mm) | 7,1 |
| Cylinder bore diameter E (mm) | 42,9 |
| Retracted height A (mm) | 43 |
| Mounting hole distance U (inches) | 1.44 |
| Cylinder bore diameter E (inches) | 1.69 |
| Countersink depth of mounting hole (inches) | 0.31 |
| Saddle overhang from piston K (mm) | 1 |
| Base for feed connection H (inches) | 0.75 |
| Countersink depth of fixing hole (mm) | 7,9 |
| Saddle overhang from piston K1 (mm) | 1 |
| Outside diameter D (mm) | 82 x 55 |
| Countersink diameter of mounting hole (mm) | 10,7 |
| Construction height retracted (inches) | 0 - 4.99 |
| Piston rod diameter F (inches) | 1.5 |
| Mounting hole - countersink diameter (inches) | 0.422 |
| Construction height retracted (mm) | 0 - 127 |
| Saddle overhang from piston K (inches) | 0.04 |
| Piston rod diameter F (mm) | 38,1 |
| Base for feed connection H (mm) | 19 |
excl. VAT
|will be calculated in cart
Product | Details | Base for feed connection H (inches) | Base for feed connection H (mm) | Capacity class (inches tons) | Construction height extended B (inches) | Construction height extended B (mm) | Construction height retracted (inches) | Construction height retracted (mm) | Construction height retracted A (inches) | Countersink depth of fixing hole (mm) | Countersink depth of mounting hole (inches) | Countersink diameter of mounting hole (mm) | Coupler | Cylinder bore diameter E (inches) | Cylinder bore diameter E (mm) | Cylinder effective area Advance (inches3) | Effective piston area pressure (cm2) | Material | Maximum cylinder force pressure (kN) | Maximum operating pressure (psi) | Maximum operating pressure in bar | Maximum operating pressure in psi | Maximum storage capacity (short tons) | Mounting hole - countersink diameter (inches) | Mounting hole diameter V (inches) | Mounting hole diameter V (mm) | Mounting hole distance U (inches) | Mounting hole distance U (mm) | Oil capacity feed (cm3) | Oil Capacity Progress (inch3) | Outside diameter D (inches) | Outside diameter D (mm) | Piston according to base L (mm) | Piston for mounting hole M (inch) | Piston for mounting hole M (mm) | Piston rod diameter F (inches) | Piston rod diameter F (mm) | Piston to base L (inches) | Piston Type | Retracted height A (mm) | Return type | Saddle overhang from piston K (inches) | Saddle overhang from piston K (mm) | Saddle overhang from piston K1 (mm) | Series | Stroke range (inches) | Stroke range (mm) | Subtypes | Surface treatment | type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RSM50 | Short stroke cylinder | 0.63 | 16 | 5 | 1.53 | 38 | 0 - 4.99 | 0 - 127 | 1.28 | 4,3 | 0.17 | 9,1 | AR400 Coupler | 1.13 | 28,7 | 0.99 | 6,5 | Steel | 45 | 10,000 | 700 | 10,000 | 4.9 | 0.321 | 0.2 | 5,5 | 1.12 | 28,5 | 4 | 0.25 | 2.31 x 1.63 | 58 x 41 | 20 | 0.88 | 22 | 1 | 25,4 | 0.81 | Full piston | 32 | Single-acting, spring return | 0.04 | 1 | 1 | RSM | 0 - 0.99 | 0 - 23 | Short stroke cylinder | Paint | Hydraulic cylinders |
| RSM100 | Short stroke cylinder | 0.75 | 19 | 10 | 2.13 | 54 | 0 - 4.99 | 0 - 127 | 1.69 | 7,9 | 0.31 | 10,7 | CR400 Coupler | 1.69 | 42,9 | 2.24 | 14,5 | Steel | 101 | 10,000 | 700 | 10,000 | 11.2 | 0.422 | 0.28 | 7,1 | 1.44 | 36,6 | 18 | 0.98 | 3.25 x 2.19 | 82 x 55 | 27 | 1.34 | 34 | 1.5 | 38,1 | 1.09 | Full piston | 43 | Single-acting, spring return | 0.04 | 1 | 1 | RSM | 0 - 0.99 | 0 - 23 | Short stroke cylinder | Paint | Hydraulic cylinders |
| RSM200 | Short stroke cylinder | 0.75 | 19 | 20 | 2.47 | 62 | 0 - 4.99 | 0 - 127 | 2.03 | 9,9 | 0.39 | 15,1 | CR400 Coupler | 2.38 | 60,5 | 4.43 | 28,7 | Steel | 201 | 10,000 | 700 | 10,000 | 22.1 | 0.549 | 0.4 | 10,0 | 1.94 | 49,3 | 32 | 1.94 | 4.00 x 3.00 | 101 x 76 | 39 | 1.56 | 39 | 2 | 50,8 | 1.56 | Full piston | 51 | Single-acting, spring return | 0.04 | 1 | 1 | RSM | 0 - 0.99 | 0 - 23 | Short stroke cylinder | Paint | Hydraulic cylinders |
| RSM300 | Short stroke cylinder | 0.75 | 19 | 30 | 2.81 | 71 | 0 - 4.99 | 0 - 127 | 2.31 | 11,2 | 0.44 | 15,9 | CR400 Coupler | 2.88 | 73,2 | 6.49 | 42,1 | Steel | 295 | 10,000 | 700 | 10,000 | 32.4 | 0.625 | 0.4 | 10,0 | 2.06 | 52,3 | 55 | 3.25 | 4.63 x 3.75 | 117 x 95 | 47 | 1.75 | 44 | 2.5 | 63,4 | 1.88 | Full piston | 58 | Single-acting, spring return | 0.08 | 2 | 2 | RSM | 0 - 0.99 | 0 - 23 | Short stroke cylinder | Paint | Hydraulic cylinders |
| RSM500 | Short stroke cylinder | 0.75 | 19 | 50 | 3.25 | 82 | 0 - 4.99 | 0 - 127 | 2.63 | 12,7 | 0.5 | 19,0 | CR400 Coupler | 3.5 | 88,9 | 9.62 | 62,1 | Steel | 435 | 10,000 | 700 | 10,000 | 48.1 | 0.75 | 0.47 | 11,0 | 2.62 | 66,5 | 99 | 6.01 | 5.50 x 4.50 | 140 x 114 | 57 | 2.13 | 53 | 2.75 | 69,8 | 2.25 | Full piston | 66 | Single-acting, spring return | 0.08 | 2 | 2 | RSM | 0 - 0.99 | 0 - 23 | Short stroke cylinder | Paint | Hydraulic cylinders |
| RSM750 | Short stroke cylinder | 0.75 | 19 | 75 | 3.75 | 95 | 0 - 4.99 | 0 - 127 | 3.13 | 14,2 | 0.56 | 20,6 | CR400 Coupler | 4.5 | 114,3 | 15.9 | 102,6 | Steel | 718 | 10,000 | 700 | 10,000 | 79.5 | 0.812 | 0.53 | 13,5 | 3 | 76,2 | 164 | 9.94 | 6.50 x 5.50 | 165 x 139 | 69 | 2.63 | 66 | 3.25 | 82,6 | 2.75 | Full piston | 79 | Single-acting, spring return | 0.08 | 2 | 2 | RSM | 0 - 0.99 | 0 - 23 | Short stroke cylinder | Paint | Hydraulic cylinders |
| RSM1000 | Short stroke cylinder | 0.75 | 19 | 100 | 4 | 101 | 0 - 4.99 | 0 - 127 | 3.38 | 14,2 | 0.56 | 20,6 | CR400 Coupler | 5 | 127,0 | 19.63 | 126,7 | Steel | 887 | 10,000 | 700 | 10,000 | 98.1 | 0.812 | 0.53 | 13,5 | 3 | 76,2 | 203 | 12.27 | 7.00 x 6.00 | 178 x 153 | 76 | 2.94 | 74 | 3.63 | 92,2 | 3 | Full piston | 85 | Single-acting, spring return | 0.08 | 2 | 2 | RSM | 0 - 0.99 | 0 - 23 | Short stroke cylinder | Paint | Hydraulic cylinders |
| RSM1500 | Short stroke cylinder | 0.94 | 23 | 150 | 4.56 | 116 | 0 - 4.99 | 0 - 127 | 3.94 | 14,2 | 0.56 | 20,6 | CR400 Coupler | 6.25 | 158,8 | 30.68 | 198,1 | Steel | 1386 | 10,000 | 700 | 10,000 | 153.4 | 0.812 | 0.53 | 13,5 | 4.62 | 117,3 | 317 | 19.17 | 8.50 x 7.50 | 215 x 190 | 95 | 3.25 | 82 | 4.5 | 114,3 | 3.75 | Full piston | 100 | Single-acting, spring return | 0.08 | 2 | 2 | RSM | 0 - 0.99 | 0 - 23 | Short stroke cylinder | Paint | Hydraulic cylinders |
