| Dimension | Value |
|---|---|
| Previous article number | R928056912 |
| Article authenticity | Original article |
| Article condition | New |
| Single weight | 11,80 kg |
| Dimensions (L x W x H) | not available |
| Country of origin** | DE🇩🇪 |
| Customs goods number | 84212980 |
| GTIN | On request |
| RoHS compliant | On request |
| Manufacturer | Hengst Filtration |
| Dimension | Value |
|---|---|

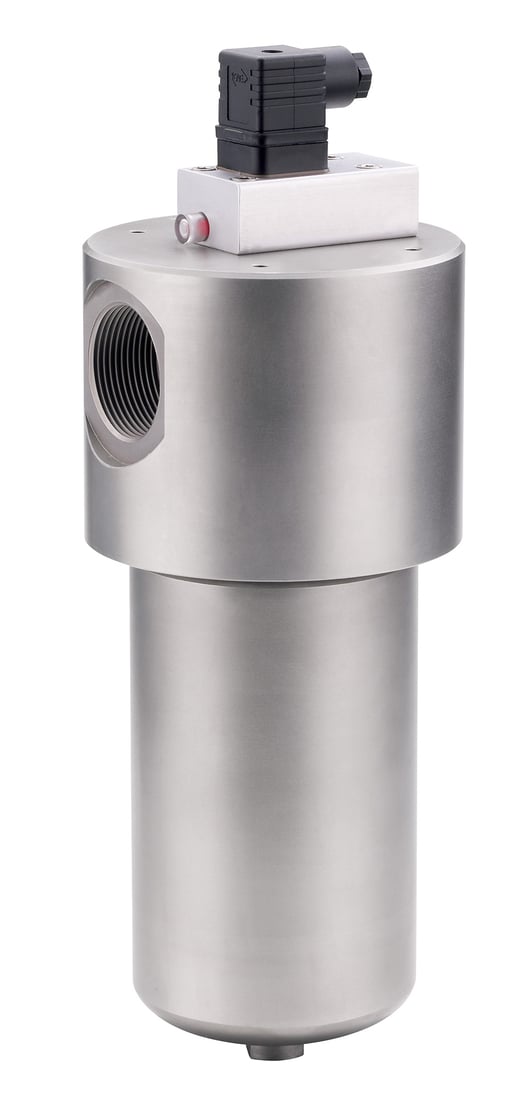

| Category description | Line filters are used in hydraulic systems and lubricating oil systems to separate solids from the fluids. They are intended for installation in pipelines. |
| Adhesive base | PUR-Basis |
| Code Differential Pressure Element | A |
| Design | Line filter, simple |
| Filter material | G10 |
| Filter Medium Code | G |
| Filter Material Description | Stainless steel wire mesh |
| Filter Feinheit µm | 10 |
| Housing material | Stainless steel |
| Fastening situation | Above |
| Nominal size | 0030 |
| Connection Code | R6 |
| Connection size | G1 1/2 |
| Connection position | Horizontal |
| Connection Standard | ISO228-1 |
| Seal Code | V |
| Seal designation | FKM |
| Series | 100EL |
| Support Basket Code | V |
| Support Basket Material | Stainless steel |
| Maintenance Indicator Description | Optical |
| Schaltpunkt bar | 2.2 |
| Maximum working pressure [bar] bar | 100 |
| Rated pressure [bar] bar | 100 |
| Check valve | No |
| HFC/HFA Resistance | Yes |
| Maintenance indicator present | Yes |
| Two-part pot | No |
| Cyclone effect | No |
| DIN24550 | No |
| Lifting device | No |
| Collapse pressure rating bar | 30 |
