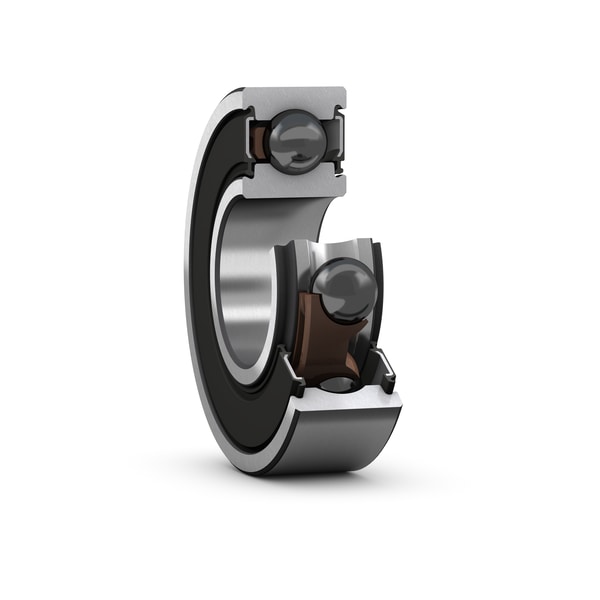

SKF 6000-2RSLTN9/HC5C3WT Hybrid ceramic deep groove ball bearing with low-friction seals on both sides

Price & Availability

24,63 €

excl. VAT

|

29,31 € incl. VAT

Packaging Unit:
1 piece
Availability:
Shipping Area:
entire EU|

Manufacturer Information

Manufacturer article name:
Hybrid ceramic deep groove ball bearing with low-friction seals on both sides
Click to copy
Manufacturer article number:
6000-2RSLTN9/HC5C3WT
Click to copy
Manufacturer type key:
not available
We accept
Invoice
Prepayment
Visa
Mastercard
American Express
PayPal
Eps
Ideal
Przelewy24
Support Mitarbeiter

Support

How can we help?

Mon - Fri from 8:00 AM - 6:00 PM
sales@partbase.com(all languages)
+49 39203 863988(German & English)

Features for 6000-2RSLTN9/HC5C3WT from SKF

Bohrungsdurchmesser
10 mm
Außendurchmesser
26 mm
Breite
8 mm
Dynamische Tragzahl
4.62 kN
Statische Tragzahl
1.96 kN
Referenzdrehzahl
70000 r/min
Grenzdrehzahl
34000 r/min
Einfüllnuten
Ohne
Anzahl der Reihen
1
Befestigungsfunktion, Lageraußenring
Ohne
Bohrungstyp
Zylindrisch
Käfig
Nichtmetallisch
Passungsanordnung
Kein(e)
Radiale Lagerluft
C3
Werkstoff, Lager
Hybrid
Beschichtung
Ohne
Dichtung
Dichtung an beiden Seiten
Art der Abdichtung
Reibungsarm
Schmierstoff
Fett
Nachschmierfunktion
Ohne
Indikativer CO2-Fußabdruck für Neuprodukt
0.06 kg CO<sub>2</sub>e
eClass-Code
23-05-08-01
UNSPSC-Code
31171504
Bohrungsdurchmesser (d)
10 mm
Außendurchmesser (D)
26 mm
Breite (B)
8 mm
Eindrehungsdurchmesser Innenringschulter (d<sub>2</sub>)
≈ 13 mm
Eindrehungsdurchmesser Außenringschulter (D<sub>2</sub>)
22.6 mm
Kantenabstand (r<sub>1,2</sub>)
min. 0.3 mm
Durchmesser der Wellenanlauffläche (d<sub>a</sub>)
min. 12 mm
Durchmesser der Wellenanlauffläche (d<sub>a</sub>)
max. 12.5 mm
Durchmesser der Anlauffläche im Gehäuse (D<sub>a</sub>)
max. 24 mm
Rundungsradius (r<sub>a</sub>)
max. 0.3 mm
Dynamische Tragzahl
4.62 kN
Statische Tragzahl
1.96 kN
Ermüdungsgrenzbelastung
0.061 kN
Referenzdrehzahl
70000 r/min
Grenzdrehzahl
34000 r/min
Berechnungsfaktor
0.03
Berechnungsfaktor
12.4
Vorteil
Geschützt gegen Stromschäden
Vorteil
Besonders geeignet für schwierige Bedingungen und verunreinigte Umgebungen
Vorteil
Typische Vorteile einreihiger Rillenkugellager
Kategorie
Rillenkugellager
Struktur-Gruppe
BB1_504
Aufbereitbar
Nein
Documents

Manufacturer article description

Hybrid ceramic single row deep groove ball bearings with low-friction seals on both sides have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. The low-friction seals provide better sealing effectiveness than shields and non-contact seals, thus providing significantly prolonged bearing service life, yet they can still operate at the same speeds as shields. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling and less sensitivity to temperature gradients, making them suitable for use in dificult conditions and contaminated environments.

Further information for 6000-2RSLTN9/HC5C3WT from SKF

Article authenticity
Original article
Article condition
New
Single weight
18 g
Dimensions (L x W x H)
10 mm x 26 mm x 8 mm
Country of origin**
On request
Customs goods number
84821010
GTIN
7316572070710
RoHS compliant
On request
Manufacturer
SKF
