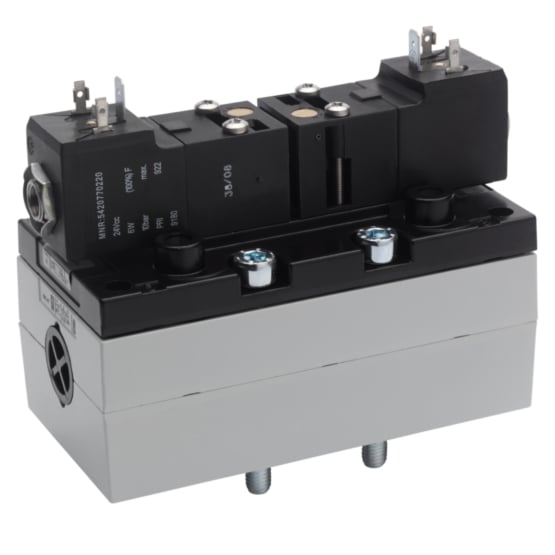

Aventics 5814792190 5/3-way valve Series 581, Size 4 - Bild 1

Aventics 5814792190 5/3-way valve Series 581, Size 4 - Bild 2

Symbol image

Thumbnail Abbildung von Aventics 5814792190

Thumbnail Technische Abbildung von Aventics 5814792190

Featured in

Also via

Aventics 5/3-way valve Series 581, Size 4Manufacturer type key:

Name: Aventics 5/3-way valve Series 581, Size 4 5814792190 (V581-5/3PC-024DC-I4-2CNF-HUX-AA-X-S-T0)
Brand: Aventics
SKU: 5814792190
Price: 728.51 EUR
Availability: InStock

Availability:

Shipping:

Free shipping·No minimum order value|

Found it cheaper elsewhere? Send us the offer as a link or PDF, we usually match it.

Packaging Unit:

1 piece

Quantity

or pay directly

We accept

Invoice

Prepayment

Support

Advice on selection, alternatives and availability

EmailCall WhatsApp

Mon - Fri from 8:00 AM - 6:00 PM

+49 39203 863988 (German & English)sales@partbase.com (all languages)

Featured in

Also via

Features for 5814792190 from Aventics

Actuation: Electric
Nominal flow rate Qn: 5000 l/min
Switching principle: 5/3, pressurised centre position
Version: Pressurised centre position
Compressed air connection, outlet: Base plate ISO 5599-1
Min. operating pressure: -0.95 bar
Max. operating pressure: 10 bar
Operating voltage DC: 24 V
Voltage tolerance DC: -10% / +10%
Manual override: Non-detenting
Electrical connection type: Plug
Electrical connection size: EN 175301-803, form A
Sealing principle: Soft sealing
Pilot control: External
Standards: ISO 5599-1
Pilot valve: 30x30 mm CNOMO
Valve design: Spool valve
Manifold principle: Sub-base principle, single
Connection type: Plate connection
Compressed air connection, inlet: Base plate ISO 5599-1
Compressed air connection, exhaust: Base plate ISO 5599-1
Compressed air connection, pilot exhaust: G 1/8
Power consumption DC: 6 W
Flow conductance C: 15.5 l/(s*bar)
Size: ISO 4

Documents

Datasheet DE 5814792190
Download
Datasheet EN 5814792190
Download
Datasheet FR 5814792190
Download
Datasheet ES 5814792190
Download
Datasheet IT 5814792190
Download
Datasheet PT 5814792190
Download

Further information for 5814792190 from Aventics

Article authenticity: Original article
Article condition: New
Single weight: not available
Dimensions (L x W x H): not available
Country of origin**: HU🇭🇺
Customs goods number: 84812090
GTIN: On request
RoHS compliant: On request
Manufacturer: Aventics

Spare Parts Finder

Find spare parts for Aventics 5814792190Note: Not all products from Aventics have spare parts available.

Access to the official manufacturer catalog for compatible spare parts and repair kits.

Open Spare Parts Catalog

*:Delivery times are not binding and subject to change.

**:The origin information of the products is for orientation only. The actual origin may differ. This does not guarantee any benefits related to import advantages or availability from certain countries.

***:All product specifications, technical data and images are provided without warranty. Product images sometimes serve as symbolic images and may differ from the actual item.

Series Comparison for Aventics Produkt-Series

Product	Details	Actuation	Actuation function	Basic valve equipment	Compressed air connection, exhaust	Compressed air connection, inlet	Compressed air connection, outlet	Compressed air connection, pilot exhaust	Connection type	Electrical connection size	Electrical connection type	Flow conductance C	Flow control	Holding power AC 50 Hz	Holding power AC 60 Hz	Inrush power AC 50 Hz	Inrush power AC 60 Hz	Manifold principle	Manual override	Max. operating pressure	Max. pilot pressure	Min. operating pressure	Min. pilot pressure	Nominal flow rate Qn	Operating voltage AC at 50 Hz	Operating voltage AC at 60 Hz	Operating voltage DC	Pilot control	Pilot valve	Power consumption DC	Reset	Sealing principle	Size	Standards	Switching principle	Valve design	Voltage tolerance AC 50 Hz	Voltage tolerance AC 60 Hz	Voltage tolerance DC
Aventics 5814110500	5/2-way valve Series 581, Size 4 V581-5/2SR-012DC-I4-1P22-HBX-AA-X-C-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	-	-	12 V	Internal	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814110200	5/2-way valve Series 581, Size 4 V581-5/2SR-024AC-I4-1P22-HBX-AA-X-C-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	24 V	-	-	Internal	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814110100	5/2-way valve Series 581, Size 4 V581-5/2SR-024DC-I4-1P22-HBX-AA-X-C-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	-	-	24 V	Internal	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814110600	5/2-way valve Series 581, Size 4 V581-5/2SR-048DC-I4-1P22-HBX-AA-X-C-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	-	-	48 V	Internal	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814110300	5/2-way valve Series 581, Size 4 V581-5/2SR-110AC-I4-1P22-HBX-AA-X-C-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	-	8 VA	-	10 VA	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	-	110 V	-	Internal	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-10% / +10%	-
Aventics 5814110400	5/2-way valve Series 581, Size 4 V581-5/2SR-230AC-I4-1P22-HBX-AA-X-C-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	230 V	-	-	Internal	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814110000	5/2-way valve Series 581, Size 4 V581-5/2SR-NONE-I4-1P22-HBX-AA-X-C-T0	Electric	Actuated on one side	Basic valve without coil	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	3 bar	6000 l/min	-	-	-	Internal	22 mm	-	With spring return	Soft sealing	ISO 4	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-
Aventics 5814111500	5/2-way valve Series 581, Size 4 V581-5/2SR-012DC-I4-1P22-HBX-AA-X-C-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	-	-	12 V	Internal	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814111200	5/2-way valve Series 581, Size 4 V581-5/2SR-024AC-I4-1P22-HBX-AA-X-C-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	24 V	-	-	Internal	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814111100	5/2-way valve Series 581, Size 4 V581-5/2SR-024DC-I4-1P22-HBX-AA-X-C-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	-	-	24 V	Internal	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814111600	5/2-way valve Series 581, Size 4 V581-5/2SR-048DC-I4-1P22-HBX-AA-X-C-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	-	-	48 V	Internal	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814111300	5/2-way valve Series 581, Size 4 V581-5/2SR-110AC-I4-1P22-HBX-AA-X-C-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	-	8 VA	-	10 VA	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	-	110 V	-	Internal	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-10% / +10%	-
Aventics 5814111400	5/2-way valve Series 581, Size 4 V581-5/2SR-230AC-I4-1P22-HBX-AA-X-C-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	230 V	-	-	Internal	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814111000	5/2-way valve Series 581, Size 4 V581-5/2SR-NONE-I4-1P22-HBX-AA-X-C-T1	Electric	Actuated on one side	Basic valve without coil	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	With flow control	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	3 bar	-	6000 l/min	-	-	-	Internal	22 mm	-	With spring return	Soft sealing	ISO 4	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-
Aventics 5814112500	5/2-way valve Series 581, Size 4 V581-5/2SR-012DC-I4-1P22-HBX-AA-X-S-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	-	-	12 V	External	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814112200	5/2-way valve Series 581, Size 4 V581-5/2SR-024AC-I4-1P22-HBX-AA-X-S-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	24 V	-	-	External	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814112100	5/2-way valve Series 581, Size 4 V581-5/2SR-024DC-I4-1P22-HBX-AA-X-S-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	-	-	24 V	External	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814112600	5/2-way valve Series 581, Size 4 V581-5/2SR-048DC-I4-1P22-HBX-AA-X-S-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	-	-	48 V	External	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814112300	5/2-way valve Series 581, Size 4 V581-5/2SR-110AC-I4-1P22-HBX-AA-X-S-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	-	8 VA	-	10 VA	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	-	110 V	-	External	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-10% / +10%	-
Aventics 5814112400	5/2-way valve Series 581, Size 4 V581-5/2SR-230AC-I4-1P22-HBX-AA-X-S-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	230 V	-	-	External	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814112000	5/2-way valve Series 581, Size 4 V581-5/2SR-NONE-I4-1P22-HBX-AA-X-S-T0	Electric	Actuated on one side	Basic valve without coil	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	3 bar	6000 l/min	-	-	-	External	22 mm	-	With spring return	Soft sealing	ISO 4	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-
Aventics 5814113500	5/2-way valve Series 581, Size 4 V581-5/2SR-012DC-I4-1P22-HBX-AA-X-S-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	-	-	12 V	External	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814113200	5/2-way valve Series 581, Size 4 V581-5/2SR-024AC-I4-1P22-HBX-AA-X-S-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	24 V	-	-	External	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814113100	5/2-way valve Series 581, Size 4 V581-5/2SR-024DC-I4-1P22-HBX-AA-X-S-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	-	-	24 V	External	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814113600	5/2-way valve Series 581, Size 4 V581-5/2SR-048DC-I4-1P22-HBX-AA-X-S-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	-	-	48 V	External	22 mm	5 W	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-10% / +10%
Aventics 5814113300	5/2-way valve Series 581, Size 4 V581-5/2SR-110AC-I4-1P22-HBX-AA-X-S-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	-	8 VA	-	10 VA	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	-	110 V	-	External	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-	-10% / +10%	-
Aventics 5814113400	5/2-way valve Series 581, Size 4 V581-5/2SR-230AC-I4-1P22-HBX-AA-X-S-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	-	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	230 V	-	-	External	22 mm	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814113000	5/2-way valve Series 581, Size 4 V581-5/2SR-NONE-I4-1P22-HBX-AA-X-S-T1	Electric	Actuated on one side	Basic valve without coil	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	With flow control	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	-0.95 bar	-	6000 l/min	-	-	-	External	22 mm	-	With spring return	Soft sealing	ISO 4	ISO 5599-1	5/2, with spring return	Spool valve	-	-	-
Aventics 5814170540	5/2-way valve Series 581, Size 4 V581-5/2SR-24/42-I4-1CNO-HUX-AA-X-C-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	EN 175301-803, form A	Plug	-	-	-	-	-	-	Sub-base principle, single	Non-detenting	16 bar	-	3 bar	-	6000 l/min	42 V	-	24 V	Internal	30x22 mm CNOMO	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-10% / +10%
Aventics 5814170440	5/2-way valve Series 581, Size 4 V581-5/2SR-230AC-I4-1CNO-HUX-AA-X-C-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	EN 175301-803, form A	Plug	-	-	10.8 VA	-	15.2 VA	-	Sub-base principle, single	Non-detenting	16 bar	-	3 bar	-	6000 l/min	230 V	-	-	Internal	30x22 mm CNOMO	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814171540	5/2-way valve Series 581, Size 4 V581-5/2SR-24/42-I4-1CNO-HUX-AA-X-C-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	EN 175301-803, form A	Plug	-	-	-	-	-	-	Sub-base principle, single	Non-detenting	16 bar	-	3 bar	-	6000 l/min	42 V	-	24 V	Internal	30x22 mm CNOMO	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-10% / +10%
Aventics 5814171440	5/2-way valve Series 581, Size 4 V581-5/2SR-230AC-I4-1CNO-HUX-AA-X-C-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	EN 175301-803, form A	Plug	-	-	10.8 VA	-	15.2 VA	-	Sub-base principle, single	Non-detenting	16 bar	-	3 bar	-	6000 l/min	230 V	-	-	Internal	30x22 mm CNOMO	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814172540	5/2-way valve Series 581, Size 4 V581-5/2SR-24/42-I4-1CNO-HUX-AA-X-S-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	EN 175301-803, form A	Plug	-	-	-	-	-	-	Sub-base principle, single	Non-detenting	16 bar	-	-0.95 bar	-	6000 l/min	42 V	-	24 V	External	30x22 mm CNOMO	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-10% / +10%
Aventics 5814172440	5/2-way valve Series 581, Size 4 V581-5/2SR-230AC-I4-1CNO-HUX-AA-X-S-T0	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	EN 175301-803, form A	Plug	-	-	10.8 VA	-	15.2 VA	-	Sub-base principle, single	Non-detenting	16 bar	-	-0.95 bar	-	6000 l/min	230 V	-	-	External	30x22 mm CNOMO	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814173540	5/2-way valve Series 581, Size 4 V581-5/2SR-24/42-I4-1CNO-HUX-AA-X-S-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	EN 175301-803, form A	Plug	-	-	-	-	-	-	Sub-base principle, single	Non-detenting	16 bar	-	-0.95 bar	-	6000 l/min	42 V	-	24 V	External	30x22 mm CNOMO	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-10% / +10%
Aventics 5814173440	5/2-way valve Series 581, Size 4 V581-5/2SR-230AC-I4-1CNO-HUX-AA-X-S-T1	Electric	Actuated on one side	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	EN 175301-803, form A	Plug	-	-	10.8 VA	-	15.2 VA	-	Sub-base principle, single	Non-detenting	16 bar	-	-0.95 bar	-	6000 l/min	230 V	-	-	External	30x22 mm CNOMO	-	With spring return	Soft sealing	-	ISO 5599-1	5/2, with spring return	Spool valve	-10% / +10%	-	-
Aventics 5814610500	5/2-way valve Series 581, Size 4 V581-5/2AR-012DC-I4-AP22-HBX-AA-D-C-T0	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	-	-	12 V	Internal	22 mm	5 W	With air spring return	Soft sealing	ISO 4	ISO 5599-1	5/2, with air spring return	Spool valve	-	-	-10% / +10%
Aventics 5814610200	5/2-way valve Series 581, Size 4 V581-5/2AR-024AC-I4-AP22-HBX-AA-D-C-T0	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	24 V	-	-	Internal	22 mm	-	With air spring return	Soft sealing	-	ISO 5599-1	5/2, with air spring return	Spool valve	-10% / +10%	-	-
Aventics 5814610100	5/2-way valve Series 581, Size 4 V581-5/2AR-024DC-I4-AP22-HBX-AA-D-C-T0	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	-	-	24 V	Internal	22 mm	5 W	With air spring return	Soft sealing	ISO 4	ISO 5599-1	5/2, with air spring return	Spool valve	-	-	-10% / +10%
Aventics 5814610600	5/2-way valve Series 581, Size 4 V581-5/2AR-048DC-I4-AP22-HBX-AA-D-C-T0	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	-	-	48 V	Internal	22 mm	5 W	With air spring return	Soft sealing	ISO 4	ISO 5599-1	5/2, with air spring return	Spool valve	-	-	-10% / +10%
Aventics 5814610300	5/2-way valve Series 581, Size 4 V581-5/2AR-110AC-I4-AP22-HBX-AA-D-C-T0	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	8 VA	-	10 VA	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	-	110 V	-	Internal	22 mm	-	With air spring return	Soft sealing	-	ISO 5599-1	5/2, with air spring return	Spool valve	-	-10% / +10%	-
Aventics 5814610400	5/2-way valve Series 581, Size 4 V581-5/2AR-230AC-I4-AP22-HBX-AA-D-C-T0	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	230 V	-	-	Internal	22 mm	-	With air spring return	Soft sealing	-	ISO 5599-1	5/2, with air spring return	Spool valve	-10% / +10%	-	-
Aventics 5814610000	5/2-way valve Series 581, Size 4 V581-5/2AR-NONE-I4-AP22-HBX-AA-D-C-T0	Electric	-	Basic valve without coil	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	-	-	-	Sub-base principle, single	Detenting	10 bar	10 bar	1.5 bar	1.5 bar	6000 l/min	-	-	-	Internal	22 mm	-	With air spring return	Soft sealing	ISO 4	ISO 5599-1	5/2, with air spring return	Spool valve	-	-	-
Aventics 5814611500	5/2-way valve Series 581, Size 4 V581-5/2AR-012DC-I4-AP22-HBX-AA-D-C-T1	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	With flow control	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	-	-	12 V	Internal	22 mm	5 W	With air spring return	Soft sealing	-	ISO 5599-1	5/2, with air spring return	Spool valve	-	-	-10% / +10%
Aventics 5814611200	5/2-way valve Series 581, Size 4 V581-5/2AR-024AC-I4-AP22-HBX-AA-D-C-T1	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	24 V	-	-	Internal	22 mm	-	With air spring return	Soft sealing	-	ISO 5599-1	5/2, with air spring return	Spool valve	-10% / +10%	-	-
Aventics 5814611100	5/2-way valve Series 581, Size 4 V581-5/2AR-024DC-I4-AP22-HBX-AA-D-C-T1	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	With flow control	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	-	-	24 V	Internal	22 mm	5 W	With air spring return	Soft sealing	-	ISO 5599-1	5/2, with air spring return	Spool valve	-	-	-10% / +10%
Aventics 5814611600	5/2-way valve Series 581, Size 4 V581-5/2AR-048DC-I4-AP22-HBX-AA-D-C-T1	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	With flow control	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	-	-	48 V	Internal	22 mm	5 W	With air spring return	Soft sealing	-	ISO 5599-1	5/2, with air spring return	Spool valve	-	-	-10% / +10%
Aventics 5814611300	5/2-way valve Series 581, Size 4 V581-5/2AR-110AC-I4-AP22-HBX-AA-D-C-T1	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	-	8 VA	-	10 VA	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	-	110 V	-	Internal	22 mm	-	With air spring return	Soft sealing	-	ISO 5599-1	5/2, with air spring return	Spool valve	-	-10% / +10%	-
Aventics 5814611400	5/2-way valve Series 581, Size 4 V581-5/2AR-230AC-I4-AP22-HBX-AA-D-C-T1	Electric	-	-	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	-	8 VA	-	10 VA	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	-	6000 l/min	230 V	-	-	Internal	22 mm	-	With air spring return	Soft sealing	-	ISO 5599-1	5/2, with air spring return	Spool valve	-10% / +10%	-	-
Aventics 5814611000	5/2-way valve Series 581, Size 4 V581-5/2AR-NONE-I4-AP22-HBX-AA-D-C-T1	Electric	-	Basic valve without coil	Base plate ISO 5599-1	Base plate ISO 5599-1	Base plate ISO 5599-1	M5	Plate connection	Form B industrial	Plug	24.5 l/(s*bar)	With flow control	-	-	-	-	Sub-base principle, single	Detenting	10 bar	-	1.5 bar	1.5 bar	6000 l/min	-	-	-	Internal	22 mm	-	With air spring return	Soft sealing	ISO 4	ISO 5599-1	5/2, with air spring return	Spool valve	-	-	-
