| Dimension | Value |
|---|---|
| Article authenticity | Original article |
| Article condition | New |
| Single weight | 24 g |
| Dimensions (L x W x H) | 22 cm x 22 cm x 12 cm |
| Country of origin** | DE🇩🇪 |
| Customs goods number | 74122000 |
| GTIN | 3661475994545 |
| RoHS compliant | On request |
| Manufacturer | Aventics |
Access to the official manufacturer catalog for compatible spare parts and repair kits.
| Dimension | Value |
|---|---|
| Type compressed air connection | External thread |
| Connection G | G 3/8 |
| Type | FPT-S-RBA |
| Operating pressure min. | 0 bar |
| Maximum operating pressure | 16 bar |
| Minimum ambient temperature | -20 °C |
| Maximum ambient temperature | 80 °C |
| Delivery unit | 25 pieces |
| Material | Brass, nickel-plated |
| Material seals | Nitrile butadiene rubber |
excl. VAT
|will be calculated in cart
Product | Details | Connection D | Connection G | Delivery unit | Inner key width (ISW) | Material | Material seals | Maximum ambient temperature | Maximum operating pressure | Minimum ambient temperature | Operating pressure min. | Type | Type compressed air connection | Type compressed air connection 2 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8633051800 | Adapter 8633051800 FPT-S-REN-M005-G018 | G 1/8 | M5 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-REN | External thread | Internal thread | 0.01 kg |
| 2122918140 | Adapter 2122918140 FPT-S-REN-G018-G014 | G 1/4 | G 1/8 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-REN | External thread | Internal thread | 0.02 kg |
| 2122914380 | Adapter 2122914380 FPT-S-REN-G014-G038 | G 3/8 | G 1/4 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-REN | External thread | Internal thread | 0.03 kg |
| 8633141200 | Adapter 8633141200 FPT-S-REN-G014-G012 | G 1/2 | G 1/4 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-REN | External thread | Internal thread | 0.04 kg |
| 2122938120 | Adapter 2122938120 FPT-S-REN-G038-G012 | G 1/2 | G 3/8 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-REN | External thread | Internal thread | 0.04 kg |
| 1823462004 | Locking screw 1823462004 FPT-S-RIO-G018 | - | G 1/8 | 10 pieces | - | Brass | - | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RIO | External thread | - | - |
| 1823462003 | Locking screw 1823462003 FPT-S-RIO-G014 | - | G 1/4 | 10 pieces | - | Brass | - | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RIO | External thread | - | - |
| R412010045 | Locking screw with O-ring Series FPT R412010045 FPT-C-RBA-G018 | - | G 1/8 | 2 pieces | - | Stainless steel | Fluorubber | 150 °C | 16 bar | -20 °C | 0 bar | FPT-C-RBA | External thread | - | - |
| R412010683 | Locking screw with O-ring Series FPT R412010683 FPT-C-RBA-G014 | - | G 1/4 | 2 pieces | - | Stainless steel | Fluorubber | 150 °C | 16 bar | -20 °C | 0 bar | FPT-C-RBA | External thread | - | - |
| R412010684 | Locking screw with O-ring Series FPT R412010684 FPT-C-RBA-G038 | - | G 3/8 | 2 pieces | - | Stainless steel | Fluorubber | 150 °C | 16 bar | -20 °C | 0 bar | FPT-C-RBA | External thread | - | - |
| R412010044 | Locking screw with O-ring Series FPT R412010044 FPT-C-RBA-G012 | - | G 1/2 | 2 pieces | - | Stainless steel | Fluorubber | 150 °C | 16 bar | -20 °C | 0 bar | FPT-C-RBA | External thread | - | - |
| 8639000700 | Locking screw with O-ring Series FPT 8639000700 DIN16030-FPT-S-RBI-M007 | - | M7 | 25 pieces | - | Brass | Acrylonitrile butadiene rubber | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | External thread | - | - |
| 8639001800 | Locking screw with O-ring Series FPT 8639001800 FPT-S-RBI-G018 | - | G 1/8 | 25 pieces | - | Brass | Acrylonitrile butadiene rubber | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | External thread | - | - |
| 8639001400 | Locking screw with O-ring Series FPT 8639001400 FPT-S-RBI-G014 | - | G 1/4 | 25 pieces | - | Brass | Acrylonitrile butadiene rubber | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | External thread | - | - |
| 8639003800 | Locking screw with O-ring Series FPT 8639003800 FPT-S-RBI-G038 | - | G 3/8 | 25 pieces | - | Brass | Acrylonitrile butadiene rubber | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | External thread | - | - |
| 8639001200 | Locking screw with O-ring Series FPT 8639001200 FPT-S-RBI-G012 | - | G 1/2 | 25 pieces | - | Brass | Acrylonitrile butadiene rubber | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | External thread | - | - |
| R412010743 | Locking screw with O-ring Series FPT R412010743 FPT-S-RBA-G018 | - | G 1/8 | 25 pieces | - | Brass, nickel-plated | Nitrile butadiene rubber | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBA | External thread | - | - |
| R412010744 | Locking screw with O-ring Series FPT R412010744 FPT-S-RBA-G014 | - | G 1/4 | 25 pieces | - | Brass, nickel-plated | Nitrile butadiene rubber | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBA | External thread | - | - |

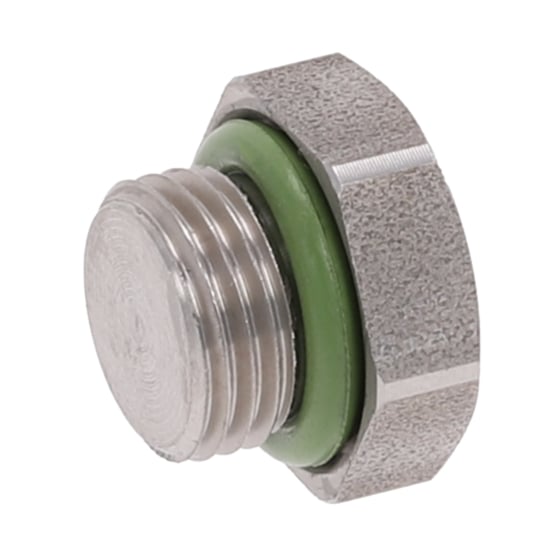

| R412010745 | Locking screw with O-ring Series FPT R412010745 FPT-S-RBA-G038 | - | G 3/8 | 25 pieces | - | Brass, nickel-plated | Nitrile butadiene rubber | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBA | External thread | - | - |
| R412010746 | Locking screw with O-ring Series FPT R412010746 FPT-S-RBA-G012 | - | G 1/2 | 25 pieces | - | Brass, nickel-plated | Nitrile butadiene rubber | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBA | External thread | - | - |
| 1823462016 | Locking screw Flat gasket 1823462016 FPT-S-RBI-M005 | - | M5 | 25 pieces | - | Steel | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | - | - | - |
| 1823462028 | Locking screw Flat gasket 1823462028 FPT-S-RBI-G018 | - | G 1/8 | 25 pieces | - | Steel | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | - | - | - |
| 1823462029 | Locking screw Flat gasket 1823462029 FPT-S-RBI-G014 | - | G 1/4 | 25 pieces | - | Steel | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | - | - | - |
| 1823462030 | Locking screw Flat gasket 1823462030 FPT-S-RBI-G038 | - | G 3/8 | 25 pieces | - | Steel | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | - | - | - |
| 1823462031 | Locking screw Flat gasket 1823462031 FPT-S-RBI-G012 | - | G 1/2 | 25 pieces | - | Steel | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | - | - | - |
| 1823462032 | Locking screw Flat gasket 1823462032 FPT-S-RBI-G034 | - | G 3/4 | 10 pieces | - | Steel | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | - | - | - |
| 1823462033 | Locking screw Flat gasket 1823462033 FPT-S-RBI-G100 | - | G 1 | 5 pieces | - | Steel | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RBI | - | - | - |
| R412026840 | Locking screw Flat gasket R412026840 G018 | - | G 1/8 | - | 5 mm | Stainless steel | Fluorubber | 150 °C | 150 bar | -20 °C | 0 bar | - | - | - | - |
| R412026841 | Locking screw Flat gasket R412026841 G014 | - | G 1/4 | - | 6 mm | Stainless steel | Fluorubber | 150 °C | 150 bar | -20 °C | 0 bar | - | - | - | - |
| R412026842 | Locking screw Flat gasket R412026842 G038 | - | G 3/8 | - | 8 mm | Stainless steel | Fluorubber | 150 °C | 150 bar | -20 °C | 0 bar | - | - | - | - |
| R412026844 | Locking screw Flat gasket R412026844 G012 | - | G 1/2 | - | 10 mm | Stainless steel | Fluorubber | 150 °C | 150 bar | -20 °C | 0 bar | - | - | - | - |
| 1823391080 | Reducer nipple 1823391080 FPT-S-RDZ-G018-M005 | M5 | G 1/8 | 10 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391012 | Reducer nipple 1823391012 FPT-S-RDZ-G014-G018 | G 1/8 | G 1/4 | 10 pieces | - | - | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | - | - |
| 1823391298 | Reducer nipple 1823391298 FPT-S-RDZ-G038-G018 | G 1/8 | G 3/8 | 10 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391013 | Reducer nipple 1823391013 FPT-S-RDZ-G038-G014 | G 1/4 | G 3/8 | 10 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391299 | Reducer nipple 1823391299 FPT-S-RDZ-G012-G018 | G 1/8 | G 1/2 | 5 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391300 | Reducer nipple 1823391300 FPT-S-RDZ-G012-G014 | G 1/4 | G 1/2 | 5 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391014 | Reducer nipple 1823391014 FPT-S-RDZ-G012-G038 | G 3/8 | G 1/2 | 5 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391301 | Reducer nipple 1823391301 FPT-S-RDZ-G034-G014 | G 1/4 | G 3/4 | 5 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391302 | Reducer nipple 1823391302 FPT-S-RDZ-G034-G038 | G 3/8 | G 3/4 | 5 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391028 | Reducer nipple 1823391028 FPT-S-RDZ-G034-G012 | G 1/2 | G 3/4 | 5 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391303 | Reducer nipple 1823391303 FPT-S-RDZ-G100-G038 | G 3/8 | G 1 | 2 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391304 | Reducer nipple 1823391304 FPT-S-RDZ-G100-G012 | G 1/2 | G 1 | 2 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 1823391285 | Reducer nipple 1823391285 FPT-S-RDZ-G100-G034 | G 3/4 | G 1 | 2 pieces | - | Brass | Polyvinyl chloride | 70 °C | 60 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 2122807050 | Reducer nipple 2122807050 FPT-S-RDZ-M007-M005 | M5 | M7 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RDZ | External thread | Internal thread | - |
| 8632141400 | Double nipple 8632141400 FPT-S-RDO-G014-G014 | G 1/4 | G 1/4 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RDO | - | - | 0.034 kg |
| 8632143800 | Double nipple 8632143800 FPT-S-RDO-G014-G038 | G 3/8 | G 1/4 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RDO | - | - | 0.044 kg |
| 1823391081 | Double nipple 1823391081 FPT-S-RDO-M005-M005 | M5 | M5 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RDO | External thread | External thread | - |
| 1823391100 | Double nipple 1823391100 FPT-S-RDO-G018-M005 | M5 | G 1/8 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RDO | External thread | External thread | - |
| 1823391015 | Double nipple 1823391015 FPT-S-RDO-G018-G018 | G 1/8 | G 1/8 | 10 pieces | - | Brass | Polyvinyl chloride | 80 °C | 16 bar | -20 °C | 0 bar | FPT-S-RDO | External thread | External thread | - |
