New & Original
Symbol image
Festo Proportional pressure regulatorManufacturer type key:
Price & Availability
Availability:
Shipping:
Free shipping·No minimum order value|
Free shipping·No minimum order value|
Found it cheaper elsewhere? Send us the offer as a link or PDF, we usually match it.
Packaging Unit:
1 piece
1 piece
or pay directly
We accept
Invoice
Prepayment
Support
Advice on selection, alternatives and availability
Mon - Fri from 8:00 AM - 6:00 PM
+49 39203 863988 (German & English)sales@partbase.com (all languages)
Featured in
Also via
Features for 1635985 from Festo
- Nominal size of pressurisation
- 3 mm
- Nominal size of exhaust
- 3 mm
- Type of actuation
- electric
- Sealing principle
- soft
- Mounting position
- anypreferably upright
- Construction
- direct-actuated piston control valve
- Short-circuit resistance
- no
- Max. cable length
- 30 m
- Safety note
- Safety position VPPL: if the supply cable breaks, the output pressure drops to 0 bar.

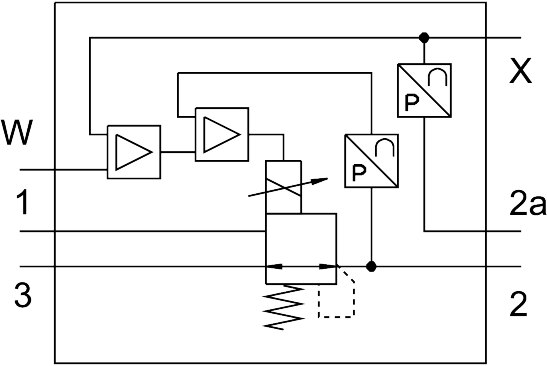

- Symbol
- 00995268
- Reverse polarity protection
- for all electrical connections
- Type of reset
- mechanical spring
- Type of control
- direct
- Valve function
- 3-way proportional pressure regulator, closed
- Display type
- LED display
- Operating pressure
- 5 MPa
- Operating pressure
- 50 bar
- Pressure regulation range
- 0.04 MPa ... 4 MPa
- Pressure regulation range
- 0.4 bar ... 40 bar
- Input pressure 1
- 0 bar ... 50 bar
- Input pressure 1
- 0 MPa ... 5 MPa
- Max. pressure hysteresis
- 0.04 MPa
- Max. pressure hysteresis
- 0.4 bar
- Max. pressure hysteresis
- 5.8 psi
- b value
- 0.25
- C value
- 0.8 l/sbar
- Standard nominal flow rate (standardised to DIN 1343)
- 245 l/min
- Standard nominal flow rate 2-3
- 282 l/min
- Switch-off time
- 654 ms
- Switch-on time
- 428 ms
- Operating voltage range DC
- 21.6 V ... 27.6 V
- Duty cycle
- 100%
- Max. electrical power consumption
- 26.7 W
- Residual ripple
- 10 %
- Signal range, analogue output
- 4 - 20 mA
- Signal range, analogue input
- 0 - 10 V
- Setpoint/actual values
- Voltage type 0 - 10 V
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
- Note on operating/pilot medium
- Lubricated operation not possible
- Approval
- c UL us - Listed (OL)
- KC mark
- KC-EMV
- CE mark (see declaration of conformity)
- to EU EMC Directive
- UKCA mark (see declaration of conformity)
- to UK EMC regulations
- Corrosion resistance class CRC
- 2 - moderate corrosion stress
- LABS conformity
- VDMA24364 zone III
- Medium temperature
- 5 °C ... 50 °C
- Degree of protection
- IP65
- Ambient temperature
- 5 °C ... 50 °C
- Storage temperature
- -10 °C ... 60 °C
- Linearity error in ± % FS
- 1 %FS
- Total accuracy
- 1,5 %FS
- Temperature coefficient
- 0.04 %/K
- Repetition accuracy in ± % FS
- 1 %FS
- Electrical connection, diagnostic interface
- Socket, M12, 5-pin, A-coded
- Electrical connection IN
- Plug, M12, 5-pin, A-coded
- Electrical connection OUT
- Plug, M12, 5-pin, A-coded
- Mounting type
- with through hole
- Pneumatic connection 1
- Flange
- Pneumatic connection 2
- Flange
- Pneumatic connection 3
- Flange
- Materials note
- RoHS-compliant
- Housing material
- Wrought aluminium alloy, anodised
- Documents
- Documentation 1635985
- Datasheet 1635985
- Reliability Datasheet 1635985
- CAD data 1635985
Manufacturer article description
Specially developed for higher pressures of 10 … 40 bar. As a stand-alone device with threaded ports, the valve has a wide range of uses, e.g. for stretch blow moulding of PET bottles in the food and beverage industry or for tyre or brake test benches in the automotive industry.
Further information for 1635985 from Festo
- Article authenticity
- Original article
- Article condition
- New
- Single weight
- 1,10 kg
- Dimensions (L x W x H)
- not available
- Country of origin**
- On request
- Customs goods number
- 84811099
- GTIN
- 4052568290856
- RoHS compliant
- Yes
- Manufacturer
- Festo
