New & Original
Symbol image
Festo Vertical pressure blocking plateManufacturer type key:
Price & Availability
Availability:
Shipping:
Free shipping·No minimum order value|
Free shipping·No minimum order value|
Found it cheaper elsewhere? Send us the offer as a link or PDF, we usually match it.
Packaging Unit:
1 piece
1 piece
or pay directly
We accept






Invoice
Prepayment
We also supplyView range
Fittings & hoses
Threaded fittings, couplings, valves and hoses in brass, stainless steel and plastic.
Support
Advice on selection, alternatives and availability
Mon - Fri from 8:00 AM - 6:00 PM
+49 39203 863988 (German & English)sales@partbase.com (all languages)
Featured in
Also via
Features for 546096 from Festo
- Width
- 43 mm
- Based on standard
- ISO 5599-2
- Mounting position
- any
- Pneumatic stacking
- Shut-off for 1

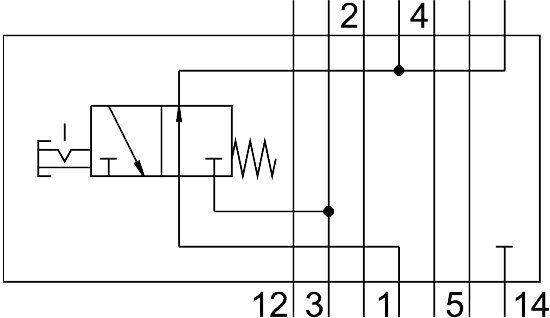

- Symbol
- 00991890
- Operating pressure
- -0.09 MPa ... 1 MPa
- Operating pressure
- -0.9 bar ... 10 bar
- Standard nominal flow rate (standardised to DIN 1343)
- 1200 l/min
- CE mark (see declaration of conformity)
- to EU Simple Pressure Vessels Directive
- UKCA mark (see declaration of conformity)
- to UK regulations for electrical equipment
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating/pilot medium
- Lubricated operation possible (subsequently required for further operation)
- Corrosion resistance class CRC
- 0 - no corrosion stress
- LABS conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65NEMA 4
- Ambient temperature
- -5 °C ... 50 °C
- Mounting type for stacking
- on manifold plateon individual sub-base
- Materials note
- RoHS-compliant
- Housing material
- Die-cast aluminium
- Documents
- Documentation 546096
- Datasheet 546096
- CAD data 546096
Further information for 546096 from Festo
- Article authenticity
- Original article
- Article condition
- New
- Single weight
- 600 g
- Dimensions (L x W x H)
- not available
- Country of origin**
- On request
- Customs goods number
- 84819000
- GTIN
- 4052568184391
- RoHS compliant
- Yes
- Manufacturer
- Festo
