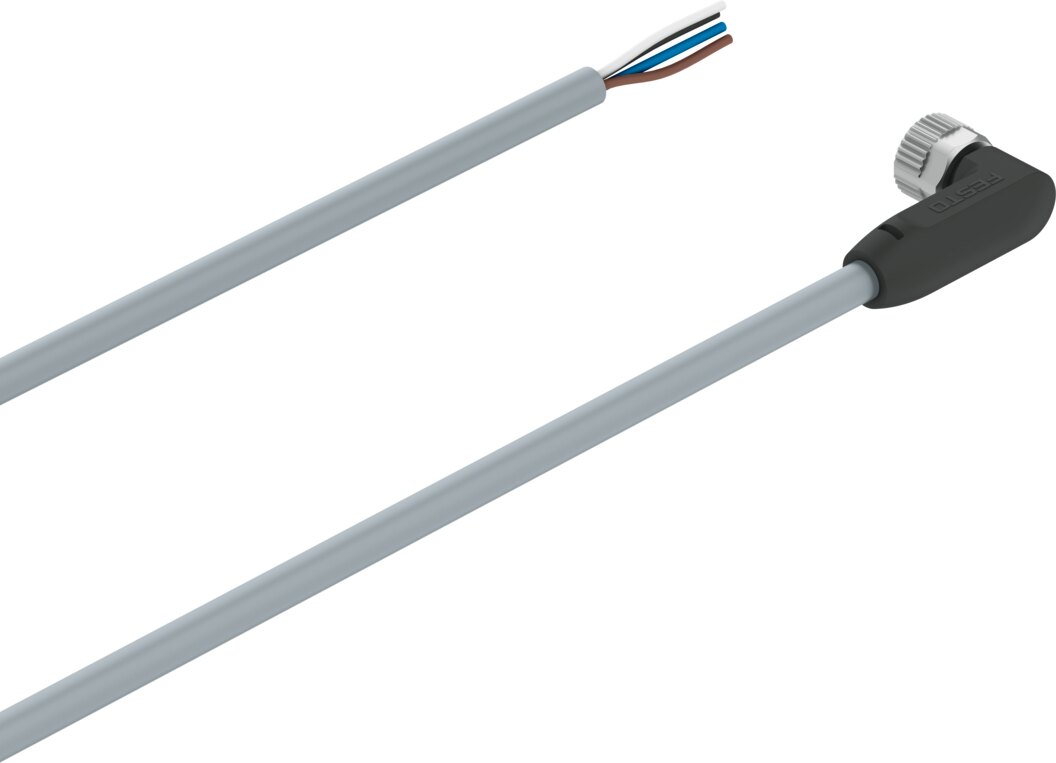

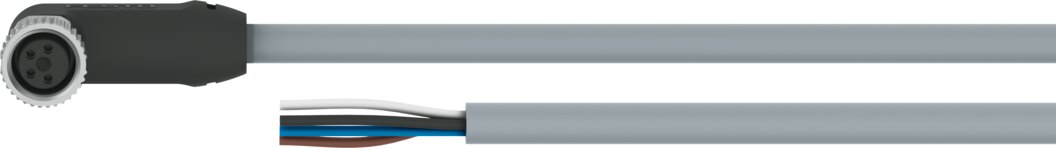

Festo Connecting cableManufacturer type key:

Name: Festo Connecting cable 8078233 (NEBA-M8W4-U-2.5-N-LE4)
Brand: Festo
SKU: 8078233
Price: 10.76 EUR
Availability: InStock

Successor to 8066667, 541344, 158962

Festo names this article as the successor.

Availability:

Shipping:

Free shipping·No minimum order value|

Found it cheaper elsewhere? Send us the offer as a link or PDF, we usually match it.

Packaging Unit:

1 piece

Quantity

or pay directly

We accept

Invoice

Prepayment

Support

Advice on selection, alternatives and availability

EmailCall WhatsApp

Mon - Fri from 8:00 AM - 6:00 PM

+49 39203 863988 (German & English)sales@partbase.com (all languages)

Featured in

Also via

Features for 8078233 from Festo

Conforms to standard: EN 61076-2-104EN 61984
Approval: c UL us - Listed (OL)
Intended use: The connecting cable connects field devices (sensors, actuators) to controllers.
Explosion protection: Observe the note in the certificateZone 2 (ATEX)Zone 22 (ATEX)
Certificate issuing body: UL E253748
Cable designation: without label holder
Connection frequency: 100
Application note: Meets the requirements of IEC 61010-1 and 61010-2-202, in particular for electrically operated Festo valves.Only energy-limited circuits with a maximum current of 4 A and a maximum open-circuit voltage of 30 V DC are permitted for supplying electrically actuated Festo valves.
Electrical connection 1, function: Field device side
Electrical connection 1, design: round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable exit: angled
Electrical connection 1, connection technology: M8x1 A-coded to EN 61076-2-104
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, assigned pins/wires: 4
Electrical connection 1, mounting type: Screw-type locking with hexagon SW9 and longitudinal knurlrotatable
Electrical connection 1, compatible mounting type: Compatible with screw-type locking, rotatable/not rotatable
Electrical connection 1, connection pattern: 00991872
Electrical connection 1, pin allocation: Pin 1 = BNPin 2 = WHPin 3 = BUPin 4 = BK
Electrical connection 1, display: without
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: open end
Electrical connection 2, number of pins/wires: 4
Electrical connection 2, assigned pins/wires: 4
Electrical connection 2, pin allocation: Pin 1 = BNPin 2 = WHPin 3 = BUPin 4 = BK
Electrical connection 2, display: without
Operating voltage range DC: 0 V ... 60 V
Note on operating voltage range DC: 0 - 30 V for UL applicationsNEC/CEC CLASS 2
Operating voltage range AC: 0 V ... 48 V
Note on operating voltage range AC: 0 - 30 V for UL applicationsNEC/CEC CLASS 2
Current carrying capacity at 40 °C: 4 A
Note on current carrying capacity at 40 °C: Observe derating
Surge voltage resistance: 1.5 kV
Cable length: 2.5 m
Cable property: suitable for energy chains/robotsabrasion-resistantlow adhesionflame-retardant and self-extinguishing
Cable test conditions: Test conditions on requestTorsional strength: > 300,000 cycles, ±270°/0.1 mFlex fatigue strength: >50000 cycles, bending radius 5 mmEnergy chain: > 5 million cycles, bending radius 28 mm
Note on cable test conditions: tested at 23 °C
Bending radius, fixed cable installation: 14 mm
Bending radius, flexible cable installation: 46 mm
Cable diameter: 4.5 mm
Cable structure: 4 x 0,25 mm²
Nominal conductor cross section: 0.25 mm²
Wire ends: strippedcut off square
Degree of protection: IP65IP68IP69K
Note on degree of protection: in assembled state
Special features: UV-resistanthydrolysis-resistantresistant to cooling lubricantsmicrobe-resistantoil-resistantozone-resistant
Outdoor use: locations with direct outdoor climatic exposure class D1 based on IEC 60654-1
Ambient temperature: -40 °C ... 85 °C
Note on ambient temperature: -40 - 50 °C for UL applications
Ambient temperature with flexible cable installation: -20 °C ... 85 °C
Note on ambient temperature with flexible cable installation: -20 - 50 °C for UL applications
Storage temperature: -25 °C ... 55 °C
Note on storage temperature: briefly for transport in packaging -40 ... 85 °C
Relative humidity: max. 93% at 40 °C
Nominal operating altitude: <= 2000 m NHN
Overvoltage category: II
CE mark (see declaration of conformity): to EU RoHS Directive
UKCA mark (see declaration of conformity): to UK RoHS regulations
LABS conformity: VDMA24364-B2-L
Suitability for production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14: Class 4 to ISO 14644-1
Materials note: CFC-freeRoHS-compliantcadmium-freehalogen-freephosphate-ester-free
Pollution degree: 3
Note on pollution degree: in assembled state
Corrosion resistance class CRC: 1 - low corrosion stress
Cable sheath material: TPE-U(PUR)
Cable sheath colour: grey
Housing material: TPE-U(PUR)
Housing colour: black
Screw lock material: Die-cast zinc, nickel-plated
Seal material: FPM
Plug contact material: Copper alloy, gold-plated
Insulating sleeve material: PP

Documents

Documentation 8078233
Download
Datasheet 8078233
Download
CAD data 8078233
Download

Further information for 8078233 from Festo

Article authenticity: Original article
Article condition: New
Single weight: 66 g
Dimensions (L x W x H): not available
Country of origin**: On request
Customs goods number: 85444290
GTIN: 4052568625894
RoHS compliant: On request
Manufacturer: Festo
