New & Original

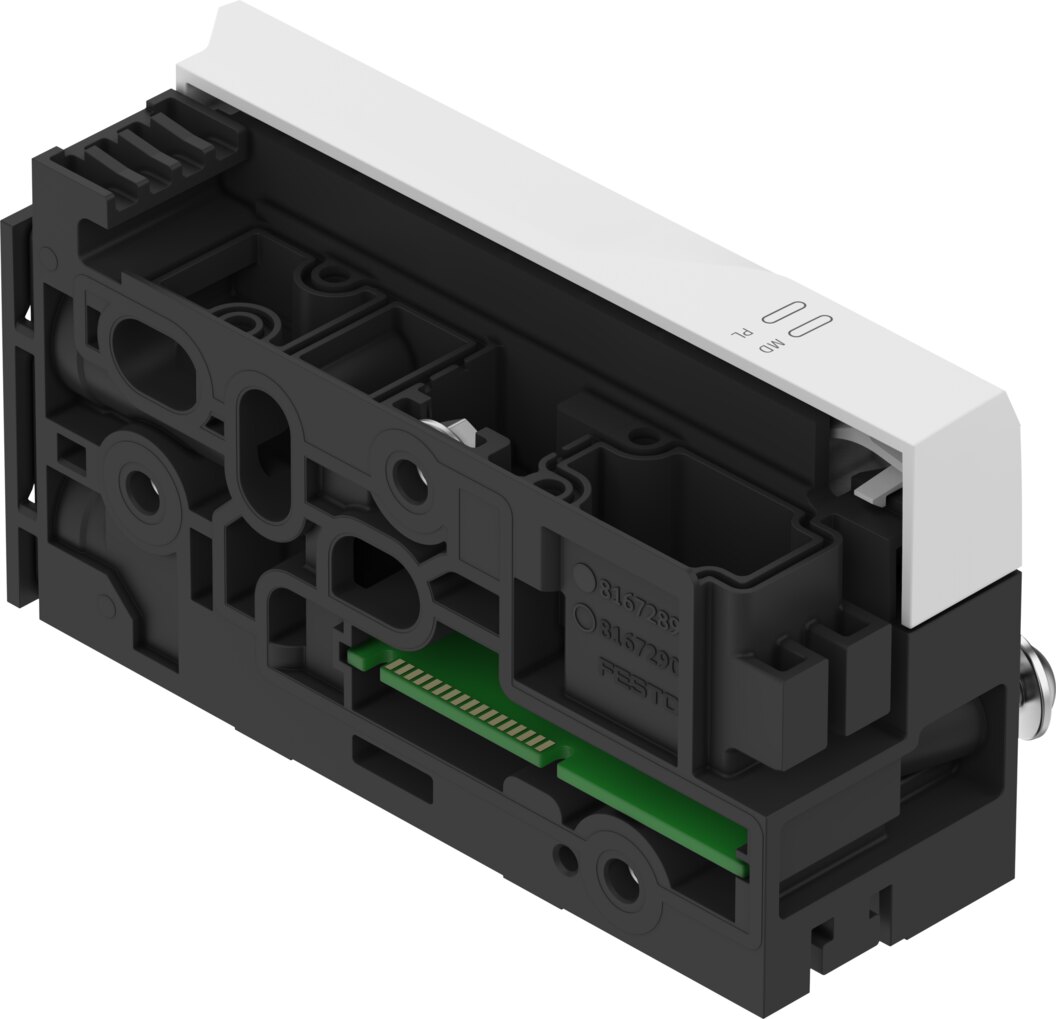

Symbol image
Festo Interlinking plateManufacturer type key:
Price & Availability
Availability:
Shipping:
Free shipping·No minimum order value|
Free shipping·No minimum order value|
Found it cheaper elsewhere? Send us the offer as a link or PDF, we usually match it.
Packaging Unit:
1 piece
1 piece
or pay directly
We accept
Invoice
Prepayment
We also supplyView range
Fittings & hoses
Threaded fittings, couplings, valves and hoses in brass, stainless steel and plastic.
Support
Advice on selection, alternatives and availability
Mon - Fri from 8:00 AM - 6:00 PM
+49 39203 863988 (German & English)sales@partbase.com (all languages)
Featured in
Also via
Features for 8189594 from Festo
- Size
- 12
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Connection position
- lateral
- Reverse polarity protection
- ja
- Diagnostics via LED
- Diagnostics per moduleLoad voltage supply
- Diagnostics via internal communication
- Overvoltage electronics/sensorsUndervoltage electronics/sensors
- Valve terminal design
- Valve sizes can be mixed
- Maximum number of valve coils
- 32
- Module parameters
- Configuration of voltage monitoring, load supply PLBehaviour in fault state
- Compatible with
- Valve terminal VTUX-A-P
- Dimensions W x L x H
- 35,2 mm x 117,2 mm x 56,1 mm
- Protection (short circuit)
- internal electronic fuse per channel
- Inductive protective circuit
- built-in
- Intrinsic current consumption at nominal operating voltage of electronics/sensors
- typically 27 mA
- Intrinsic current consumption at nominal operating voltage of load
- typically 13 mA
- Note on operating voltage
- SELV/PELV power supplies requiredObserve voltage drop
- Power consumption at 24 VDC
- 0.65 W
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC for load
- 24 V
- Mains failure bridging
- 10 ms
- Electrical isolation of outputs, channel to internal communication
- ja
- Electrical isolation between supply voltages of electronics/sensors and load/valves
- ja
- Protocol
- AP
- Pollution degree
- 2
- Permissible voltage fluctuations of electronics/sensors
- ± 25 %
- Permissible voltage fluctuations of load
- ± 10 %
- Power supply, function
- Electronics/sensors and load incoming
- Voltage forwarding, function
- Electronics/sensors and load outgoing
- Undervoltage load/valves (diagnostic message)
- 21.1 V
- Approval
- RCM mark
- KC mark
- KC-EMV
- CE mark (see declaration of conformity)
- to EU EMC Directiveto EU RoHS Directive
- UKCA mark (see declaration of conformity)
- to UK EMC regulationsto UK RoHS regulations
- Corrosion resistance class CRC
- 2 - moderate corrosion stress
- LABS conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C ... 70 °C
- Relative humidity
- 5 - 95 %
- Protection against direct and indirect contact
- PELVSELV
- Degree of protection
- IP65
- Overvoltage category
- II
- Ambient temperature
- -20 °C ... 50 °C
- Nominal operating altitude
- <= 2000 m NHN
- Max. installation altitude
- 3500 m
- Max. tightening torque for wall mounting
- 6 Nm
- Electrical control
- AP interface
- Maximum address volume of outputs
- 4 bytes
- Communication interface, protocol
- AP
- Connecting plate mounting type
- with through hole
- Mounting type
- with through hole for screw M5
- Pneumatic connection 1
- for cartridge 15 mm
- Pneumatic connection 5
- for cartridge 15 mm
- Materials note
- RoHS-compliant
- Connecting plate material
- PA-reinforced
- Cover material
- PA-reinforced
- Seal material
- NBR
- Sleeve material
- High-alloy stainless steel
- Clip material
- High-alloy stainless steel
- Nut material
- High-alloy stainless steel
- Documents
- Documentation 8189594
- Documentation 8189594
- Datasheet 8189594
- Reliability Datasheet 8189594
- CAD data 8189594
Further information for 8189594 from Festo
- Article authenticity
- Original article
- Article condition
- New
- Single weight
- 126,7 g
- Dimensions (L x W x H)
- not available
- Country of origin**
- On request
- Customs goods number
- 84819000
- GTIN
- 4052568638528
- RoHS compliant
- Yes
- Manufacturer
- Festo
