SKF Spare O-ring set for Hydraulic nut (all versions)

Name: SKF Spare O-ring set for Hydraulic nut (all versions) HMV 98/233983
Brand: SKF
SKU: HMV 98/233983
Price: 134.95 EUR
Availability: InStock

Availability:

Shipping:

Flat rate 14 € netwithin Germany|

Found it cheaper elsewhere? Send us the offer as a link or PDF, we usually match it.

Packaging Unit:

1 piece

Quantity

or pay directly

We accept

Invoice

Prepayment

Support

Advice on selection, alternatives and availability

EmailCall WhatsApp

Mon - Fri from 8:00 AM - 6:00 PM

+49 39203 863988 (German & English)sales@partbase.com (all languages)

Featured in

Also via

Features for HMV 98/233983 from SKF

eClass code: 23-05-19-01
UNSPSC code: 73152101
Category: Spare parts, accessories for hydraulic tools
Remanufacturable: No

Documents

Datasheet HMV 98/233983
Download

Manufacturer article description

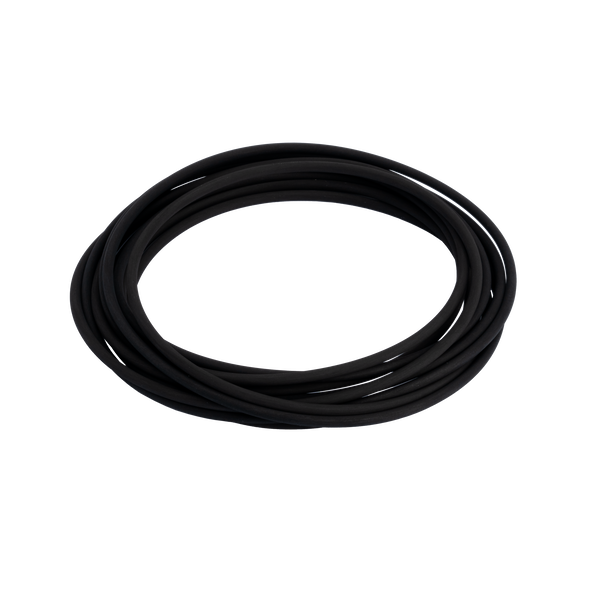

The SKF HMV 98/233983 spare part is an O-ring replacement set, consisting of one O-ring to seal the inner surface of the piston and one O-ring to seal the outer surface of the piston of the HMV nut. Suitable for hydraulic nut size 98: HMV 98E and HMVC 98E.

Further information for HMV 98/233983 from SKF

Article authenticity: Original article
Article condition: New
Single weight: 34 g
Dimensions (L x W x H): not available
Country of origin**: On request
Customs goods number: 40169300
GTIN: On request
RoHS compliant: On request
Manufacturer: SKF

*:Delivery times are not binding and subject to change.

**:The origin information of the products is for orientation only. The actual origin may differ. This does not guarantee any benefits related to import advantages or availability from certain countries.

***:All product specifications, technical data and images are provided without warranty. Product images sometimes serve as symbolic images and may differ from the actual item.

Additional Products for SKF HMV 98/233983

SKF

HMV 98E

Hydraulic nut for mounting and dismounting bearings

Series Comparison for SKF Produkt-Series

Product	Details	Benefit	Category	Connecting thread	Country of origin (COM code)	eClass code	Maximum piston misalignment	Maximum pressure	Maximum pressure (MPa)	Outside diameter	Outside diameter (D)	Piston area	Piston inside diameter	Piston inside diameter (d<sub>1</sub>)	Piston outside diameter	Piston outside diameter (d<sub>2</sub>)	Piston width	Piston width (B<sub>1</sub>)	Remanufacturable	Structure group	Thread form	Type	UNSPSC code	Width	Width (B)
SKF HMV 98E	Hydraulic nut for mounting and dismounting bearings	Quick-connect coupling can be attached to the end face or side face of the nut	Hydraulic nuts	Tr 490x5	18 - Germany	23-05-19-01	19 mm	400 bar	40 MPa	624 mm	624 mm	49500 mm²	492 mm	492 mm	597 mm	597 mm	12 mm	12 mm	No	StructureGroup_1615579624950030	ISO 2901-1977 tolerance class 7H	Metric thread:	73152101	66 mm	66 mm
