New & Original

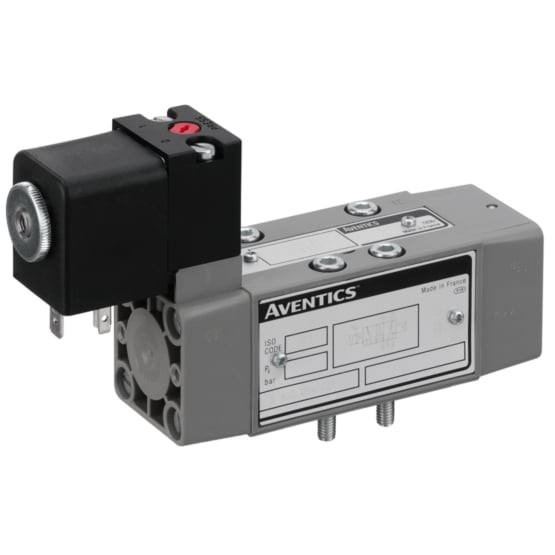

Aventics 0820024006 5/2-way valve Series IS12, Size 1 0820024006
Price & Availability
149,74 €
excl. VAT
|178,19 € incl. VAT
Packaging Unit:
1 piece
1 piece
Availability:
Shipping Area:
entire EU|
entire EU|
Manufacturer Information
- Manufacturer article name:
- 5/2-way valve Series IS12, Size 1 0820024006Click to copy
- Manufacturer article number:
- 0820024006Click to copy
- Manufacturer type key:
- ED 5/2 ISO1 24V MONOClick to copy
We accept
Invoice
Prepayment
Support
How can we help?
Features for 0820024006 from Aventics
- Actuation
- electric
- Rated flow Qn
- 1060 l/min
- Switching principle
- 5/2
- Compressed air outlet
- Base plate ISO 5599-1
- Operating pressure min.
- 2 bar
- Maximum operating pressure
- 10 bar
- Operating voltage DC
- 24 V
- Voltage tolerance DC
- -10% / +10%
- Manual auxiliary operation
- Notched
- Electrical connection type
- Plug
- Electrical connection size
- EN 175301-803, Form A
- Actuation function
- Single-sided actuated
- Sealing principle
- soft sealing
- Pre-control
- internal
- Standards
- ISO 5599-1
- Pilot valve
- 30 mm
- Valve type
- Slide valve, without overlap
- Blocking principle
- Base plate principle single
- Type of connection
- Plate connection
- Provision
- With air spring return
- Compressed air connection inlet
- Base plate ISO 5599-1
- Compressed air connection, venting
- Base plate ISO 5599-1
- Compressed air connection, pilot control input
- Base plate ISO 5599-1
- Compressed air connection, pre-control, venting
- Base plate ISO 5599-1
- DC power consumption
- 2.7 W
- Documents
- Datasheet DE 0820024006
- Datasheet EN 0820024006
- Datasheet FR 0820024006
- Datasheet ES 0820024006
- Datasheet IT 0820024006
- Datasheet PT 0820024006
Further information for 0820024006 from Aventics
- Article authenticity
- Original article
- Article condition
- New
- Single weight
- 396 g
- Dimensions (L x W x H)
- 165 cm x 85 cm x 45 cm
- Country of origin**
- FR🇫🇷
- Customs goods number
- 84812090
- GTIN
- 3661475859028
- RoHS compliant
- On request
- Manufacturer
- Aventics
Spare Parts Finder
Find spare parts for Aventics 0820024006Note: Not all products from Aventics have spare parts available.
Access to the official manufacturer catalog for compatible spare parts and repair kits.
*:Delivery times are not binding and subject to change.
**:The origin information of the products is for orientation only. The actual origin may differ. This does not guarantee any benefits related to import advantages or availability from certain countries.
***:All product specifications, technical data and images are provided without warranty. Product images sometimes serve as symbolic images and may differ from the actual item.
