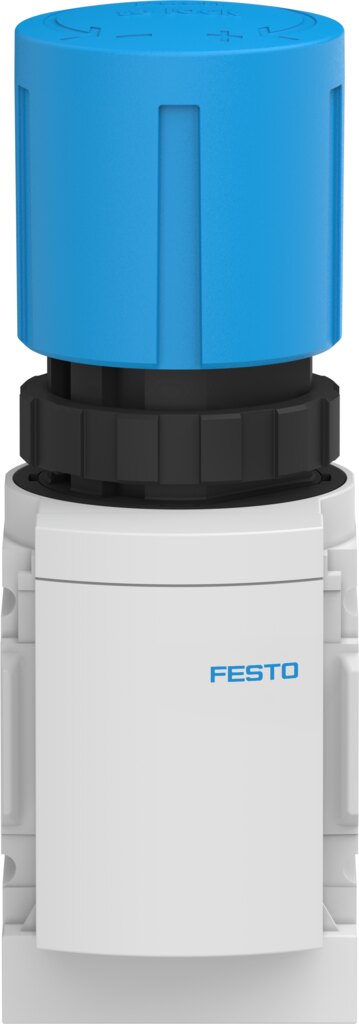

Festo 8190232 Pressure regulator - Bild 2

Festo 8190232 Pressure regulator - Bild 3

Symbol image

Featured in

Also via

Festo Pressure regulatorManufacturer type key:

Name: Festo Pressure regulator 8190232 (MS4-LR-1/8-D5-VS-OS)
Brand: Festo
SKU: 8190232
Price: 40.33 EUR
Availability: InStock

Availability:

Shipping:

Free shipping·No minimum order value|

Found it cheaper elsewhere? Send us the offer as a link or PDF, we usually match it.

Packaging Unit:

1 piece

Quantity

or pay directly

We accept

Invoice

Prepayment

We also supplyView range

Fittings & hoses

Threaded fittings, couplings, valves and hoses in brass, stainless steel and plastic.

Support

Advice on selection, alternatives and availability

EmailCall WhatsApp

Mon - Fri from 8:00 AM - 6:00 PM

+49 39203 863988 (German & English)sales@partbase.com (all languages)

Featured in

Also via

Features for 8190232 from Festo

Size: 4
Series: MS
Actuation lock: Rotary knob with locking
Mounting position: any
Construction: direct-actuated diaphragm control valve
Regulator function: Output pressure constantwith secondary exhaustwith backflow characteristics
Symbol: 00991559
Operating pressure: 0.08 MPa ... 1.4 MPa
Operating pressure: 0.8 bar ... 14 bar
Pressure regulation range: 0.3 bar ... 4 bar
Max. pressure hysteresis: 0.025 MPa
Max. pressure hysteresis: 0.25 bar
Max. pressure hysteresis: 3.625 psi
Standard nominal flow rate (standardised to DIN 1343): 1200 l/min
Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
Note on operating/pilot medium: Lubricated operation possible (subsequently required for further operation)
Corrosion resistance class CRC: 2 - moderate corrosion stress
LABS conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C ... 60 °C
Suitability for food: see extended material information
Medium temperature: -10 °C ... 60 °C
Ambient temperature: -10 °C ... 60 °C
Mounting type: with accessories
Pneumatic connection 1: G1/8
Pneumatic connection 2: G1/8
Materials note: RoHS-compliant
Connecting plate material: Die-cast aluminium
Control unit material: PAPOM
Seal material: NBR
Housing material: Die-cast aluminium
Diaphragm material: NBR

Documents

Documentation 8190232
Download
Datasheet 8190232
Download
Reliability Datasheet 8190232
Download
CAD data 8190232
Download

Manufacturer article description

All compressed air preparation functions: pressure regulating, on-off, filter regulating and pressure build-up valves with safety function, filters, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors. The right solution for every task. In sizes 4, 6, 9 and 12.

Further information for 8190232 from Festo

Article authenticity: Original article
Article condition: New
Single weight: 225 g
Dimensions (L x W x H): not available
Country of origin**: On request
Customs goods number: 84811099
GTIN: 4052568635350
RoHS compliant: Yes
Manufacturer: Festo
