New & Original

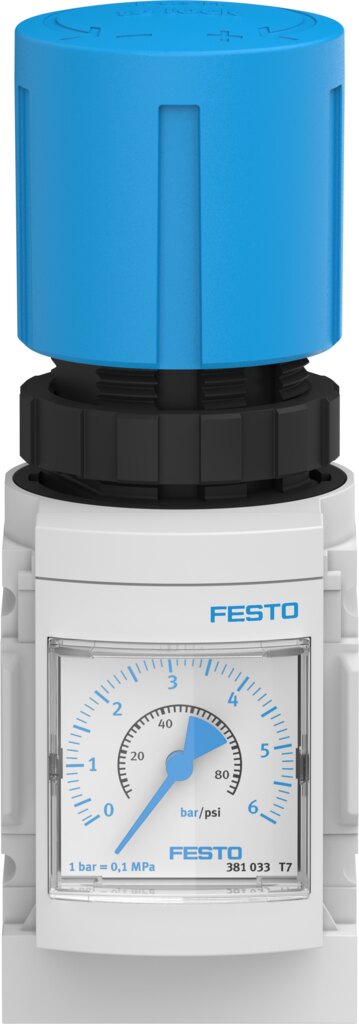

Symbol image
Festo Pressure regulatorManufacturer type key:
Price & Availability
Availability:
Shipping:
Free shipping·No minimum order value|
Free shipping·No minimum order value|
Found it cheaper elsewhere? Send us the offer as a link or PDF, we usually match it.
Packaging Unit:
1 piece
1 piece
or pay directly
We accept
Invoice
Prepayment
We also supplyView range
Fittings & hoses
Threaded fittings, couplings, valves and hoses in brass, stainless steel and plastic.
Support
Advice on selection, alternatives and availability
Mon - Fri from 8:00 AM - 6:00 PM
+49 39203 863988 (German & English)sales@partbase.com (all languages)
Featured in
Also via
Features for 8190234 from Festo
- Size
- 4
- Series
- MS
- Actuation lock
- Rotary knob with locking
- Mounting position
- any
- Construction
- direct-actuated diaphragm control valve
- Regulator function
- Output pressure constantwith secondary exhaustwith backflow characteristics
- Symbol
- 00991558
- Pressure indicator
- with pressure gauge
- Operating pressure
- 0.08 MPa ... 1.4 MPa
- Operating pressure
- 0.8 bar ... 14 bar
- Pressure regulation range
- 0.3 bar ... 7 bar
- Max. pressure hysteresis
- 0.025 MPa
- Max. pressure hysteresis
- 0.25 bar
- Max. pressure hysteresis
- 3.625 psi
- Standard nominal flow rate (standardised to DIN 1343)
- 1150 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
- Note on operating/pilot medium
- Lubricated operation possible (subsequently required for further operation)
- Corrosion resistance class CRC
- 2 - moderate corrosion stress
- LABS conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C ... 60 °C
- Suitability for food
- see extended material information
- Medium temperature
- -10 °C ... 60 °C
- Ambient temperature
- -10 °C ... 60 °C
- Mounting type
- with accessories
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Materials note
- RoHS-compliant
- Connecting plate material
- Die-cast aluminium
- Control unit material
- PAPOM
- Seal material
- NBR
- Housing material
- Die-cast aluminium
- Diaphragm material
- NBR
- Documents
- Documentation 8190234
- Datasheet 8190234
- Reliability Datasheet 8190234
- CAD data 8190234
Manufacturer article description
All compressed air preparation functions: pressure regulating, on-off, filter regulating and pressure build-up valves with safety function, filters, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors. The right solution for every task. In sizes 4, 6, 9 and 12.
Further information for 8190234 from Festo
- Article authenticity
- Original article
- Article condition
- New
- Single weight
- 225 g
- Dimensions (L x W x H)
- not available
- Country of origin**
- On request
- Customs goods number
- 84811099
- GTIN
- 4052568635374
- RoHS compliant
- Yes
- Manufacturer
- Festo
